Sanyo RD W266 Service Manual

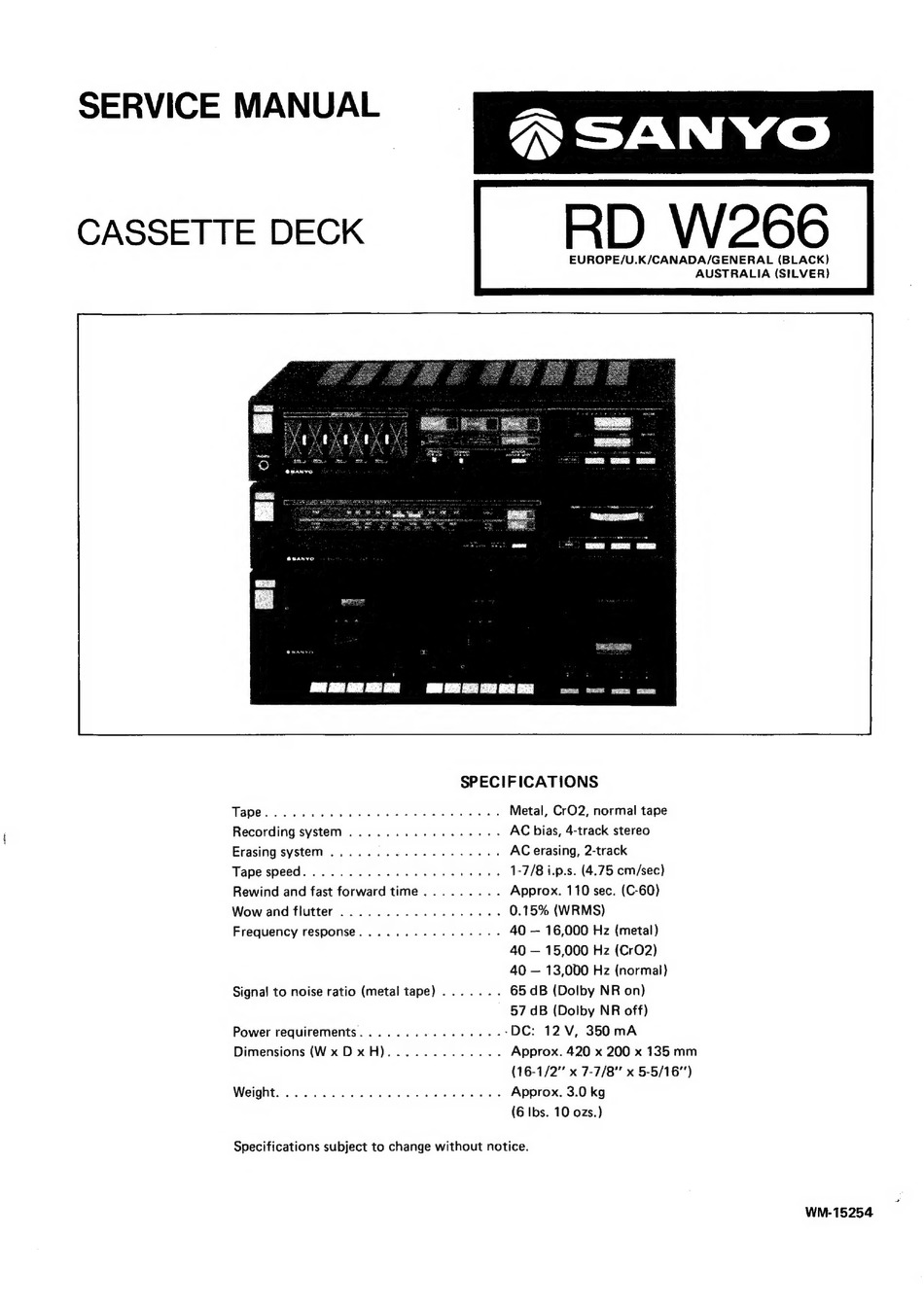

SERVICE MANUAL

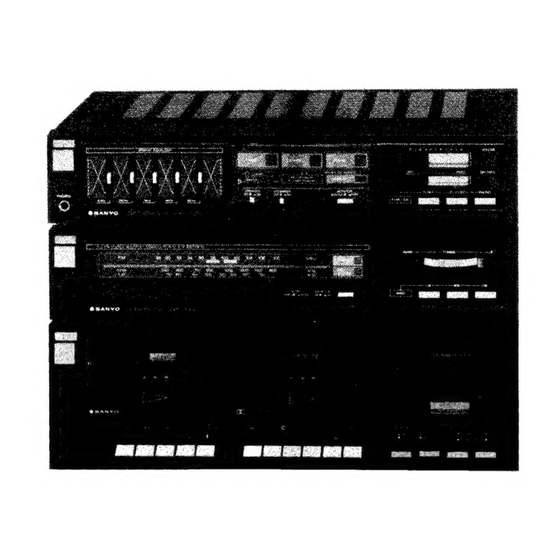

CASSETTE DECK RD W266
EUROPE/U.K/CANADA/GENERAL (BLACK)
AUSTRALIA (SILVER)
SPECIFICATIONS
VAD oor oo tate te asad ae wed a Fe arene Metal, CrO2, normal tape
Recording system ............+0005 AC bias, 4-track stereo
Erasing system .. 1.2... . eee ee eee AC erasing, 2-track
Tape speed. ...........0 0. eee eee 1-7/8 i.p.s. (4.75 cm/sec)
Rewind and fast forward time......... Approx. 110 sec. (C-60)
Wow and flutter ..............000- 0.15% (WRMS)
Frequency response.......--...+--- 40 — 16,000 Hz (metal)
40 — 15,000 Hz (CrO2)
40 — 13,000 Hz (normal)
Signal to noise ratio (metal tape) ....... 65 dB (Dolby NR on)
57 dB (Dolby NR off)
Power requirements.......-2...-0-5.5 -DC: 12 V, 350 mA
Dimensions (Wx DxH)............. Approx. 420 x 200 x 135 mm
(16-1/2" x 7-7/8" x 5-5/16'")
Weight. 2c.003 4h oaox dan cea f Sans Approx. 3.0 kg
(6 Ibs. 10 ozs.)
Specifications subject to change without notice.
WM-15254
