Sanyo JJ-P5 Service Manual

Service Manual
SPECIFICATIONS
Power Source
OG ee ntaes aon een cutee tend 1.5V
Ni-cd battery ..0.0000000000. ooo.
NB-600
or (UM-3, HP 7, AA Cell, Mignonzelle, R 6) x 1
Output Power ....0000..000000..
ccc eee. 5mW x 2 (Max.)
Current Consumption (at Vol. Min.)
Playback mode .......................... 180mA
Fast Forward/Rewind mode............ 300mA
Tape Speed 2.0000...
1-7/8ips. +3%
Fast Forward/Rewind Time .............. 200sec. (with C-60)
Torque
Playback 200000
ccccccc cee eeee 25 ~ 40g-cm
Fast Forward/Rewind ................... More than 45g-cm

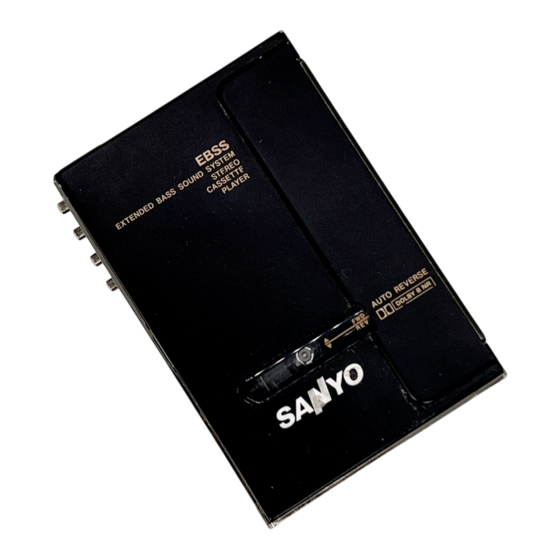

Stereo Cassette Player
JJ-P5 (europe)
PRODUCT CODE No.
142 473 70 (Black)
142 473 71 (White)
142 473 72 (Red)
Wow & Flutter .....0.00000000 ee, 0.6%, RMS
Frequency Response (P/B Dolby OFF)
O20 8 pista iede ts cenmairatectcet seed 63Hz ~ 10,000Hz
EBSS/BRSS Switch: ON (at 63Hz) ..... +17dB +5dB
Signal to Noise Ratio (w/Fe203) ......... More than 42dB
Crosstalk (w/Fe203)
Track to Track ............ ieee ced More than 50dB
Channel Separation (w/Fe203) ......... More than 30dB
Hum & Noise (at Vol. Min.) ................ —70dBs
Terminal Impedance
Headphones ................ 0.0... e eee 8 ~ 1000
Dimensions (Max.) ................ 69.8(W) x 104.5(H) x 18.5(D) mm
Weight (w/o batteries) .................... 138g
REFERENCE No. WM-221 26
