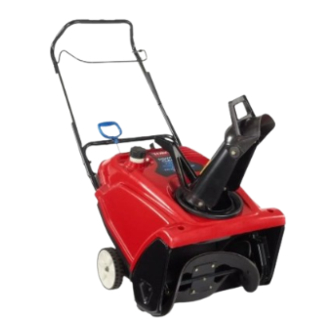

Commercial snowthrower
Hide thumbs Also See for Power Clear 721 R-C:

Advertisement

Quick Links

Power Clear
Model No. 38751-Serial No. 316000001 and Up
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.

Introduction

This machine is intended to be used by residential
homeowners or professional, hired operators. It is
designed for removing snow from paved surfaces,
such as driveways and sidewalks, and other surfaces
on residential or commercial properties. It is not
designed for removing materials other than snow, nor is
it designed for clearing off gravel surfaces.
Read this information carefully to learn how to operate and
maintain your machine properly and to avoid injury and
machine damage. You are responsible for operating the
machine properly and safely.
You may contact Toro directly at www.Toro.com for machine
and accessory information, help finding a dealer, or to register
your machine.
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Service Dealer or Toro
Customer Service and have the model and serial numbers of
your machine ready.
Figure 1
model and serial numbers on the machine. Write the numbers
in the space provided.
© 2015-The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
721 R-C Commercial Snowthrower
identifies the location of the
Register at www.Toro.com.
1. Model and serial number location
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
1. Safety alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
Contents
Introduction .................................................................. 1
Safety ........................................................................... 2
Training ................................................................. 2
Preparation............................................................. 2
Operation............................................................... 2
Clearing a Clogged Discharge Chute .......................... 3
Maintenance and Storage.......................................... 3
Original Instructions (EN)
All Rights Reserved *3396-741* A
Printed in the USA
Form No. 3396-741 Rev A
Operator's Manual
G016241
Figure 1
(Figure
Figure 2
2),

Advertisement

Table of Contents
loading

Summary of Contents for Toro Power Clear 721 R-C

  • Page 1: Table Of Contents

    You are responsible for operating the if you do not follow the recommended precautions. machine properly and safely. You may contact Toro directly at www.Toro.com for machine and accessory information, help finding a dealer, or to register your machine.
  • Page 2: Safety

    • Toro Snowthrower Safety ......... 3 Keep the area of operation clear of all persons, particularly Safety and Instructional Decals ......... 5 small children. Setup ................6 • Exercise caution to avoid slipping or falling. 1 Unfolding the Handle..........6 2 Installing the Discharge Chute ........
  • Page 3: Clearing A Clogged Discharge Chute

    Toro Snowthrower Safety clear snow at too fast a rate. • Look behind and use care when backing up with the The following list contains safety information specific to Toro machine. products or other safety information that you must know. •...
  • Page 4 When storing the machine for more than 30 days, drain the fuel from the fuel tank to prevent a potential hazard. Store fuel in an approved fuel container. Remove the key from the ignition switch before storing the machine. • Purchase only genuine Toro replacement parts and accessories.
  • Page 5: Safety And Instructional Decals

    Safety and Instructional Decals Important: Safety and instructional decals are located near areas of potential danger. Replace damaged decals. 94-2577 1. To engage the rotor blades, hold the control bar against the handle. 2. To disengage the rotor blades, release the control bar. 117-9102 Order part no.
  • Page 6: Setup

    Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Bolt Unfold the handle. Discharge chute Chute handle Install the discharge chute. Phillips head bolts Washers Locknuts Unfolding the Handle Parts needed for this procedure: Bolt Procedure 1.
  • Page 7: Filling The Engine With Oil

    Figure 7 1. Move the machine to a level surface. 2. Clean around the oil-fill cap (Figure Figure 6 Figure 8 1. Oil-fill cap 3. Unscrew the oil-fill cap and remove it. 4. With the machine in the operating position, carefully Filling the Engine with Oil pour oil into the crankcase.
  • Page 8: Adjusting The Control Cable

    Product Overview Adjusting the Control Cable No Parts Required Procedure Refer to Adjusting the Control Cable (page 14). Figure 9 1. Discharge chute 6. Primer 2. Discharge-chute handle 7. Ignition key 3. Fuel-tank cap 8. Choke lever 4. Control bar 9.
  • Page 9: Filling The Fuel Tank

    Filling the Fuel Tank • For best results, use only clean, fresh, unleaded gasoline with an octane rating of 87 or higher ((R+M)/2 rating method). • Oxygenated fuel with up to 10% ethanol or 15% MTBE by volume is acceptable. •...
  • Page 10: Engaging The Rotor Blades

    Figure 13 1. Choke lever Figure 16 Note: If you pull the recoil handle and feel no resistance, the starter may be frozen. Thaw out the starter before attempting to start the machine. 5. While the engine is running, push in the choke lever Figure 14 slowly.
  • Page 11: Disengaging The Rotor Blades

    Disengaging the Rotor Blades To disengage the rotor blades, release the control bar (Figure 18). Figure 20 1. Chute handle 2. Chute deflector handle Clearing a Clogged Discharge Chute Figure 18 Important: Hand contact with the rotating rotor blades inside the discharge chute is the most common cause of injury associated with snowthrowers.
  • Page 12: Operating Tips

    Operating Tips WARNING The rotor blades can throw stones, toys, and other foreign objects and cause serious personal injury to the operator or to bystanders. • Keep the area to be cleared free of all objects that the rotor blades could pick up and throw. •...
  • Page 13: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Check the control cable and adjust it if necessary. After the first hour • Check for loose fasteners and tighten them if necessary. •...
  • Page 14: Adjusting The Control Cable

    Adjusting the Control Cable Note: You can pull up the adjuster link and cable to make unhooking the spring easier. Checking the Control Cable 2. Move the Z-fitting to a higher or lower hole on the adjuster link as needed to obtain the 2 mm to 3 mm Service Interval: After the first hour (1/16-inch to 1/8-inch) gap between the control bar Every 25 hours...
  • Page 15: Inspecting The Rotor Blades

    Inspecting the Rotor Blades 6. Clean around the oil-fill cap (Figure 27). Service Interval: Every 25 hours Yearly Before each session, inspect the rotor blades for wear. When a rotor blade edge has worn down to the wear indicator hole, have an Authorized Service Dealer replace the rotor blades and the scraper (Figure...
  • Page 16: Servicing The Spark Plug

    Servicing the Spark Plug Service Interval: Every 50 hours Yearly Use a NGK BPR6ES or Champion RN9YC spark plug or equivalent. 1. Stop the engine and wait for all moving parts to stop. 2. Rotate the discharge chute so that it faces forward. 3.
  • Page 17 13. Connect the wire to the spark plug. Note: Ensure that the breather tube is routed above the spark plug wire as shown in Figure Figure 33 1. Breather tube 2. Carburetor-drain bolt 14. Remove the fuel-tank cap. Figure 31 15.
  • Page 18: Replacing The Drive Belt

    Replacing the Drive Belt Note: Route the new drive belt first around the engine pulley, then the idler pulley, and finally around the Service Interval: Every 50 hours loose rotor pulley positioned just above the rotor shaft (Figure 34). Yearly 6.
  • Page 19: Storage

    Storage 16. Cover the machine and store it in a clean, dry place out of the reach of children. Allow the engine to cool before storing it in any enclosure. Storing the Snowthrower WARNING • Gasoline fumes are highly flammable, explosive, and dangerous if inhaled.
  • Page 20 Notes:...
  • Page 21 Notes:...
  • Page 22 Such use will not reduce the warranty obligations of The Toro Company. 10. Add-on or modified parts that are not approved by The Toro Company may not be used. The use of a non-approved add-on or modified parts by the purchaser will be grounds for disallowing a warranty claim.
  • Page 23 1. Fuel System Parts • Carburetor and internal parts • Cold starting enrichment (primer or choke) • Fuel pump • Fuel line, fittings, and clamps • Fuel tank, cap, and tether • Carbon canister 2. Air Induction System • Air cleaner •...
  • Page 24 Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company. Australian Consumer Law: Australian customers will find details relating to the Australian Consumer Law either inside the box or at your local Toro Dealer.
