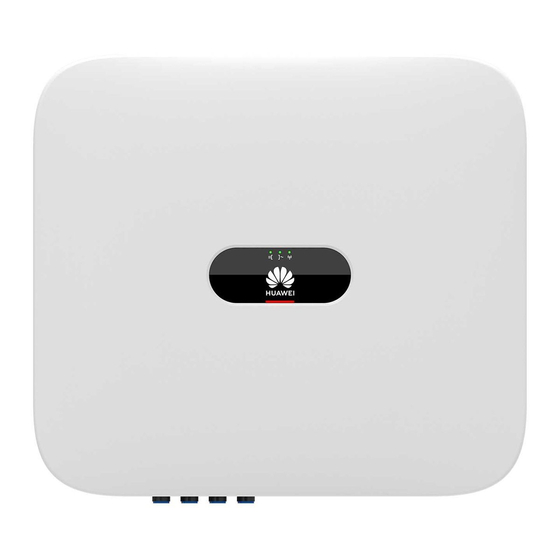

- Page 1 SUN2000-10KTL-BEM1 Quick Guide Issue: 01 Part Number: 31500JKB Date: 2023-07-30 HUAWEI TECHNOLOGIES CO., LTD.
-
Page 2: Product Description
5. Use insulating tools when installing the device. For personal safety, wear proper personal protective equipment (PPE). 6. Huawei shall not be liable for any consequences caused by the violation of the storage, transportation, installation, and operation regulations specified in this document and the user manual. -
Page 3: Installing The Equipment
Installing the Equipment Installation Requirements Angle Space Dimensions Two M6 screw holes are reserved on both left and right sides of the inverter for installing an awning. Installing the Inverter When drilling holes, avoid the water pipes and power cables buried in the wall. - Page 4 1. Install the mounting bracket. • M6x60 expansion bolts are delivered with the inverter. If the length and number of the bolts do not meet installation requirements, prepare M6 stainless steel expansion bolts by yourself. • The expansion bolts delivered with the inverter are used for solid concrete walls. For other types of walls, prepare bolts by yourself and ensure that the wall meets the load bearing requirements of the inverter.
-
Page 5: Electrical Connections
Do not connect loads between the inverter and the AC switch that directly connects to the inverter. Otherwise, the switch may trip by mistake. If an AC switch is used with specifications beyond local standards, regulations, or Huawei's • recommendations, the switch may fail to turn off in a timely manner in case of exceptions, causing serious faults. - Page 6 No. Item Type Specifications AC switch Recommended: three- Rated voltage ≥ 380 V AC phase AC circuit Rated current: breaker • 16 A (3KTL–6KTL) 25 A (8KTL–10KTL) • Installing the PE Cable Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks may occur.
- Page 7 Five-Core Cable (L1, L2, L3, N, and PE) • This section describes how to connect a five-core AC output power cable to an AC connector. A three-core AC output power cable can be connected similarly. The three-core cable (L1, L2, •...
- Page 8 Installing the DC Input Power Cable 1. Ensure that the PV module output is well insulated to ground. 2. Use the Staubli MC4 positive and negative metal terminals and DC connectors supplied with the solar inverter. Using incompatible positive and negative metal terminals and DC connectors may result in serious consequences.
- Page 9 2. Connect DC input power cables. DC input terminals Pull the DC input power cable back to ensure that it is connected securely. Click (Optional) Installing Battery Cables • Use insulated tools when connecting cables. • Connect battery cables with correct polarity. If battery cables are reversely connected, the solar inverter may be damaged.
- Page 10 Installing the Smart Dongle • If FE communication is used, install a WLAN-FE Smart Dongle (SDongleA-05). The WLAN-FE Smart Dongle is delivered with the SUN2000. • If 4G communication is used, install a 4G Smart Dongle (SDongleA-03). You need to purchase the 4G Smart Dongle by yourself.
- Page 11 (Optional) 4G Smart Dongle (4G Communication) • If your Smart Dongle is not equipped with a SIM card, prepare a standard SIM card (size: 25 mm x 15 mm) with the capacity greater than or equal to 64 KB. • Install the SIM card in the arrow direction.
- Page 12 • When the RS485 communications cables of devices such as the Smart Power Sensor and the energy storage device are both connected to the inverter, 485A2 (pin 7), 485B2 (pin 9), and PE (pin 5) are shared. • When the enable signal cable of the energy storage device and the signal cable of the rapid shutdown switch are both connected to the inverter, GND (pin 13) is shared.
- Page 13 Smart Dongle Networking Scenario • In the Smart Dongle networking scenario, the SmartLogger cannot be connected. • The Smart Power Sensor is necessary for export limitation. Select the Smart Power Sensor according to the actual project. • A maximum of 10 devices can be connected to the WLAN-FE and 4G Smart Dongles. The Smart Power Sensors connected to the RS485A2 and RS485B2 ports are not included.
- Page 14 (Optional) Installing the RS485 Communications Cable (Inverter Cascading) 1. Connect the signal cable to the signal cable connector. 2. Connect the signal cable connector to the communication port. Communications port (COM)
- Page 15 (Optional) Installing the RS485 Communications Cable (Only Smart Power Sensor Connected) 1. Connect the signal cable to the signal cable connector. 2. Connect the signal cable connector to the communication port. Communications port (COM)
- Page 16 (Optional) Installing the RS485 Communications Cable (Smart Power Sensor and Energy Storage Device Connected) 1. Connect the signal cable to the signal cable connector. 2. Connect the signal cable connector to the Communication port. Communications port (COM)
- Page 17 (Optional) Installing the Grid Scheduling Dry Contact Signal Cable 1. Connect the signal cable to the signal cable connector. 2. Connect the signal cable connector to the Communication port. Communications port (COM)
- Page 18 (Optional) Installing Signal Cables for a Smart Backup Box 1. Connect the signal cable to the signal cable connector. 2. Connect the signal cable connector to the Communication port. Communications port (COM)
-
Page 19: Verifying Installation
Verifying Installation Acceptance Criteria The inverter is installed correctly and securely. Cables are routed properly as required by the customer. The Smart Dongle is installed correctly and securely. Cable ties are evenly distributed and no burr exists. The PE cable is connected correctly, securely, and reliably. The DC switch and all the switches connected to the inverter are set to the OFF position. - Page 20 6. Observe the LEDs to check the operating status of the inverter. Type Status (Blinking at long intervals: On Meaning for 1s and then Off for 1s; Blinking at short Intervals: On for 0.2s and then Off for 0.2s) Running indication Steady green Steady green...
- Page 21 7. (Optional) Observe the LED to check the operating status of the Smart Dongle. WLAN-FE Smart Dongle Description Color Status Yellow (blinking Steady on The Dongle is secured and green and red powered on. simultaneously) Blinking at short The parameters for connecting intervals (on for 0.2s to the router are to be set.
- Page 22 Downloading the App Method 1: Search for FusionSolar on Huawei AppGallery and download the latest installation package. Method 2: Access https://solar.huawei.com using the mobile phone browser and download the latest installation package. Method 3: Scan the following QR code and download the latest installation package.
- Page 23 To create multiple Installer installer accounts for a company, log in to the FusionSolar app and tap Add user to create an installer account. Creating a PV Plant and a Plant Owner In the quick settings, the grid • code is set to N/A by default (automatic startup is not supported).
- Page 24 PV plant as prompted. 2. Log in to https://intl.fusionsolar.huawei.com to access the WebUI of the FusionSolar Smart PV Management System. On the Home page, click the plant name to go to the plant page.
- Page 25 Scenario 2: Setting on the Solar Inverter Side (Solar Inverter Not Connected to the Management System) 1. If the solar inverter is not connected to the FusionSolar Smart PV Management System, access the Device commissioning screen (Refer to 7.1 Device Commissioning.) on the FusionSolar app to set the physical layout of Smart PV Optimizers.
- Page 26 Charge from grid, Control mode (Fully fed to grid, TOU(Time-of-use), Maximum self-consumption), and so on. SmartLogger Networking Scenario PV Plants Connecting to Huawei Hosting Cloud Quick For details, see the Guide (Inverters + SmartLogger3000 + RS485 Networking) . You can scan the QR codes to obtain the documents.
-
Page 27: Installation Video
2. Connect to the solar inverter WLAN and log in as installer to access the device commissioning screen. Resetting the Password 1. Ensure that the SUN2000 connects to the AC and DC power supplies at the same time. Indicators are steady green or blinking slowly for more than 3 minutes. 2. -
Page 28: Customer Service Contact
Customer Service Contact Region Country Phone Service Support Email France Germany Spain eu_inverter_support@huawei.com 0080033888888 Europe Italy Netherlands Other countries For details, see solar.huawei.com. Australia eu_inverter_support@huawei.com 1800046639 Turkey eu_inverter_support@huawei.com 0080021686868 Malaysia /1800220036 (+66) 26542662 (charged apsupport@huawei.com Asia Pacific by local call) Thailand... - Page 29 Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian, Longgang Shenzhen 518129 People's Republic of China solar.huawei.com...
