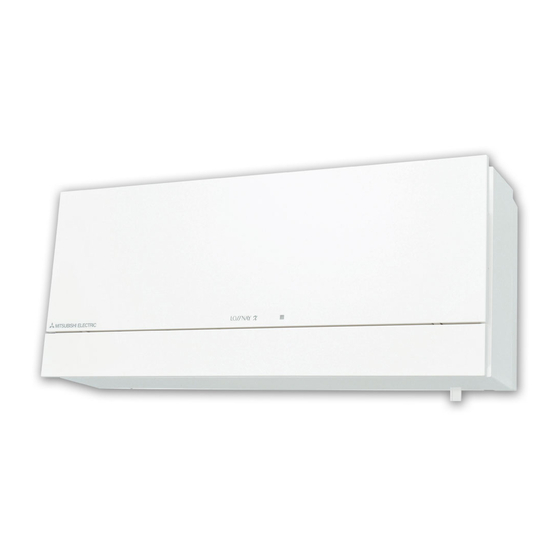

Mitsubishi Electric VL-100U5-E Operating Instructions Manual
Mitsubishi lossnay ventilator
Hide thumbs
Also See for VL-100U5-E:
- Handbook (24 pages) ,
- Installation manual (10 pages) ,
- Operating instructions manual (10 pages)
Related Manuals for Mitsubishi Electric VL-100U5-E
Summary of Contents for Mitsubishi Electric VL-100U5-E
- Page 1 2109875HF7604 Mitsubishi Lossnay Ventilator MODEL: VL-100U (pull cord Type) VL-100EU (wall switch Type) Operating Instructions...
-
Page 2: Table Of Contents
Mitsubishi Lossnay Ventilator MODEL: VL-100U (pull cord Type) VL-100EU (wall switch Type) Operating Instructions For Customer Please read these instructions thoroughly to ensure safe and Contents Page proper use. Safety precautions .....1 When using the unit ....3 Before proceeding with operation, please be sure to read Features ........4 “Safety precautions”, as it will tell you how to operate the Names of parts ......4... - Page 3 - Immediately halt use in the event - Wear gloves when maintaining the of malfunction or breakdown. unit. - Continued use of the Lossnay could - Failure to wear gloves could result result in smoke, fire, electric shock in injury. or injury.
-
Page 4: When Using The Unit
When using the unit ■ When running in winter, the Lossnay - Do not obstruct the panel. - Proper ventilation may be impeded. transfers the heat of indoor air to the cold outdoor air as it brings outside - Do not pull the cord diagonally (VL-100U air in. -
Page 5: Features
Features Names of parts The Lossnay ventilator, from Mitsubishi Lossnay Core Louver Panel Exhaust air filter (Heat exchanger) Running the Lossnay Core handle The Lossnay moves dirty indoor air outside (exhausting it) and brings clean air from the outside in (providing air supply). When it supplies air, it brings outside air close to room temperature (functioning as a heat exchanger). -
Page 6: Operation
Operation Note If cold air is blowing on you - In the following cases, stop the Lossnay If cold air is blowing directly on you, flip the louver and manually move the shutter knob to the toward you to change the direction of air flow from leftmost position (the closed position) to vertical to horizontal.(Move manually.) close the shutter. -
Page 7: Maintenance
Maintenance 3. Remove the Lossnay Core. To maximize the life of the Lossnay, clean off any accumulated dirt and dust on the exhaust air Press the prong of the Lossnay Core's handle filter and outside air filter at least once every six and pull the handle toward you to remove the core. - Page 8 Note Note - Do not wash the filter as below, otherwise - Do not expose the Lossnay Core to water, it can be distorted. chemicals, or volatile solutions. - Do not wash the filter with hot water. - Do not expose the Lossnay Core close to - Do not wash the filter by rubbing or open flames.
-
Page 9: Troubleshooting
3. Close the panel. Cleaning the panel/main unit Swing the panel closed until you hear a click. If the panel or main unit becomes dirty, wipe it 4. Turn on the circuit breaker or, for the VL- with a well-wrung cloth soaked in a solution of 100U -E, plug the power plug into the wall neutral detergent and lukewarm water (40°C or... -
Page 10: Specifications
Specifications Power Temperature Supply Frequency Air volume Noise Weight Model Notch consumption exchange efficiency voltage (V) (Hz) /hr) (dB) (kg) 36.5 VL-100U VL-100EU * Noise values may be higher than those listed depending on the structure of the room. After-sales servicing Consult with your dealer about the after-sales - If you hear strange sounds, if no air is blown out or services provided for this Lossnay product. - Page 11 TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN...
