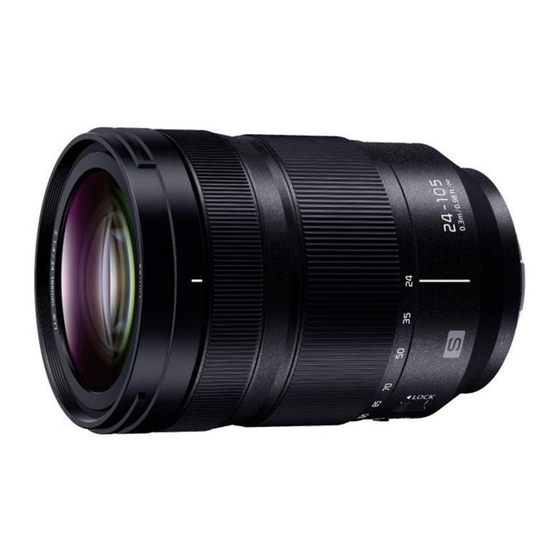

Panasonic S-R24105MGK Service Manual

Interchangeable lens for digital camera

Download this manual

Please use this Supplement Service Manual together with the following Service Manuals. * Model No. S-R24105E/PP/GC/GK :

Order No.DSC1903005CE and Order No.DSC2003506SE

Interchangeable Lens for Digital Camera

Model No.

distribution is a violation of law.

Order No.DSC2111008AE

S-R24105MGK

B26

Page 1 Interchangeable Lens for Digital Camera S-R24105MGK Model No. Please use this Supplement Service Manual together with the following Service Manuals. * Model No. S-R24105E/PP/GC/GK : Order No.DSC1903005CE and Order No.DSC2003506SE © Panasonic Corporation 2021 Unauthorized copying and distribution is a violation of law.
Page 2 Table of Contents Page Page 1. Introduction............... 3 2.1. Mechanical Section............... 4 2. Replacement Parts List............ 4 2.2. Packing and Accessories Section........4...
Page 3 1 Introduction • The purpose of issuing this Service Manual is that to introduce the following newly added model S-R24105MGK. • This Service Manual contains technical information which will help service personnel to understand and service the Interchangeable Lens for Digital Camera Model; S-R24105MGK.
Page 4: Replacement Parts List
2 Replacement Parts List 2.1 Mechanical Section The parts of the lens body are all same of the S-R24105 series. 2.2 Packing and Accessories Section Ref.No. Part No. Part Name & Description Remarks 101 1GE1Z276Z LENS CAP 102 RGE1Z276Z LENS REAR CAP 104 1ZE4SR24105Z LENS HOOD 105 DVQX1714Z OPERATING INSTRUCTIONS...
Page 5 [ Exploded View ] - 5 -...
