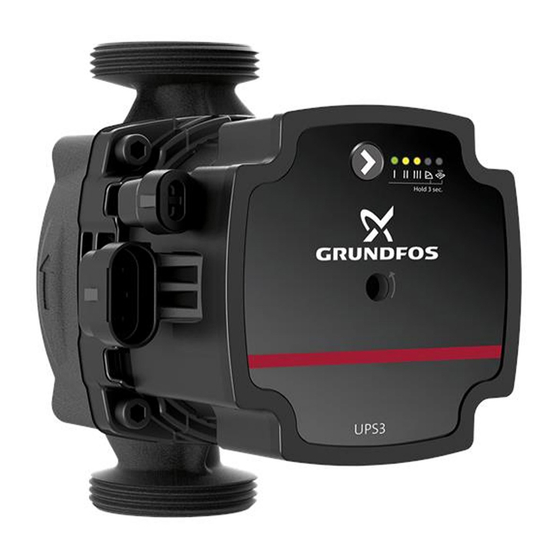

Grundfos UPS3 Instructions Manual
Hide thumbs
Also See for UPS3:
- Installation and operating instructions manual (24 pages) ,
- Instructions manual (21 pages) ,
- Instructions manual (21 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Grundfos UPS3
Summary of Contents for Grundfos UPS3
- Page 1 GRUNDFOS INSTRUCTIONS UPS3...
- Page 2 GB: Warning This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 3 Min. / Max. +2 °C / +95 °C Max. 1.0 MPa (10 bar) Max. 95 % RH IPX4D Max. 2000 m...
- Page 4 Max. 50 % Glycol Max. 10 mm ² /s Viscosity Min. / Max. 75 °C 95°C 0 °C / +55 °C 0.005 MPa 0.05 MPa < 32 dB(A) 0.05 bar 0.5 bar...
- Page 9 1/On 0/Off...
- Page 10 42 mm × 3 32 mm 8 mm 0.5 – 1.5 mm Ø 5.5 – 10 mm × 3...
- Page 11 INTERNALLY EXTERNALLY CONTROLLED PWM A PROFILE CONTROLLED 1 × 230 V -15 %/+10 % ∽ 50/60 Hz 1 × 230 V -15 %/+10 % ∽ 50/60 Hz...
- Page 12 1 × 230 V -15 %/+10 % ∽ 50/60 Hz...
- Page 14 CO N T RO L M O D E S E T T I N G S PP 1 CONSTANT CURVE 1 PP 2 CONSTANT CURVE 2 3 s. CP 1 CONSTANT CURVE 3 CP 2 PWM A PROFILE...
- Page 15 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4 3.6 Q [m³/h]...
-
Page 16: Alarm Status
FAULT DISPLAY ALARM STATUS Blocked SOLUTION Supply voltage low Electrical error 1/On 5 mm No.2 0/Off... - Page 17 FAULT DISPLAY FAULT DISPLAY <160 V SOLUTION SOLUTION 1/On 0/Off...
- Page 18 UK declaration of conformity The Restriction of the Use of Certain Bjerringbro, 15 February 2022 We, Grundfos, declare under our sole Hazardous Substances in Electrical responsibility that the products to and Electronic Equipment which the declaration below relates, is Regulations 2012...
