Sealey AK458DX.V5 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear a face
instruction shield
manual
1. SAFETY
1.1. GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this equipment.
‰
Familiarise yourself with the application and limitations of the oil drainer, as well as the potential hazards.
9
WARNING! Disconnect the drainer from the air supply before changing accessories, servicing or performing any maintenance.
‰
Maintain the drainer in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Keep the drainer clean for best and safest performance.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
WARNING! While extracting high temperature oils, keep hands, face and body protected using suitable personal protective
‰
equipment (PPE).
DO NOT Extract caustic or flammable products.
8
Keep children and unauthorised persons away from the working area.
9
WARNING! Ensure correct air pressure is maintained and not exceeded.
‰
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use, and ensure that all connections are secure
9
DO NOT use the drainer for any purpose other than that for which it is designed.
8
DO NOT operate the drainer if any parts are damaged or missing as this may cause failure and/or personal injury.
8
DO NOT stand on the drainer.
8
DO NOT adjust or tamper with the safety valve.
8
DO NOT move the drainer by the hose, or yank the hose from the air supply.
8
DO NOT place attachments close to your face (especially eyes, ears, etc.) and do not point hose at other persons or animals.
8
DO NOT allow untrained persons to operate the drainer.
8
DO NOT operate the drainer when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT leave the drainer operating unattended.
8
DO NOT direct air from the air hose at yourself or others.
8
When not in use disconnect from the air supply, vent reservoir and store in a safe, dry, childproof area.
9
Dispose of waste oil in accordance with local authority regulations.
9
WARNING! DO NOT pollute the environment by allowing uncontrolled discharge of waste oil.
‰
▲ DANGER! DO NOT release drain pan clamp lever when there is pressure in the reservoir as pipe and drain pan will be propelled
upward with force. This could result in damage and/or serious injury.
2. INTRODUCTION
Steel fabricated 110L reservoir. Height-adjustable steel drain pan, fitted with filter, and gravity feed reservoir with air discharge hose. Heavy-duty
wheels and castors for easy mobility.
3. SPECIFICATION
Model No:..............................AK458DX
Air Inlet:..................................1/4"
Capacity:................................110L
Collection Bowl Capacity:.......20L
Gravity Discharge:..................No
Gravity Feed:..........................Yes
Maximum Height to Pan:........1830mm
Minimum Height to Pan:.........1250mm
Oil Discharge Pressure:..........0.45bar
Temperature Range:...............<80°C
4. ASSEMBLY & INSTALLATION

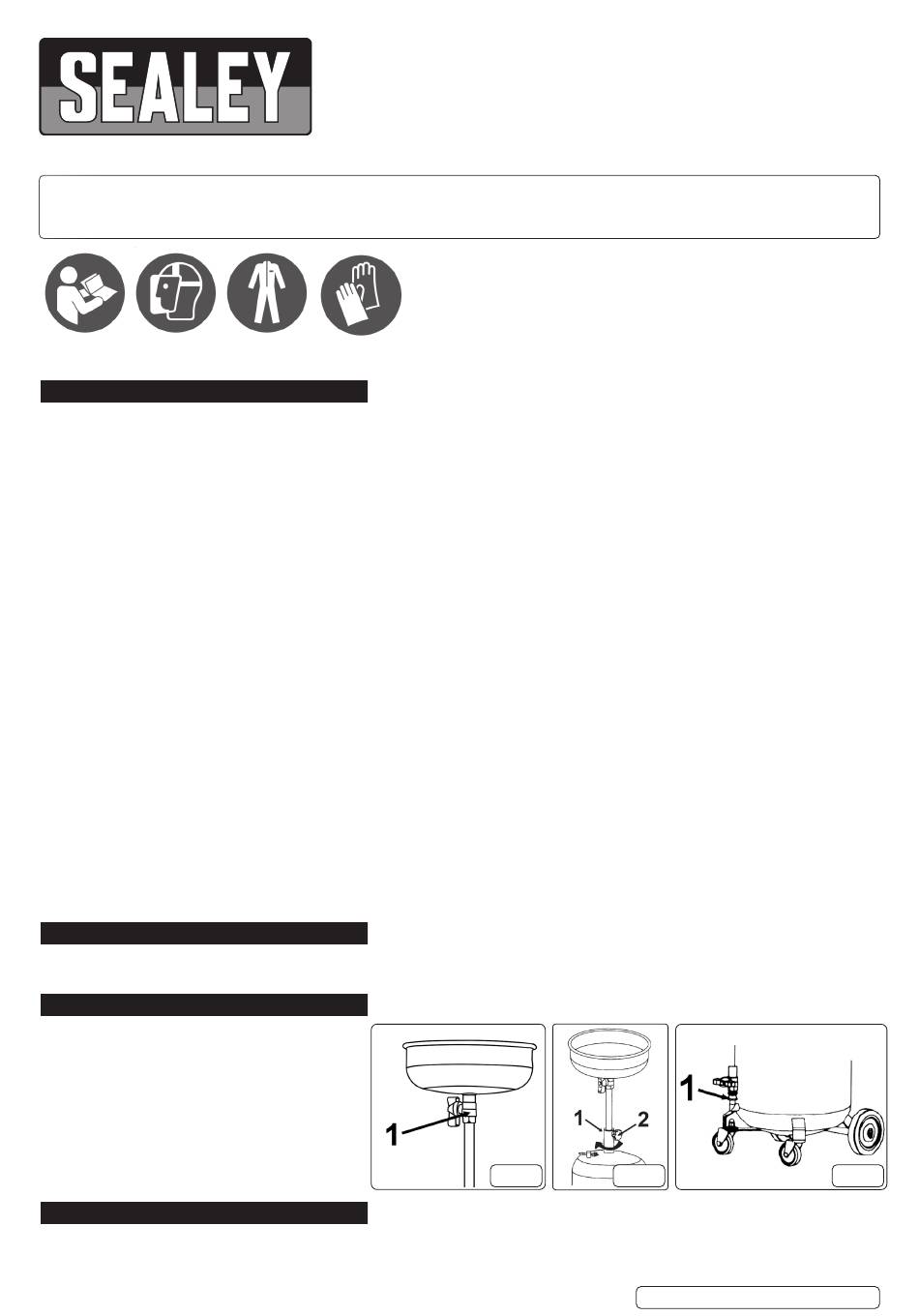

4.1. Connect the ball valve (fig.1.1) to the drain basin and tighten it with a suitable wrench.
4.2. Insert the assembled group into the resevoir tank and tighten the ring sleeve (fig.2.1). Adjust the height and lock in position using the
hand wheel (fig.2.2).
© Jack Sealey Limited

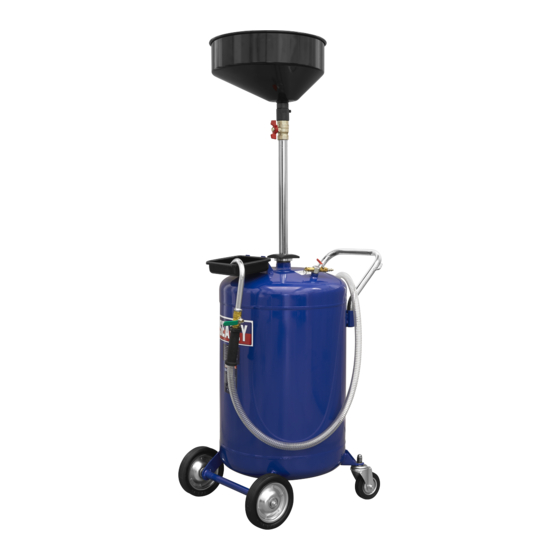

110L AIR DISCHARGE MOBILE OIL DRAINER
MODEL NO:
Wear protective Wear protective
clothing gloves
Original Language Version
AK458DX.V5
fig.1 fig.2
AK458DX.V5 Issue 1
fig.3
12/04/23
