MSI MPG B650I EDGE WIFI - Motherboard Manual

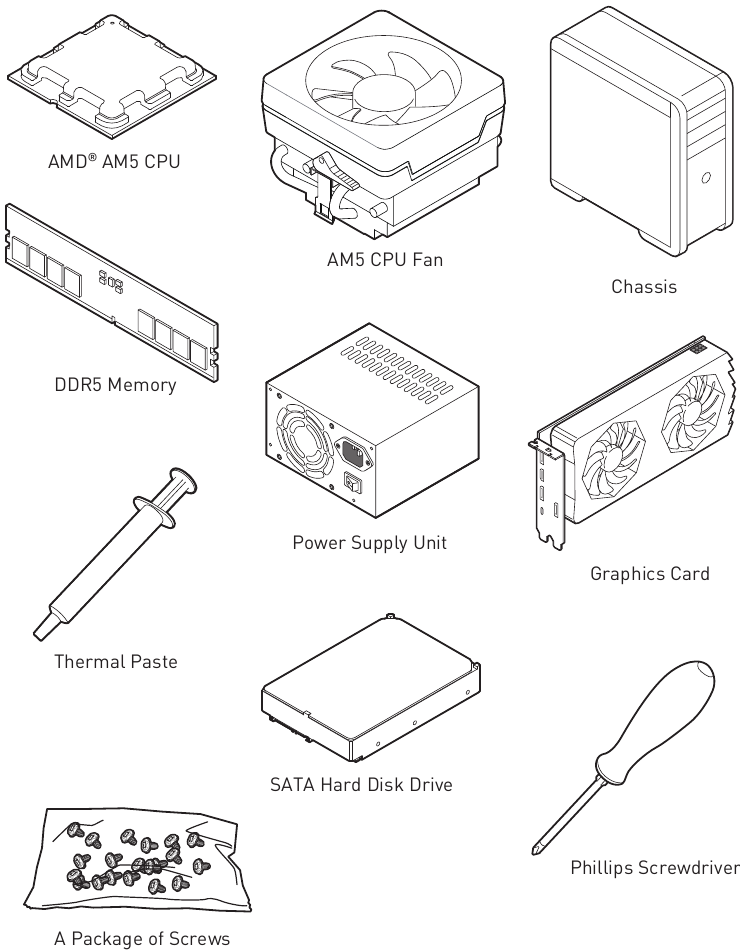

Preparing Tools and Components

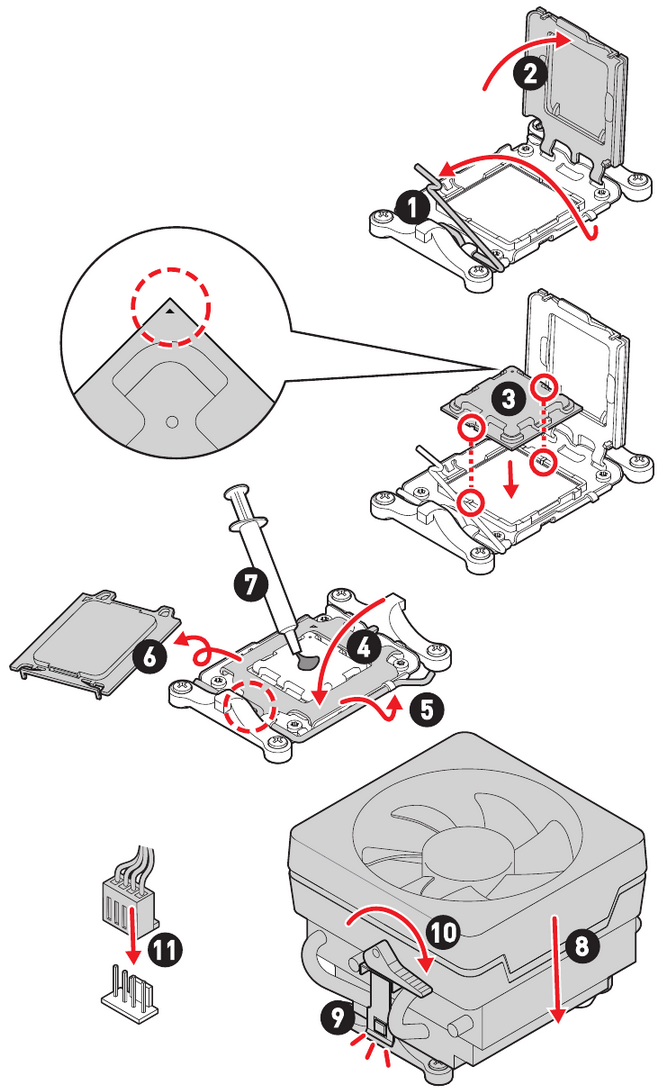

Installing a Processor

• https://youtu.be/cltgIYiGtWY

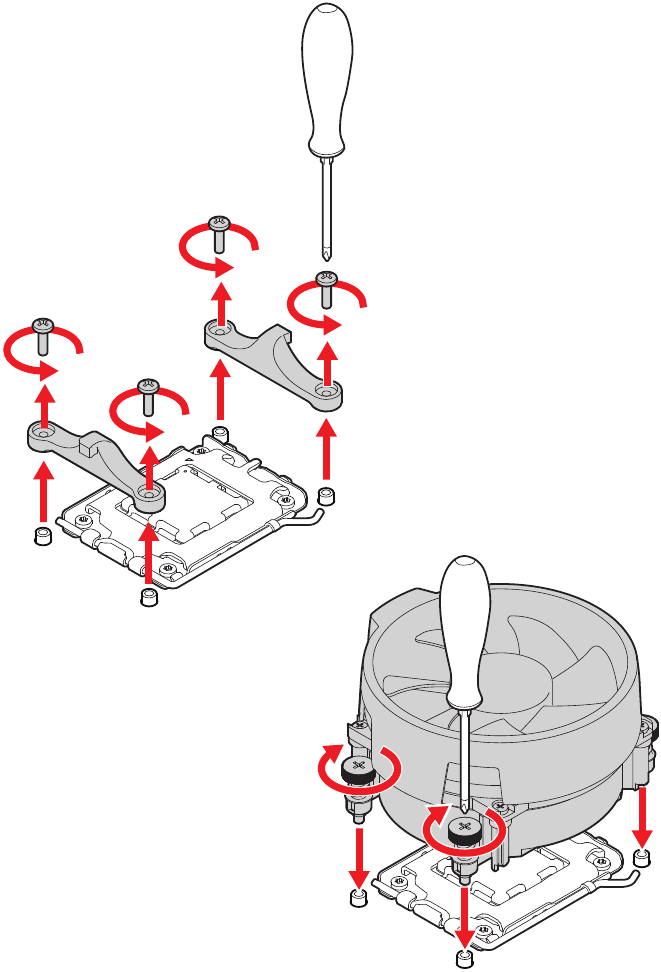

If you are installing the screw-type CPU heatsink, please follow the figure below to remove the retention module first and then install the heatsink.

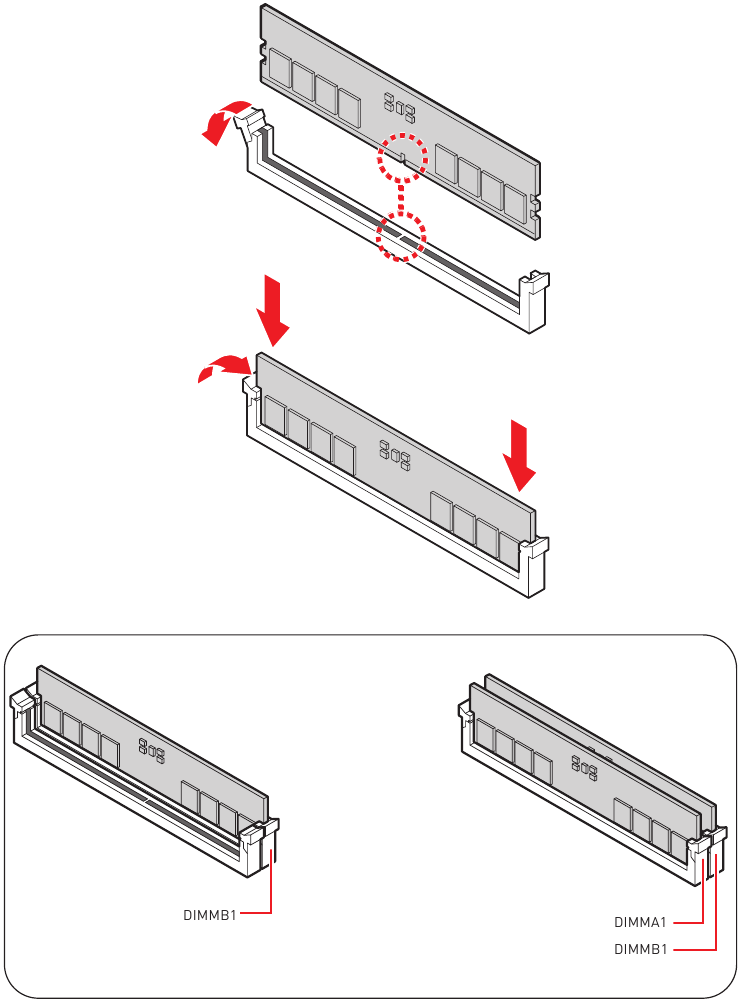

Installing DDR5 memory

• https://youtu.be/XiNmkDNZcZk

Connecting the Front Panel Header

• http://youtu.be/DPELIdVNZUI

Installing the Motherboard

*3 kgf·cm = 0.3 N·m = 2.6 lbf·in

• https://youtu.be/wWI6Qt51Wnc

Connecting the Power Connectors

• http://youtu.be/gkDYyR_83I4

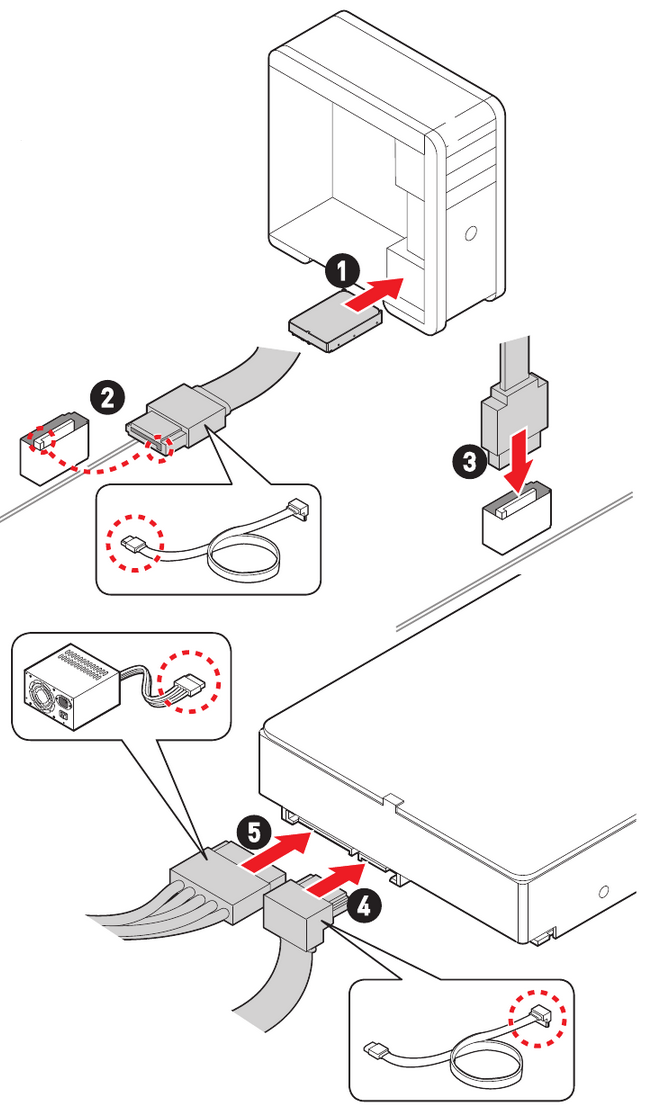

Installing SATA Drives

• http://youtu.be/RZsMpqxythc

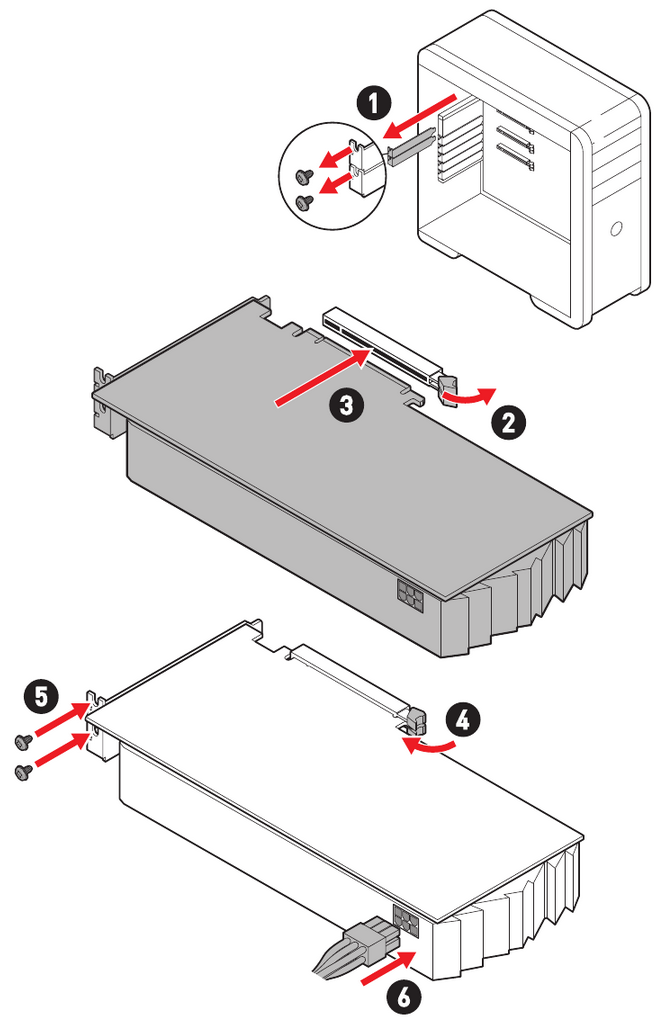

Installing a Graphics Card

• http://youtu.be/mG0GZpr9w_A

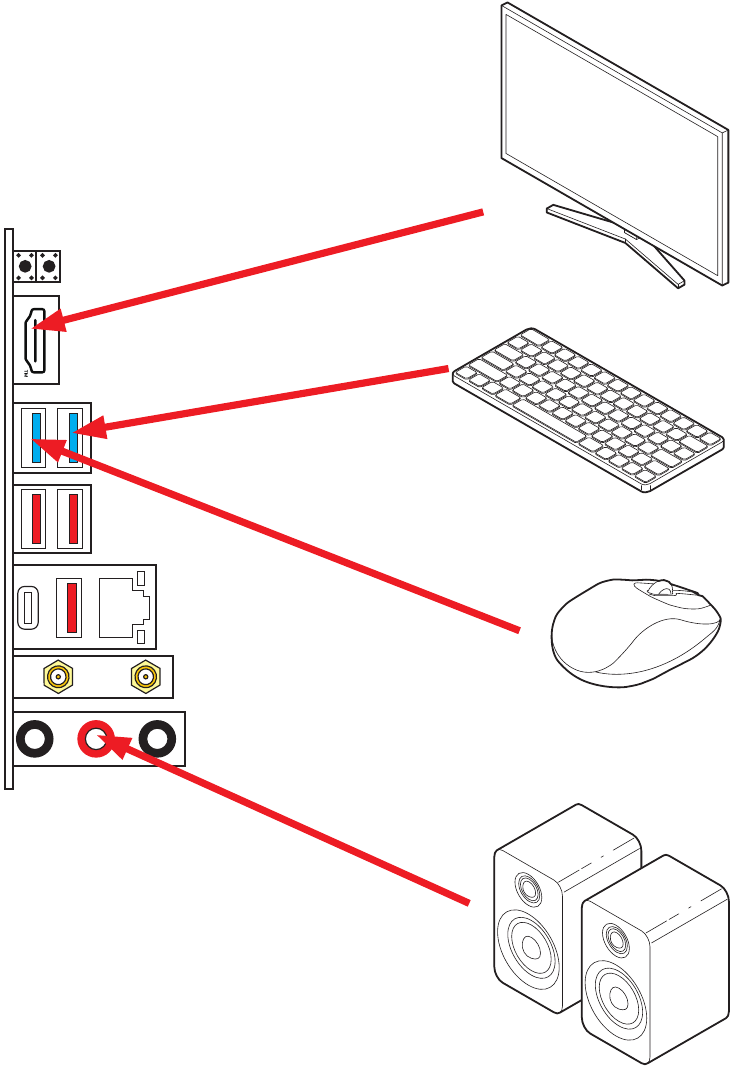

Connecting Peripheral Devices

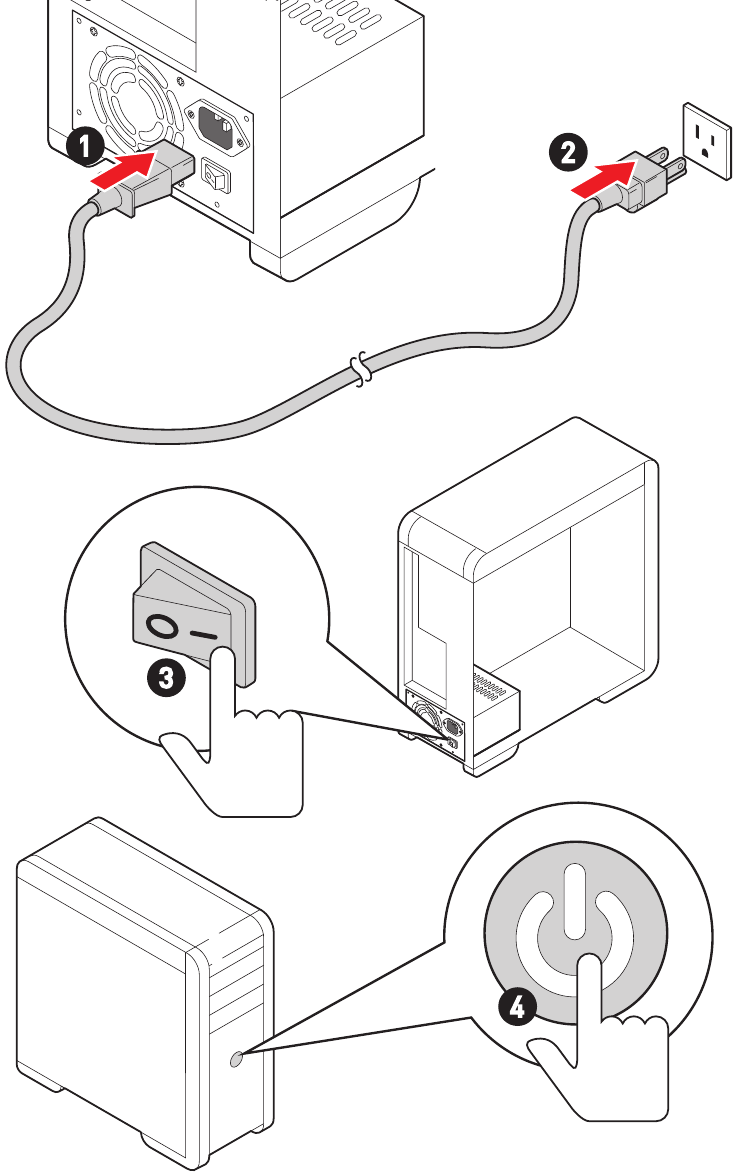

Power On

Specifications

CPU	Supports AMD Ryzen™ 7000 Series Desktop Processor* Processor socket AM5 * Please go to www.msi.com to get the newest support status as new processors are released.
Chipset	AMD B650 Chipset
Memory	2x DDR5 memory slots, supporting up to 96GB* Supports 1R 4800 MHz by JEDEC Max. overclocking frequency: 1DPC 1R Max. speed up to 6000+ MHz 1DPC 2R Max. speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO * Please refer to www.msi.com for more information on compatible memory.
Expansion Slots	1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16
Onboard Graphics	1x HDMI™ 2.1 port with FRL, supports a maximum resolution of 4K 120Hz* / ** * Available only on processors featuring integrated graphics. ** Graphics specifications may vary depending on the CPU installed.
SATA Ports	4x SATA 6Gb/s ports (From B650 chipset)
M.2 SSD Slots	2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_2 slot (From chipset) Supports up to PCIe 4.0 x4 Supports 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel.
LAN	1x Realtek® 8125 2.5Gbps LAN controller
Wi-Fi & Bluetooth®	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country's regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details.
Power Connectors	1x 24-pin ATX main power connector 1x 8-pin +12V power connector
Internal USB Connectors	1x USB 3.2 Gen 2 10Gbps Type-C front panel port (From B650 chipset) 1x USB 3.2 Gen 1 5Gbps connector (From B650 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 connector (From B650 chipset) Supports additional 2 USB 2.0 ports
Fan Connectors	1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector
System Connectors	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector
Jumpers	1x OC safe boot jumper
LED Features	1x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connector 4x EZ Debug LED
Back Panel Connectors	1x Clear CMOS button 1x Flash BIOS button 1x HDMI™ port 2x USB 3.2 Gen 1 5Gbps Type-A ports (From CPU) 2x USB 3.2 Gen 2 10Gbps Type-A port (From CPU) 1x USB 3.2 Gen 2 10Gbps Type-A port (From B650 chipset) 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset) 1x 2.5 Gbps LAN (RJ45) port 2x Wi-Fi antenna connectors 3x audio jacks
I/O Controller	NUVOTON NCT6687-R Controller Chip
Hardware Monitor	CPU/ System/ Chipset temperature detection CPU/ System/ Pump/ chipset fan speed detection CPU/ System/ Pump/ chipset fan speed control
Form Factor	Mini-ITX Form Factor 6.7 in. x 6.7 in. (170 mm x 170 mm)
BIOS Features	1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.5 Multi-language
Software	Drivers MSI Center MSI APP Player (BlueStacks) CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition

Special Features

MSI Center

• Gaming Mode
• Smart Priority
• Game Highlights
• Mystic Light (Sync & control)
• Ambient Link
• Frozr AI Cooling
• User Scenario
• True Color
• Live Update
• Hardware Monitoring
• Super Charger
• Device Speed Up
• Smart Image Finder
• MSI Companion
• System Diagnosis
• System Info
• Microsoft APP
• My Device
• MSI Display kit

Thermal Features

• Extended Heatsink Design
• MOSFET Baseplate
• M.2 Shield Frozr
• K7 MOSFET thermal pad/ Extra choke pad
• Fan headers (CPU + PUMP + SYSTEM)

Performance

• Core Boost
• VRM Power Design
• Memory Boost
• Lightning Gen 4 PCI-E/ M.2 Slot
• Front USB Type-C
• Server Grade PCB
• 2oz Copper thickened PCB

DIY Friendly

• PCI-E Steel Armor
• Pre-installed I/O Shield
• EZ DEBUG LED
• EZ LED Control
• Flash BIOS Button

Audio

• Audio Boost 5

RGB Support

• Mystic Light Extension (A-RAINBOW V2)
• Ambient Link Support

BIOS

• Click BIOS 5

Package Contents

Please check the contents of your motherboard package. It should contain:

Board

• 1x Motherboard

Documentation

• 1x Quick installation guide
• 1x European Union regulatory notice

Cables

• 2x SATA6Gb/s cables
• 1x JARGB extension cable

Accessories

• 1x Wi-Fi antenna set
• 1x Cable sticker
• 3x M.2 screws

If any of the above items are damaged or missing, please contact your retailer.

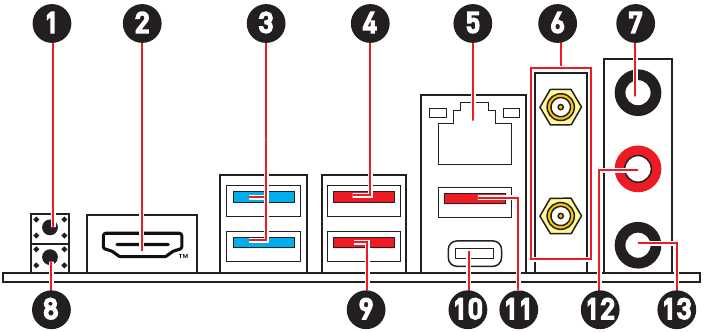

Back Panel Connectors

Item	Description
1	Clear CMOS button
2	HDMI™ port
3	USB 3.2 Gen 1 5Gbps Type-A ports (From CPU)
4	USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)
5	2.5 Gbps LAN jack
6	Wi-Fi Antenna connectors
7	Line-In jack
8	Flash BIOS button
9	USB 3.2 Gen 2 10Gbps Type-A port (From CPU) Flash BIOS port
10	USB 3.2 Gen 2x2 (20Gbps) Type-C port (From B650 chipset)
11	USB 3.2 Gen 2 10Gbps Type-A port (From B650 chipset)
12	Line-Out jack
13	Mic-In jack

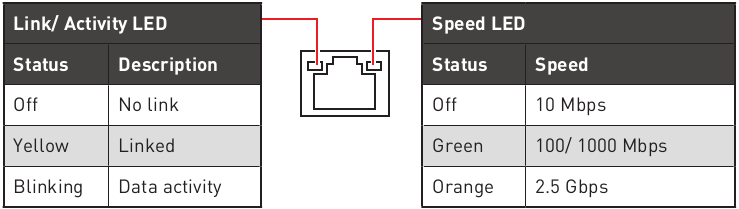

LAN Port LED Status Table

Audio Jacks Connection

Audio jacks to headphone and microphone diagram

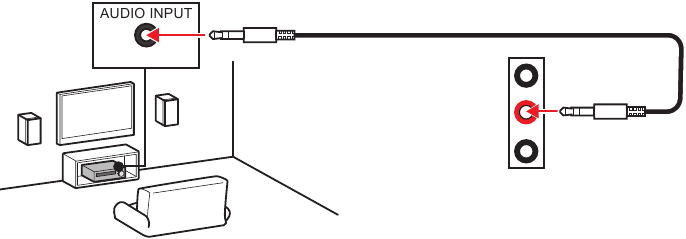

Audio jacks to stereo speakers diagram

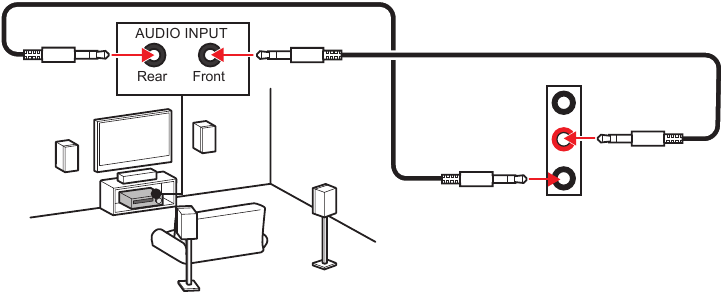

Audio jacks to 4-channel speakers diagram

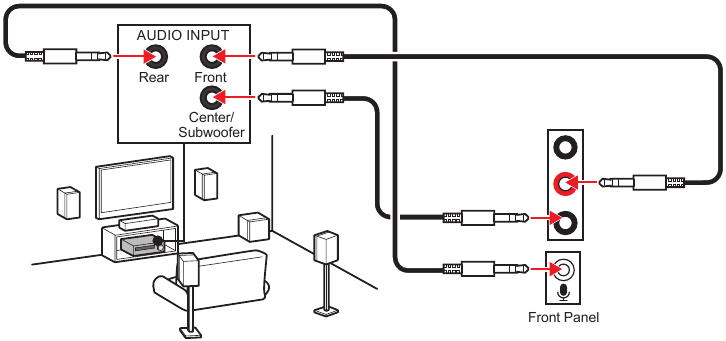

Audio jacks to 5.1-channel speakers diagram

Audio jacks to 7.1-channel speakers diagram

Installing Antennas

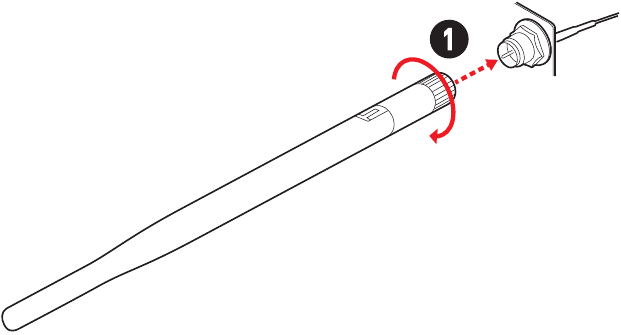

1. Screw the antennas tight to the antenna connectors as shown below.

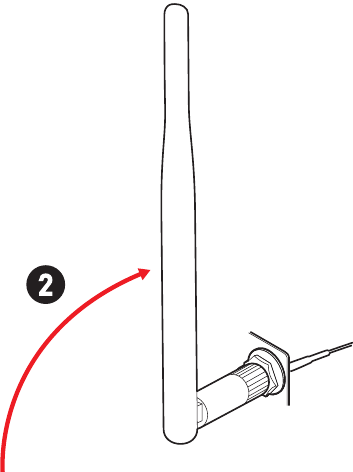

2. Orient the antennas.


Overview of Components

Front view

Bottom view

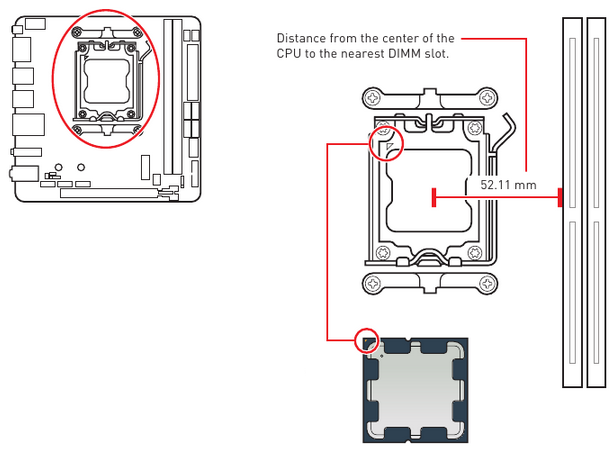

CPU Socket

Introduction to the AM5 CPU
The surface of the AM5 CPU has two notches and a golden triangle to assist in correctly lining up the CPU for motherboard placement. The golden triangle is the Pin 1 indicator.

• When changing the processor, the system configuration could be cleared and reset BIOS to default values, due to the AM5 processor's architecture.
• Always unplug the power cord from the power outlet before installing or removing the CPU.
• Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket.
• When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink is necessary to prevent overheating and maintain system stability.
• Confirm that the CPU heatsink has formed a tight seal with the CPU before booting your system.
• Overheating can seriously damage the CPU and motherboard. Always make sure the cooling fans work properly to protect the CPU from overheating. Be sure to apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.
• Whenever the CPU is not installed, always protect the CPU socket pins by covering the socket with the plastic cap.
• If you purchased a separate CPU and heatsink/ cooler, Please refer to the documentation in the heatsink/ cooler package for more details about installation.
• This motherboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommended. MSI® does not guarantee the damages or risks caused by inadequate operation beyond product specifications.

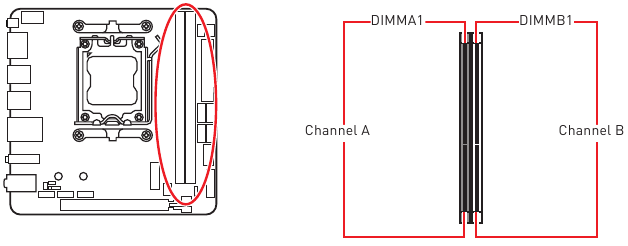

DIMM Slots

• Always insert memory modules in the DIMMB1 slot first.
• To ensure system stability for Dual channel mode, memory modules must be of the same type, number and density.
• Some memory modules may operate at a lower frequency than the marked value when overclocking due to the memory frequency operates dependent on its Serial Presence Detect (SPD). Go to BIOS and find the DRAM Frequency to set the memory frequency if you want to operate the memory at the marked or at a higher frequency.
• It is recommended to use a more efficient memory cooling system for full DIMMs installation or overclocking.
• The stability and compatibility of installed memory module depend on installed CPU and devices when overclocking.
• Please refer to www.msi.com for more information on compatible memory.

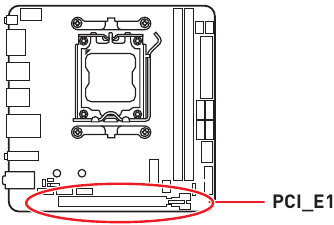

PCI_E1: PCIe Expansion Slot

PCI_E1: PCIe 4.0 x16 (From CPU)

• If you install a large and heavy graphics card, you need to use a tool such as MSI Graphics Card Bolster to support its weight to prevent deformation of the slot.
• When adding or removing expansion card, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card's documentation to check for any necessary additional hardware or software changes.

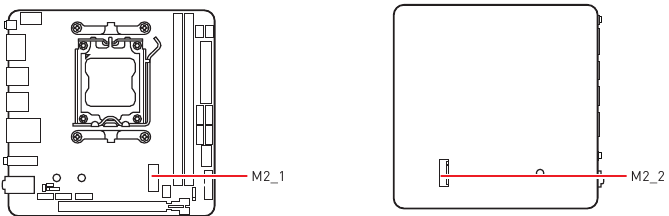

M2_1~2: M.2 Slots (Key M)

If your M.2 SSD equips its own heatsink, please remove the M.2 plate or rubber cube in the M.2 slot before installing M.2 SSD. Do not re-install the heatsink supplied with your motherboard.

Installing M.2 module into M2_1 slot

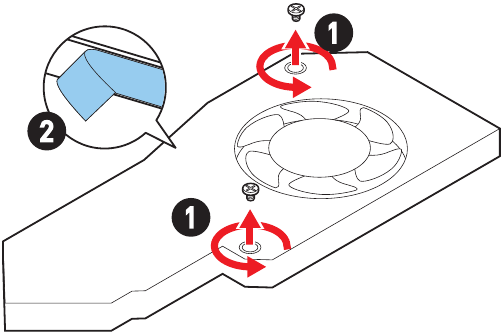

1. Loosen the screws of M.2 Shield Frozr heatsink.

2. Remove the M.2 Shield Frozr and remove the protective films from the thermal pad under the M.2 Shield Frozr.
3. Remove the protective films from the thermal pad on the M.2 plate.

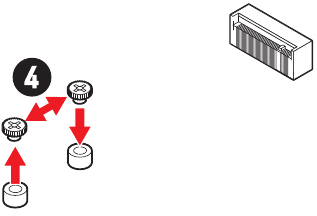

4. Move and fasten the M.2 standoff screw to the appropriate location for 2260 M.2 SSD. Skip this step if you install 2280 SSD.

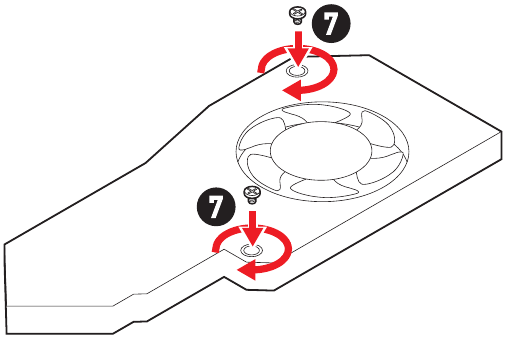

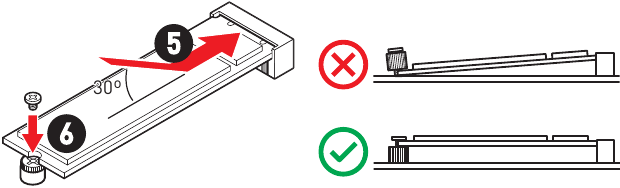

5. Insert your M.2 SSD into the M2_1 slot at a 30-degree angle.

6. Secure the M.2 SSD in place with the supplied M.2 screw.
7. Put the M.2 Shield Frozr heatsink back in place and secure it.

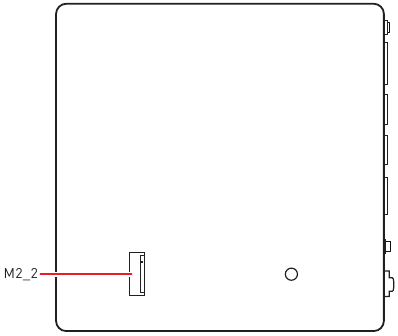

Installing M.2 module into M2_2 slot

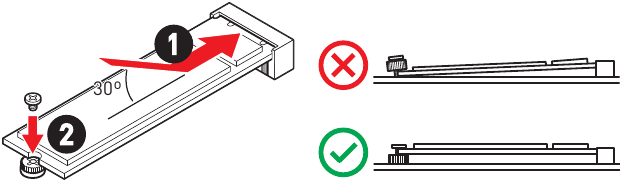

1. Insert your M.2 SSD into the M2_2 slot at a 30-degree angle.

2. Secure the M.2 SSD in place with the supplied M.2 screw.

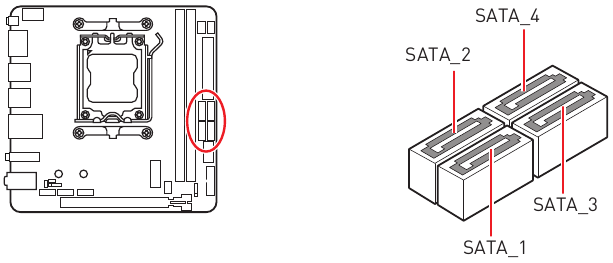

SATA_1~4: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device.

• Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.
• SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the motherboard for space saving purposes.

JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.

Pin	Signal Name	Pin	Signal Name
1	MIC L	2	Ground
3	MIC R	4	NC
5	Head Phone R	6	MIC Detection
7	SENSE_SEND	8	No Pin
9	Head Phone L	10	Head Phone Detection

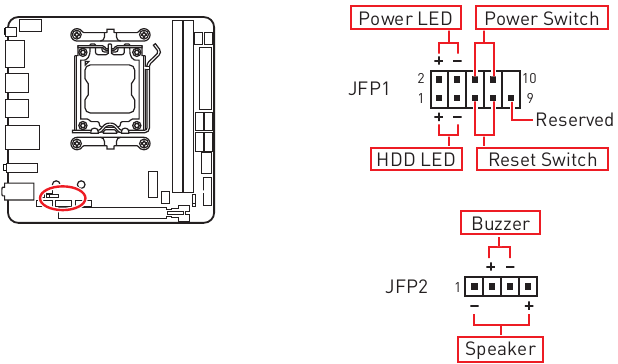

JFP1, JFP2: Front Panel Connectors

The JFP1 connector controls the power on, power reset, and the LEDs on your PC case/chassis. Power Switch/ Reset Switch headers allow you to connect power button/ reset button. Power LED header connects to LED light on the PC case, and HDD LED header indicates the activity of the hard disk. The JFP2 connector is for Buzzer and Speaker. To connect the cables from PC case to the right pins, please refer to the following images below.

Please note that Power LED and HDD LED have positive and negative connection, you need to link up the cable to the corresponding positive and negative port on the motherboard. Otherwise, LEDs won't work properly.

CPU_PWR1, ATX_PWR1: Power Connectors

These connectors allow you to connect an ATX power supply.

CPU_PWR1

Pin	Signal Name	Pin	Signal Name
1	Ground	2	Ground
3	Ground	4	Ground
5	+12V	6	+12V
7	+12V	8	+12V

ATX_PWR1

Pin	Signal Name	Pin	Signal Name
1	+3.3V	2	+3.3V
3	Ground	4	+5V
5	Ground	6	+5V
7	Ground	8	PWR OK
9	5VSB	10	+12V
11	+12V	12	+3.3V
13	+3.3V	14	-12V
15	Ground	16	PS-ON#
17	Ground	18	Ground
19	Ground	20	Res
21	+5V	22	+5V
23	+5V	24	Ground

Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the motherboard.

JCI1: Chassis Intrusion Connector

This connector allows you to connect the chassis intrusion switch cable.

Normal (default)

Trigger the chassis intrusion event

Using chassis intrusion detector

1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis.
2. Close the chassis cover.
3. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
4. Set Chassis Intrusion to Enabled.
5. Press F10 to save and exit and then press the Enter key to select Yes.
6. Once the chassis cover is opened again, a warning message will be displayed on screen when the computer is turned on.

Resetting the chassis intrusion warning

1. Go to BIOS > SETTINGS > Security > Chassis Intrusion Configuration.
2. Set Chassis Intrusion to Reset.
3. Press F10 to save and exit and then press the Enter key to select Yes.

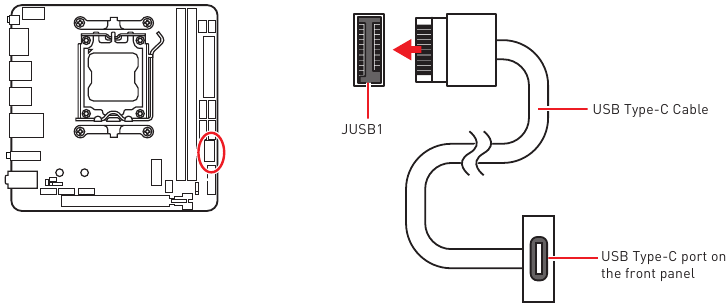

JUSB1: USB 3.2 Gen 2 10Gbps Type-C front panel Connector

This connector allows you to connect USB Type-C connector on the front panel. The connector possess a foolproof design. When you connect the cable, be sure to connect it with the corresponding orientation.

JUSB2: USB 3.2 Gen 1 Connector

These connectors allow you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.

Pin	Signal Name	Pin	Signal Name
1	Power	2	USB3_RX_DN
3	USB3_RX_DP	4	Ground
5	USB3_TX_C_DN	6	USB3_TX_C_DP
7	Ground	8	USB2.0-
9	USB2.0+	10	Ground
11	USB2.0+	12	USB2.0-
13	Ground	14	USB3_TX_C_DP
15	USB3_TX_C_DN	16	Ground
17	USB3_RX_DP	18	USB3_RX_DN
19	Power	20	No Pin

Note that the Power and Ground pins must be connected correctly to avoid possible damage.

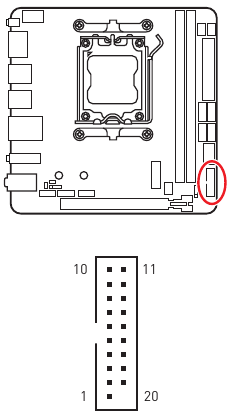

JUSB3: USB 2.0 Connector

This connector allows you to connect USB 2.0 ports on the front panel.

Pin	Signal Name	Pin	Signal Name
1	VCC	2	VCC
3	USB0-	4	USB1-
5	USB0+	6	USB1+
7	Ground	8	Ground
9	No Pin	10	NC

• Note that the VCC and Ground pins must be connected correctly to avoid possible damage.
• In order to recharge your iPad, iPhone and iPod through USB ports, please install MSI Center utility.

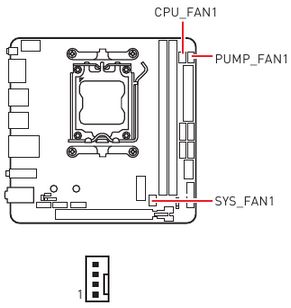

CPU_FAN1, PUMP_FAN1, SYS_FAN1: Fan Connectors

Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. The auto mode fan connectors can automatically detect PWM and DC mode.
You can control fans in BIOS> HARDWARE MONITOR panel. It allows you to set DC or PWM to your fan type. Check the Smart Fan Mode, the fan speed will change according to the CPU or system temperature. Uncheck the Smart Fan Mode, the fan will spin at maximum speed.

PWM Mode pin definition

Pin	Signal Name	Pin	Signal Name
1	Ground	2	+12V
3	Sense	4	Speed Control Signal

DC Mode pin definition

Pin	Signal Name	Pin	Signal Name
1	Ground	2	Voltage Control
3	Sense	4	NC

Fan connector specifications

Connector	Default fan mode	Max. current	Max. power
CPU_FAN1	Auto mode	3A	36W
PUMP_FAN1	PWM mode	3A	36W
SYS_FAN1	DC mode	2A	24W

Make sure fans are working properly after switching the PWM/ DC mode.

JOCFS1: Safe Boot Jumper

This jumper is used for Safe Boot. Once enabled, the system will boot with default settings and lower PCIe (from CPU) mode.

Normal (default)
Boot with the saved BIOS settings.

Enabled
Apply the BIOS default settings and lower PCIe (from CPU) mode for Safe Boot.

BAT1: CMOS Battery

If the CMOS battery is out of charge, the time in the BIOS will be reset and the data of system configuration will be lost. In this case, you need to replace the CMOS battery.

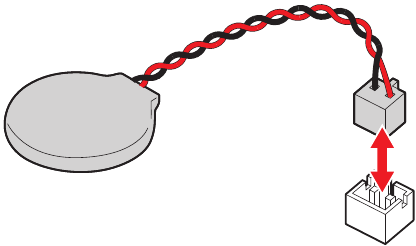

Replacing CMOS battery

1. Unplug the battery wire from the BAT1 connector and remove the battery.
2. Connect the new CR2032 battery with wire to the BAT1 connector.


KEEP OUT OF REACH OF CHILDREN

• Swallowing can lead to chemical burns, perforation of soft tissue, can death.
• Severe burns can occur within 2 hours of ingestion.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

JARGB_V2: A-RAINBOW V2 (ARGB Gen2) LED connector

The JARGB_V2 connector allows you to connect the ARGB Gen2 and the ARGB-based LED strips. The JARGB_V2 connector supports up to 240 individually addressable RGB LEDs with maximum power rating of 3A (5V).

Pin	Signal Name	Pin	Signal Name
1	+5V	2	Data
3	No Pin	4	Ground

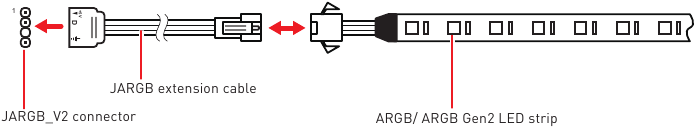

Addressable RGB LED Strip Connection

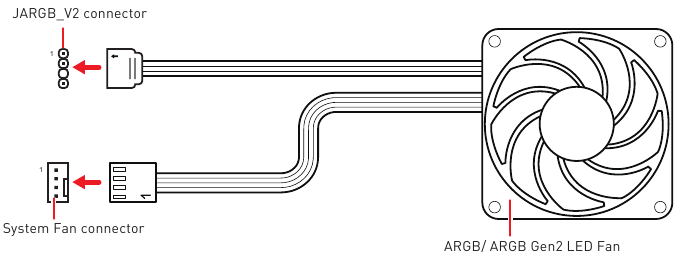

Addressable RGB LED Fan Connection

Do not connect the wrong type of LED strips. The JRGB connector and the JARGB_V2 connector provide different voltages, and connecting the ARGB 5V LED strip to the JRGB connector will result in damage to the LED strip.

• If you connect the ARGB Gen1 and ARGB Gen2 LED strips into the same connector, it may cause some issues. Please do not mix the ARGB Gen1 LED and the ARGB Gen2 LED strips together.
• It is recommended that you install LED strips with the same specification to achieve the best effects.
• Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the addressable RGB LED strip.
• Please use MSI's software to control the extended LED strip.

EZ Debug LED

These LEDs indicate the debug status of the motherboard.

CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected or fail.

Installing OS, Drivers & MSI Center

Please download and update the latest utilities and drivers at www.msi.com

Installing Windows 10/ Windows 11

1. Power on the computer.
2. Insert the Windows 10/ Windows 11 installation disc/USB into your computer.
3. Press the Restart button on the computer case.
4. Press F11 key during the computer POST (Power-On Self Test) to get into Boot Menu.
5. Select the Windows 10/ Windows 11 installation disc/USB from the Boot Menu.
6. Press any key if screen shows Press any key to boot from CD or DVD... message. If not, please skip this step.
7. Follow the instructions on the screen to install Windows 10/ Windows 11.

Installing Drivers with MSI Driver Utility Installer

• Some new network chips have not been natively supported by Windows 10/ Windows 11. It is recommended that the LAN driver be installed before installing drivers with MSI Driver Utility Installer. Please refer to www.msi.com to install the LAN driver for your motherboard.
• The MSI Driver Utility Installer will only pop up once. If you cancel or close it during the process, please refer to the Live Update chapter of the MSI Center manual to install the drivers. You can also go to www.msi.com to search your motherboard and download the drivers.
• MSI Driver Utility Installer needs to be installed over the internet.

1. Start up your computer in Windows 10/ Windows 11.
2. Select Start > Settings > Windows Update, and then select Check for updates.
3. MSI Driver Utility Installer will pop up automatically.

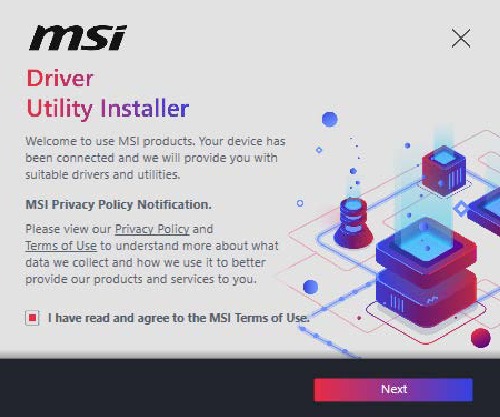

4. Select the I have read and agree to the MSI Terms of Use check box, and then click Next.

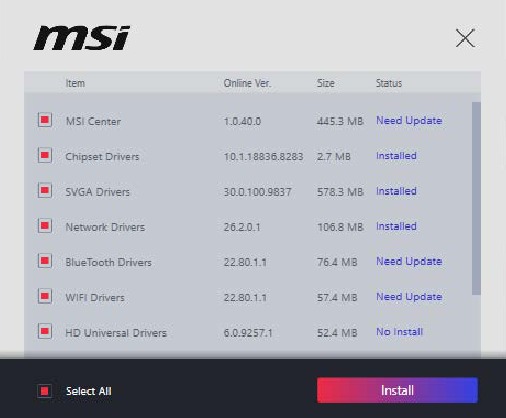

5. Check the Select All checkbox in the lower-left corner and click Install to install MSI Center and drivers. The installation progress will be shown at the bottom.

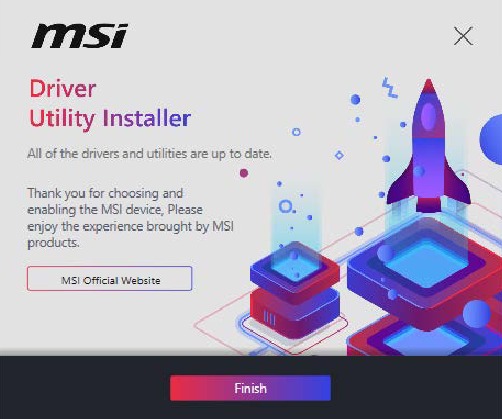

6. Once the progress has completed, click Finish.

MSI Center

MSI Center is an application that helps you easily optimize game settings and smoothly use content creation software. It also allows you to control and synchronize LED light effects on PCs and other MSI products. With MSI Center, you can customize ideal modes, monitor system performance, and adjust fan speed.

MSI Center User Guide
If you would like to know more information about MSI Center, please refer to http://download.msi.com/manual/mb/MSICENTER.pdf or scan the QR code to access.

Functions may vary depending on the product you have.

UEFI BIOS

MSI UEFI BIOS is compatible with UEFI (Unified Extensible Firmware Interface) architecture. UEFI has many new functions and advantages that traditional BIOS cannot achieve, and it will completely replace BIOS in the future. The MSI UEFI BIOS uses UEFI as the default boot mode to take full advantage of the new chipset's capabilities.

The term BIOS in this user guide refers to UEFI BIOS unless otherwise noted.

UEFI advantages

• Fast booting - UEFI can directly boot the operating system and save the BIOS selftest process. And also eliminates the time to switch to CSM mode during POST.
• Supports for hard drive partitions larger than 2 TB.
• Supports more than 4 primary partitions with a GUID Partition Table (GPT).
• Supports unlimited number of partitions.
• Supports full capabilities of new devices - new devices may not provide backward compatibility.
• Supports secure startup - UEFI can check the validity of the operating system to ensure that no malware tampers with the startup process.

Incompatible UEFI cases

• 32-bit Windows operating system - this motherboard supports only Windows 10/ Windows 11 64-bit operating system.
• Older graphics card - the system will detect your graphics card. If you use older graphics cards, it may display a warning message There is no GOP (Graphics Output protocol) support detected in this graphics card.

We recommend that you replace it with a graphics card supporting GOP/UEFI or use CPU with integrated graphics for having normal function.

How to check the BIOS mode?

1. Power on your computer.
2. Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process.
3. After entering the BIOS, you can check the BIOS Mode at the top of the screen.


BIOS Setup

The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS.

• BIOS items are continuously update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be for reference only. You could also refer to the HELP information panel for BIOS item description.
• The BIOS screens, options and settings will vary depending on your system.

Entering BIOS Setup

Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process.

Function key

F1:	General Help list
F2:	Add/ Remove a favorite item
F3:	Enter Favorites menu
F4:	Enter CPU Specifications menu
F5:	Enter Memory-Z menu
F6:	Load optimized defaults
F7:	Switch between Advanced mode and EZ mode
F8:	Load Overclocking Profile
F9:	Save Overclocking Profile
F10:	Save Change and Reset*
F12:	Take a screenshot and save it to USB flash drive (FAT/ FAT32 format only).
Ctrl+F:	Enter Search page

* When you press F10, a confirmation window appears and it provides the modification information. Select between Yes or No to confirm your choice.

BIOS User Guide

If you'd like to know more instructions on setting up the BIOS, please refer to https://download.msi.com/archive/mnu_exe/mb/AMDAM5BIOS.pdf or scan the QR code to access.

Functions may vary depending on the product you have.

Resetting BIOS

You might need to restore the default BIOS setting to solve certain problems. There are several ways to reset BIOS:

• Go to BIOS and press F6 to load optimized defaults.
• Press the Clear CMOS button on the rear I/O panel.

Be sure the computer is off before clearing CMOS data. Please refer to the Clear CMOS button section for resetting BIOS.

Updating BIOS

Updating BIOS with M-FLASH

Before updating:
Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive.
Updating BIOS:

1. Switch to the target BIOS ROM by Multi-BIOS switch. Please skip this step if your motherboard doesn't has this switch.
2. Insert the USB flash drive that contains the update file into the USB port.
3. Please refer the following methods to enter flash mode.

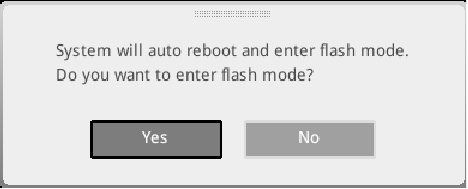

   • Reboot and press Ctrl + F5 key during POST and click on Yes to reboot the system.

   • Reboot and press Del key during POST to enter BIOS. Click the M-FLASH button and click on Yes to reboot the system.

4. Select a BIOS file to perform the BIOS update process.
5. When prompted click on Yes to start recovering BIOS.
6. After the flashing process is 100% completed, the system will reboot automatically.

Updating the BIOS with MSI Center

Before updating:

• Make sure the LAN driver is already installed and the internet connection is set properly.
• Please close all other application software before updating the BIOS.

To update BIOS:

1. Install and launch MSI Center and go to Support page.
2. Select Live Update and click on Advance button.
3. Select the BIOS file and click on Install button.
4. The installation reminder will appear, then click the Install button on it.
5. The system will automatically restart to update BIOS.
6. After the flashing process is 100% completed, the system will restart automatically.

Updating BIOS with Flash BIOS Button

1. Please download the latest BIOS file that matches your motherboard model from the MSI® website.
2. Rename the BIOS file to MSI.ROM, and save it to the root of the USB storage device.
3. Connect the power supply to CPU_PWR1 and ATX_PWR1. (No need to install CPU and memory.)
4. Plug the USB storage device that contains the MSI.ROM file into the Flash BIOS Port on the rear I/O panel.
5. Press the Flash BIOS Button to update BIOS, and the LED starts flashing.
6. The LED will be off when the process is completed.

Technical Support

If a problem arises with your system and no solution can be obtained from the user guide, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

• Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com
• Register your product at: http://register.msi.com

Safety Information

• The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly.
• Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start.
• Hold the motherboard by the edges to avoid touching sensitive components.
• It is recommended to wear an electrostatic discharge (ESD) wrist strap when handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is not available, discharge yourself of static electricity by touching another metal object before handling the motherboard.
• Store the motherboard in an electrostatic shielding container or on an anti-static pad whenever the motherboard is not installed.
• Before turning on the computer, ensure that there are no loose screws or metal components on the motherboard or anywhere within the computer case.
• Do not boot the computer before installation is completed. This could cause permanent damage to the components as well as injury to the user.
• If you need help during any installation step, please consult a certified computer technician.
• Always turn off the power supply and unplug the power cord from the power outlet before installing or removing any computer component.
• Keep this user guide for future reference.
• Keep this motherboard away from humidity.
• Make sure that your electrical outlet provides the same voltage as is indicated on the PSU, before connecting the PSU to the electrical outlet.
• Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
• All cautions and warnings on the motherboard should be noted.
• If any of the following situations arises, get the motherboard checked by service personnel:
  • Liquid has penetrated into the computer.
  • The motherboard has been exposed to moisture.
  • The motherboard does not work well or you can not get it work according to user guide.
  • The motherboard has been dropped and damaged.
  • The motherboard has obvious sign of breakage.
• Do not leave this motherboard in an environment above 60°C (140°F), it may damage the motherboard.
