- Page 1 CW-H-3000W Laser Cleaning Machine Specification https: // www. demarkchina. cn...
-
Page 2: Table Of Contents
Contents Contents ....................2 Chapter 1 Safety ...................4 1.Safety summary ................4 2.Safety signs and regulations ............. 4 3.Laser protections ................5 4.Safety and protection measures ............6 Chapter 2 Product overview ..............8 1.Products’ brief introduction .............. 8 2.Basic theory and advantages ............8 3.Product appearance and collocation .......... - Page 3 4.Operation specification ..............17 5.Equipment maintenance ..............27 Chapter 5 Common trouble shooting ..........30 1.The device does not power on after start-up ........30 2.The equipment doesn't give out red light ........30 3.No laser output from the device ............. 30 4.The output of laser is weak ............
-
Page 4: Chapter 1 Safety
Chapter 1 Safety 1.Safety summary As a manufacturer of laser equipment, we hope that users： Read this manual carefully before using the laser cleaning machine, so as to have a detailed understanding of the equipment safety and operation methods； Follow the operating procedures and safety specifications in this manual during the operation of the equipment. -
Page 5: Laser Protections
Take care Our laser cleaning machine is classified into class IV laser products, and the average power of the product is more than 3000 watts. The mid-wavelength of the laser is 1080nm, which is beyond the visible light range. However, these beams may cause irreversible damage to the eyes. Therefore, qualified safety glasses must be worn when operating the laser cleaning machine. -
Page 6: Safety And Protection Measures
4.Safety and protection measures Personnel training Only authorized, trained and instructed personnel are allowed to operate, maintain and assert the laser cleaning machine. Any operation other than those specified in this instruction is deemed to be not in conformity with the regulations. The user shall bear the sole risk for the loss of articles and personal injury. - Page 7 Safety precautions Make sure the power is off. The equipment should be checked to ensure that it is in a power-off state, before cleaning and maintaining the equipment. Avoid dust and other pollution. The dust on the lens surface of the handling head may cause the lens to be heated and damaged, resulting in the attenuation of the output power of the device or the failure to fire laser.
-
Page 8: Chapter 2 Product Overview
Product overview 1.Products’ brief introduction Laser cleaning is a new cleaning method in industrial cleaning. The CW-H-3000W laser derusting machine of our company adopts the high-power continuous fiber laser, high-speed scanning system, high-precision control system and high-voltage power supply of well-known enterprises in China.The whole machine is stable and... -
Page 9: Product Appearance And Collocation

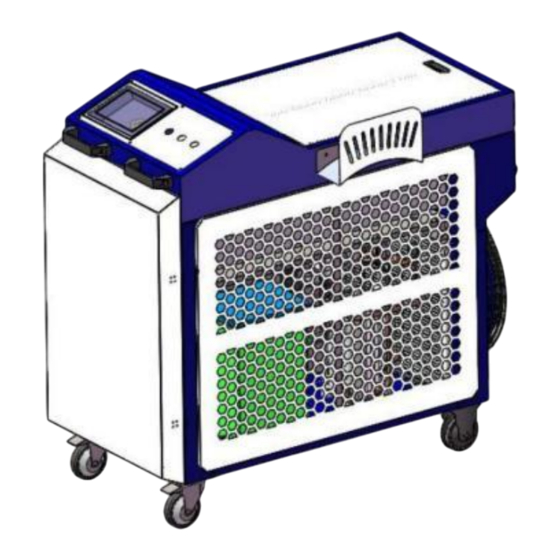

Utilization and characteristics Utilization CW-H-3000W series laser cleaning machine can be used to remove rust, paint and oil on metal and some non- metal surfaces, as well as the cleaning of black ash, carbon deposition and oil stain on the surface of parts after welding. - Page 10 Figure3 Appearance of CW-H-3000W series The collocation list of CW-H-3000W series is as follows: Table2 collocation list of CW-H-3000W series Product type Product model Product collocation 1. The cleaning host machine: 7 inch display screen Laser 20m operation cable Indicator red light...
-
Page 11: Qualification Instruction
4. Qualification instruction Our company guarantees that the laser cleaning machine has been fully tested and inspected before shipment and meets the published specifications. Please check whether the package and accessories are damaged during transportation after receiving the product in case of obvious damage. -
Page 12: Chapter 3 Technical Specifications Of Products
Chapter 3 Technical specifications of products 1 .Optical characteristic parameters Table3 Optical characteristic parameters of CW-H-3000W series laser cleaning machine Equipment model CW-H-3000W Average laser power 3000W Central wavelength 1080 nm Core diameter of optical fiber 50μm Typical values of M... -
Page 13: General Characteristic Parameters
※The above parameters are for reference only, please refer to the actual situation 3. Equipment composition and specification cleaning host machine Figure 4 Diagram of CW-H-3000W main engine (standard configuration, dimensions subject to physical delivery) https: // www. demarkchina. cn... - Page 14 Hand-held cleaning head Figure 5 Ultra portable cleaning head (standard configuration, dimensions subject to physical delivery) Operation Interface Figure 6 User Mode Operation Interface https: // www. demarkchina. cn...
-
Page 15: Chapter 4 Operation Instruction
Chapter 4 Operation instruction 1.Precautions before use Please read the product manual carefully before using this product. In this product description, we provide you with important product safety operation specifications and other reference information. In order to ensure your personal safety when operating this product and make it reach the best performance of the product, please follow the following precautions and warnings and other relevant operation specifications in this manual. -
Page 16: Introduction To Operation Buttons And Panels
Wear a laser protective glasses. You should not look at the laser directly during the light emitting process, and wear laser protective glasses throughout the operation. 3. Introduction to operation buttons and panels The operation buttons of CW-H-3000W series host machine are as follows: https: // www. demarkchina. cn... -
Page 17: Operation Specification
Emergency Stop Touch Start screen button Enable Figure 7 Front operation panel of CW-H-3000W Export of fiber Power and cable switch φ6mm Tracheal connector Power cord Figure 8 Rear operation panel of CW-H-3000W 4 .Operation specification Preliminary inspection Check whether the appearance of the equipment is abnormal and... - Page 18 whether the output cable is bent or damaged. Whether all items are configured according to the list. Check whether the lens of hand-held head is broken and whether the emergency stop switch is lifted. Check whether the water level of chillers to meet the normal working requirements, Green areas are normal water levels, as shown below.
- Page 19 Open the protective lens cap cover of the field lens, and pay attention to the bending radius of the optical fiber greater than 20 0 mm when taking out, so as to prevent distortion. Operation steps: 1)after connecting the power cord, lift the “ Power switch ” of the operating panel behind the fuselage in Figure 8 above.
- Page 20 protective cover of the field lens. The shut-down is completed. Setting of cleaning parameters In the user mode interface, all the laser parameters can be insert on the touch screen. Figure 10 Home page-Light out This interface can see the current process parameters (this page can not modify the process) and instant alarm information.
- Page 21 shine. Figure 11 Home page-Guan Guang Figure 12 The process page The process interface contains the process parameters of debugging, click the box (red) to modify, click OK, and then save in the quick https: // www. demarkchina. cn...
- Page 22 process, click import (modify-save-import). ② The scan frequency range is 10-100 HZ, and the scan width range is 0 ^ 300mm. (Common scanning speed: 50 hz, width of 300mm). ③ The peak power should be less than or equal to the laser power of the parameter page (if the laser power is 1000W, this value is not higher than 1000).
- Page 23 Figure 13 The Settings page Password: 123456 ① The laser power is the power of the used laser, please fill in correctly. ② The default gas delay default 200ms, range 200ms-3000ms. ③ From 20% of process power to 100%; from 100% of process power to 70;...
- Page 24 width / measured line width: the default is 1.0 ⑦ Laser center offset-75~75mm, reduced to the left, increased to the right shift, applied to adjust the red light center ⑧ The pressure / water cooler / laser alarm level signal is low level by default.
- Page 25 Figure 14 Settings page-Switch between different focal lengths Figure 15 Monitoring page This page displays the status of each signal and the equipment information ①Laser trigger signal: when the trigger is pulled, this state changes from gray to green. https: // www. demarkchina. cn...
- Page 26 ② Laser / water cooler / air pressure alarm signal: the output signal is displayed in the middle of the high and low level page set for monitoring it, and when the signal is output, the green signal is displayed by gray. ③...
-
Page 27: Equipment Maintenance
5 .Equipment maintenance The following provides you with some equipment maintenance methods and precautions for reference: 1 、Clean the dust at the air inlet and outlet of the equipment. It is recommended to clean the air intakes once a month and use Compressed air to remove dust. - Page 28 pollution, use the mirror paper wipe, if the lens is broken, need to be replaced. 4 、Replace protective lenses. The protective lenses are located at the front end of the hand- held cleaning head. When the protective lenses are damaged, it is necessary to replace the protective lenses in time to prevent more serious damage.
- Page 29 fiber will be pulled off and broken. Cause unnecessary equipment failure losses. https: // www. demarkchina. cn...
-
Page 30: Chapter 5 Common Trouble Shooting
Chapter 5 Common trouble shooting 1.The device does not power on after start-up Check whether the emergency stop switch is reset. Check whether the input power supply is abnormal, whether the connecting plug is loose, and whether the start button is self-locking. Check whether the air switch of the equipment trips 2.The equipment doesn't give out red light Check that the protective cover of the field mirror is removed. -
Page 31: Chapter 6 Packing, Transportation And Storage
Chapter 6 Packing, transportation and storage 1.Packing After the hand-held head and the optical fiber bellows are coiled evenly, the foam is placed on the optical fiber outlet and the hand-held head to ensure that the chassis will not damage the optical fiber due to bumpy transportation, and the turning radius of the corrugated pipe is more than 100mm. -
Page 32: Storage
The packing box shall not be wet by rain, snow or mechanical damage during transportation. Closed cabins or carriages should be used for long distance transportation. It shall not be stored in open warehouse during transit. Transportation vehicles are prohibited strictly to pass through areas with strong corrosive gas, strong electric field or strong magnetic field. -
Page 33: Chapter 7 Service And Maintenance
Chapter 7 Service and maintenance 1.Service statement For the safety, equipment, operation or maintenance of our company products, please read the product manual carefully, and strictly follow the operation instructions. If you have any questions, please call our company production and after-sales department, we will serve you wholeheartedly. -
Page 34: Warranty Statement
documents must be kept to claim the rights to the transporter. In order to protect your rights and interests, please contact the production and after-sales department of our company as soon as possible after finding the breakdown, and apply for product repair or replacement service. After authorized by our company, please send the product back to our company according to the packaging and transportation method in this manual. - Page 35 It is caused by the use beyond the scope of product specifications and technical requirements. Equipment consumables and optical fiber are damaged artificially or improperly. Take care Within the scope of warranty, the customer must give feedback within 3 working days after discovering the breakdown of equipment . Our company does not grant any third party or individual the right to repair or replace the equipment of the company's product.
