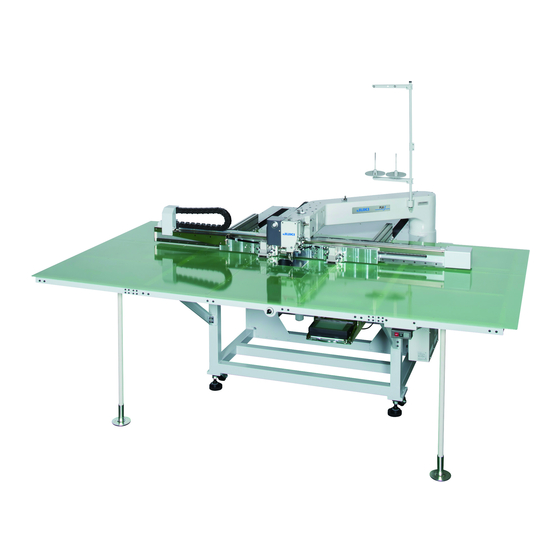

INDUSTRIAL SEWING MACHINE
MODEL
PLK-J10050R
PLK-J12060R
TECHNICAL MANUAL
SEWING MACHINE HEAD
A180E830P01

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Electric PLK-J10050R

Summary of Contents for Mitsubishi Electric PLK-J10050R

  • Page 1 INDUSTRIAL SEWING MACHINE MODEL PLK-J10050R PLK-J12060R TECHNICAL MANUAL SEWING MACHINE HEAD A180E830P01...
  • Page 2 FOR SAFE USE Before the installation, operation, and inspection for this product, read the “FOR SAFE USE” and the technical manuals carefully. Also read the other technical manuals, “Control Unit” and “Operation Panel” describing some instructions, which are not in this manual, and use the sewing machine properly. SAFETY INDICATIONS Indicates that incorrect handling may cause hazardous conditions, resulting DANGER...
  • Page 3 SAFETY PRECAUTIONS DANGER To prevent from receiving an electric shock, always turn off a power switch and unplug power supply when opening a control box, and then open after ten minutes passes. CAUTION USAGE ENVIRONMENT Please do not operate the sewing machine under the following conditions. (1) In the ambient temperature of 35 degrees (95°F) or more than 35 degrees, or the ambient temperature of 5 degrees or less than 5 degrees (41°F).
  • Page 4 SEWING (1) Please make sure to turn the power switch off before installing or replacing needles. (2) Please pay attention for the fingers not to be injured by the needle point. (3) Please make sure to turn power switch off before lubricating. (4) Please pay attention that oil does not get on your skin or in your eyes as it may cause an inflammation.

  • Page 5: Table Of Contents

    CONTENTS 1. STRUCTURE OF THE SEWING MACHINE···································· 2. SPECIFICATIONS····································································· 3. INSTALLATION········································································ 3-1. Installation of the foot switch··································································· 3-2. Connection of the air tube······································································· 3-3. Installation of the thread stand································································· 3-4. Installation of the eye guard···································································· 3-5. Installation of the rubber cushion······························································ 3-6.
  • Page 6 6-7. Adjustment of the thread take up spring···················································· 6-7-1. Adjusting movable range of the thread take up spring····························· 6-7-2. Adjusting intensity of the thread take up spring····································· 6-8. Adjustment of the thread tail after the trimming··········································· 6-9 Adjustment of the air pressure································································· 7.

  • Page 7: Structure Of The Sewing Machine

    1. STRUCTURE OF THE SEWING MACHINE PLK-J10050R / J12060R electronic pattern sewing machine consists of the following main parts. <7> <1> <2> <8> <4> <3> <6> <5> <1>: Sewing machine head <2>: Halt switch <3>: Control box <4>: Operation panel <5>: Work holder switch <6>: Start switch <7>: Thread stand <8>: Sewing machine table...

  • Page 8: Specifications

    Storable sewing data item 9,000 patterns Data memory USB memory Type of motor (Needle side) Mitsubishi Electric 750W direct servo motor Type of motor (Hook side) Mitsubishi Electric 400W direct servo motor Work holder Jig eject system Needle bar stroke 40.0 mm...

  • Page 9: Installation

    3. INSTALLATION CAUTION (1) Please have some specialists, who have enough experience for the sewing machine installations, install the sewing machine. (2) Please have a Qualified Electrician perform necessary electric wiring. (3) Please do not operate until the sewing machine is repaired when any damage or fault is found on the sewing machine at the installation.

  • Page 10: Connection Of The Air Tube

    3-2. Connection of the air tube Insert the one end of the air tube (8mm Diameter) into the intake air fitting (No.3) of the filter regulator (No.2) then, join the other end of the air tube with the suitable air coupling to be adopted with the air supply source provided in your factory.

  • Page 11: Installation Of The Eye Guard

    3-4. Installation of the eye guard (1) Mount the eye guard (No.1) with screw (No.2) to sewing machine head. <1>: Eye guard unit <2>: Screw <2> <1> 3-5. Installation of the rubber cushion in the direction of “a” arrow and locate the rubber cushion (1) Screw the adjust foot (No.2) (No.1)

  • Page 12: Installation Of The Table Stand

    3-6. Installation of the table stand (1) Install the table stand (No.1) which included in accessory box for prevent the table deflection. (2) Place the table stand (No.1) at arbitrary position of the both end of machine table. Turn the adjust pad (No.3) in the direction of arrow in below figure and adjust the stand height up to lightly contact with bottom surface of the table.

  • Page 13: Lubrication

    4. LUBRICATION CAUTION (1) Please make sure to turn power switch off before lubricating. (2) Please pay attention that oil does not get on your skin or in your eyes as it may cause an inflammation. (3) Please make sure to keep oil out of the reach of children who may drink oil by mistake. NOTICE Please make sure to lubricate when operating for the first time after the installation.

  • Page 14: Proper Operation

    5. PROPER OPERATION 5-1. Installation of the needle CAUTION (1) Please make sure to turn the power switch off before installing or replacing needles. (2) Please pay attention for the fingers not to be injured by the needle point. (1) Loosen the set screw (No.1) then, insert a new needle (No.2) until the needle head is reached the end of the hole of the needle bar (No.3).

  • Page 15: Threading The Needle Thread

    5-2. Threading the needle thread CAUTION (1) Please turn the power switch off when threading a needle. (1) Thread the needle thread as shown on the figure. - 9 -...

  • Page 16: Winding The Bobbin Thread

    5-3. Winding the bobbin thread CAUTION (1) Please do not touch the rotating part during winding thread. Doing so may cause injury and/or the machine failure. NOTICE Please make sure to pull the upper thread out of the needle before winding the bobbin thread. (1) Route the thread as shown in the below figure then, wind the thread to the bobbin (No.1) in the direction of “a”...

  • Page 17: How To Opening The Bobbin Access Door

    5-4.How to opening the bobbin access door When exchanging the bobbin, please open the bobbin access door (No.1) referring the following paragraph. The bobbin access door has center of the machine table. (1) Turn the opening switch (No.2) in the direction of the arrow which has front lower side of the table. The bobbin access door opens when opening switch (No.2) becomes state in <B>...

  • Page 18: Setting The Bobbin

    5-5. Setting the bobbin (1) Set the bobbin (No.2) into the bobbin case (No.1). (2) Pull the bobbin thread (No.3) into the slit (No.4) and pass through the thread hole (No.5). (3) At this time, pull the bobbin thread (No.3) then, check with the bobbin (No.2) if it is rotated to the arrow direction.

  • Page 19: How To Operating The Jig Eject System

    5-7.How to operating the jig eject system (1) Prepare the type of the work holder for jig eject system, and install the cassette jig right (No.1) and cassette jig left (No.2) which are enclosed in accessory box. NOTE For more information concerning about dimension, please refer to the last chapter <10-1.>. (2) Install the cassette jig right (No.1) and cassette jig left (No.2) to the inmost part of the each jig eject system (No.3).

  • Page 20: Operation Of The Halt Switch

    5-8. Operation of the halt switch (1) If accidents such as a thread breakage, needle breakage and others happened during the sewing, press the halt switch immediately. The sewing machine stops instantly. (2) To cancel the halt state, press the halt switch again. (3) When continuing sewing, step on the grey foot switch to restart at the halted position.

  • Page 21: Adjustment Of The Thread Tension

    5-9. Adjustment of the thread tension (1) Adjust the bobbin thread tension with the thread tension adjusting screw (No.2) on the bobbin case (No.1). The thread tension become loose if turn the thread tension adjusting screw (No.2) to the counterclockwise, and the thread tension becomes tight if turn it to the clockwise. <1>...

  • Page 22: Standard Adjustment

    6. STANDARD ADJUSTMENT CAUTION (1) Please make sure to turn the power switch off before adjusting the sewing machine. (2) When adjusting the sewing machine with the power switch on, please be careful not to step on the foot switch by mistake. (3) Please be careful not to be injured by a sharp part such as the needle and the hook point.

  • Page 23: Adjustment Of The Position Between The Needle And The Rotating Hook

    6-2. Adjustment of the position between the needle and the rotating hook 6-2-1. Adjustment of the clearance between the hook point and the needle (1) Turn the power switch OFF. (2) Open the bobbin access door (No.1). (3) Remove the bobbin case (No.2). (4) Remove the four screws (No.4) and remove the sliding plate (No.3).
  • Page 24 (6) Turn the hand pulley (No.6) by hand in the direction of the arrow then, move up the needle bar (No.7) from the lowest position and stop it at the position where the needle bar timing mark C is matched to the needle bar bushing bottom line (No.8).
  • Page 25 (8) Move the hook by hand and adjust the clearance between the hook point and the needle to be about 0.05 mm. (9) Hold the hook and tighten the three of hook set screws (No.5) securely. NOTE Please make sure if the hook set screw (No.5) nearest of hook point to be positioned with the positioning mark (No.11) of the lower shaft.

  • Page 26: Adjustment Of The Timing Between Hook And Needle Motion

    6-2-2. Adjustment of the timing between the hook and the needle motion The timing between hook and needle motion can be adjusted by operation panel. Please refer to the OPERATION PANEL technical manual if needed. (1) Remove the all of any parts, tools and screws on the sliding table. After make sure the work environment safety, Turn the power switch on.
  • Page 27 (5) Following the screen indication, set up the main motor up position. After the completion of setting, press the icon and then press the icon. (6) Press the sub motor hook position setting icon. - 21 -...
  • Page 28 (7) Following the screen indication, set up the sub motor hook position. After the completion of setting, press the icon and then press the icon. (8) Press the home position return icon . After completing the origin return operation, press the on the standard screen.

  • Page 29: Adjustment Of The Hook Positioner's Position

    6-3. Adjustment of the hook positioner’s position (1) Remove the sliding plate. (2) Loosen the hook positioner set screw (No.4) and adjust the hook positioner (No.1) position to align the right side of the projection (No.3) with the right side of the needle (No.2) as shown on the figure. (3) After the adjustment, securely tighten the hook positioner set screw (No.4) and put the sliding plate back on the sewing machine.

  • Page 30: Adjustment Of The Oil Lubrication

    6-4. Adjustment of the oil lubrication (1) Amount of oil supply is controlled by specified injection time for every specified stitch number. The lubrication oil is injected by compressed air. Press the on the standard screen, and press the icon. Select the OIL LUBRICATION icon and enter the setting mode.

  • Page 31: Setting Of The Pressor Foot Movement

    6-5. Setting of the presser foot movement It is not necessary to adjust the presser foot movement with operating the mechanical unit. Please refer to the instructions OPERATION PANEL technical manual and change each setting in matching with the sewing conditions. (1) Adjustment of the presser foot height position: Please refer to [8] Controlling the Presser Foot.

  • Page 32: Adjustment Of The Thread Take Up Spring

    6-7. Adjustment of the thread take up spring 6-7-1. Adjusting movable range of the thread take up spring (1) To adjust the thread take up spring (No.1), loosen the stopper stop screw (No.2) and move the stopper (No.3). When moved the stopper (No.3) in the arrow direction, movable range of the thread take up spring (No.1) is increased.

  • Page 33: Adjustment Of The Thread Tail After The Trimming

    6-8. Adjustment of the thread tail after the trimming (1) Adjust the thread tail with the pre-tension (No.1). (2) When turning the nut (No.2) clockwise, the thread tail becomes shorter. When turning the nut (No.2) counterclockwise, the thread tail becomes longer. <1>...

  • Page 34: Varios Adjustment

    7. VARIOS ADJUSTMENT CAUTION (1) Please make sure to turn the power switch off before adjusting the sewing machine. (2) When adjusting the sewing machine with the power switch on, please be careful not to step on the foot switch by mistake. (3) Please be careful not to be injured by a sharp part such as the needle and the hook point.
  • Page 35 (3) Pull out the thumb screw (No.2) from tensioner shaft (No.5). In this time the bearing (No.6) is removed too. (4) Remove the tension spring (No.1). (5) After exchanging the tension spring (No.1) back the bearing (No.6) and thumb screw (No.2) in order. Then tighten the set screw (No.4) and screw (No.3) in order.

  • Page 36: Adjustment Of The Detector Position Of The Presser Foot Unit

    7-2. Adjustment of the detector position of the presser foot unit According to following procedures, adjust the detector position in case of parts replacement etc. NOTE The presser foot lifting position is setting by 18 mm from top of the sliding plate. NOTICE The presser foot movement is based on the origin detection position.
  • Page 37 (4) Detector (No.4) is installed in machine head. Detector (No.4) detects end of the presser bar (No.5). Before adjustment, it is necessary to make sure following items. <7> <4> <5> <4>: Detector <6> <5>: End of presser bar <6>: Fixing screw <7>: Detector bracket (a) Press the from standard screen and check if the presser foot height value (ZTHK) is [***].
  • Page 38 (5) Loosen the fixing screw (No.6) and move the detector bracket (No.7) upward in advance then tighten the fixing screw (No.6) temporally. (6) Remove the sewing material and work holder and any parts. After make sure the work environment safety, Turn the power switch on. (7) After finish the origin movement, make sure the clearance between the bottom of presser foot and top of the sliding plate is 18 mm.

  • Page 39: How To Replace With A Special Pressor Foot

    (9) Press the presser foot down icon and check the gap between bottom of presser foot and top of sliding plate is 0 to 0.2 mm. If there is any collision sounds when down the presser foot, please readjust above. If the gap more than 0.2 mm, please readjust too.
  • Page 40 (2) Press the icon from the [PF position adjustment] screen. (3) Replace the presser foot with standard one. (4) Press the icon and down the presser foot to the top of the needle plate. In this time, set the gap between bottom of presser foot and top of needle plate to be 0 to 0.2 mm. The screen indicates ZNPP default value (Upper) and current value (Lower).
  • Page 41 (5) After the completion of setting, press the memory icon and then press the icon. NOTE The ZNPP value is flickering until press the icon. (6) Following the screen indication, put the power switch off. - 35 -...

  • Page 42: Adjustment Of The Pressor Foot Holder Position

    7-4. Adjustment of the presser foot holder position (1) Turn off the machine power and down the presser foot (No.7) by hand to the top of the sliding plate. (2) Loosen the each of set screws (No.5) which has presser foot holder (upper) (No.3) and presser foot holder (lower) (No.4).

  • Page 43: Adjustment Of The Thread Trimmer

    7-5. Adjustment of the thread trimmer 7-5-1. Adjustment of the movable knife Thread trimmer system is consist of trimmer cam (No.2) and movable knife (No.1) which connected with link mechanism and fixed knife (No.3). Adjustment of the movable knife (No.1) position is important for steady trimming function.
  • Page 44 (3) Confirm the clearance between movable knife (No.1) and needle (No.5) is in a range of 0 to 0.5 mm. If different, loosen the screw A (No.6) and screw B (No.7) and adjust the clearance. After adjustment tighten the screw A (No.6) and screw B (No.7) and move the movable knife to the farthest position from needle (No.5) by rotating the trimmer cam (No.2) in a counterclockwise direction.

  • Page 45: Adjustment Of Meshing Pressure Between The Movable Knife And The Fixed Knife

    7-5-2. Adjustment of meshing pressure between the movable knife and the fixed knife. (1) Loosen the fixed knife bracket clamp bolt (No.1). (2) Adjust meshing pressure by turning the up and down adjusting screw (No.2), and tighten the bolt (No.1). In advance much loosen the meshing pressure by loosening the adjusting screw (No.2) then tighten little by little so that the meshing pressure increase.

  • Page 46: Adjustment Of The Holding Pressure Of The Bobbin Thread

    7-5-3. Adjustment of the holding pressure of the bobbin thread (1) Loosen the set screw (No.2) for clamping the adjuster (No.1). (2) When the adjuster (No.1) part of (A) is moved upward, the holding pressure becomes weak. On the other hand, when the adjuster (No.1) part of (A) is moved downward, the holding pressure becomes strong.

  • Page 47: Adjustment Of The Trimmer Cam Detector Position

    7-5-4. Adjustment of the trimmer cam detector position The trimmer system has origin detector (No.2) which detects outer periphery of the trimmer cam (No.1). The trimmer system’s home position is that the movable knife (No.3) is in the farthest position from needle (No.4).

  • Page 48: Adjustment Of The Xy Table Detector

    7-6. Adjustment of the XY table detector XY table detecting position is front left corner of sawing area to the needle center. At the first origin movement when turn the machine power on, XY table moves toward above position. After detection, XY table is back to the home position as shown in the following figure.
  • Page 49 Detecting position of X direction <1> <2> Detecting position of Y direction <3> <4> <1>: X detect plate <2>: X detector <3>: Y detect plate <4>: Y detector NOTICE The machine has a function that the motor memorizes the home position at the first home position returning operation after the switch is turned on.

  • Page 50: Adjustment Of X Direction

    7-6-1. Adjustment of X direction (1) Turn the power switch on and press the home position return icon (2) Turn the power switch off when finish the origin return movement. (3) Confirm the distance between end portion of the X frame (No.6) and X movable race (No.7) is 271 mm (PLK-J12060R is 371 mm).

  • Page 51: Adjustment Of Y Direction

    7-6-2. Adjustment of Y direction (1) Remove the screws (No.12) and remove the XY cover (No.11). (2) Turn the power switch on and press the home position return icon (3) Turn the power switch off when finish the origin return movement. (4) Confirm the distance between end portion of the Y movable race (No.14) and end portion of the Y stopper (No.15) is 495 mm (PLK-J12060R is 595 mm).

  • Page 52: Adjustment Of The Y Timing Belt Tension

    7-7. Adjustment of the Y timing belt tension (1) Remove the screws (No.3) and remove the rear table plate (right) (No.1) and rear table plate (left) (No.2). (2) Remove the screws (No.5) of the shutter (No.4) and move the shutter (No.4) to the arrow direction. (3) Loosen the three screws (No.8) of the pulley bracket (No.6).

  • Page 53: Maintenance

    8. MAINTENANCE CAUTION (1) Please make sure to turn the power switch off before cleaning the sewing machine. (2) Please pay attention to that staining your skin or eyes with oil may cause an inflammation. 8-1. Cleaning (1) Remove the dust and the thread waste sticking regularly. 8-2.
  • Page 54 (3) Grease every six months to the following units which consisted by gear mechanism. NOTE Remove the face cover and other covers in advance. <5>: Rack gear which has presser foot unit. <6>: Gear of the needle thread tensioner drive unit. <7>: Gear of the hook rotating unit.

  • Page 55: Disposing Of Oil Waste

    8-3. Disposing of oil waste If the waste oil pan is full filled in the oil bottle (No.1), remove the oil bottle then dispose of the waste oil. <1>: Oil bottle <1> - 49 -...

  • Page 56: Troubleshooting

    9. TROUBLESHOOTING CAUTION (1) Please make sure to turn the power switch off before adjusting the sewing machine. (2) If the adjustment is required while the power switch on, do not step on the foot switch by mistake. Condition Cause Corrective action Reference Upper thread tension is too...
  • Page 57 Frequent skip stitching Clearance between needle Adjust clearance between 6-2-1 happens. and hook is too big. needle and hook properly. Timing of needle and hook is Adjust position of needle and 6-2-2 not proper. hook properly. Needle is bent. Change needle. Needle is at wrong position.
  • Page 58 Upper thread tension is too Stitch forming is loose. Adjust upper thread tension. 5-10 loose. Bobbin thread tension is too Adjust bobbin thread tension. loose. Strength of thread take up Adjust strength of thread take 6-7-2 spring is inadequate. up spring. Presser foot position is not Adjust presser foot position proper.
  • Page 61 MEMO...
  • Page 62 MEMO...
  • Page 63 MEMO...
  • Page 64 Printed in Japan...
