Sealey MES03 Manual

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Instruction
manual
1. safety
Warning! Ensure all Health and Safety, local authority, and general workshop practice regulations are strictly adhered to when using this
‰
equipment.
dO nOt use unit if damaged.
8
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the stand clean for best and safest performance.
9
locate the stand in a suitable work area. Keep area clean and tidy and free from unrelated materials. ensure there is adequate lighting.
9
Use on a firm, level surface capable of sustaining the stand and the load.
9
maintain correct balance and footing. ensure the floor is not slippery and wear non-slip shoes.
9
ensure all non-essential persons keep a safe distance whilst the stand is in use.
9
lock ratchet in position with locking pin before fixing a load and ensure the engine is centred and securely mounted.
9
ensure the stand and load are stable.
9
dO nOt allow untrained persons to use the stand.
9
dO nOt exceed the rated capacity.
8
dO nOt use the stand for purposes other than those for which it is designed.
8
When not in use store stand in a safe, dry, childproof area.
9
2. intrOductiOn
Suitable for supporting large multi-cylinder engines (maximum weight 100kg). The supports can rotate for accessibility to all parts of the engine.
Width and length adjustable. engine stand's frame elongates to allow adjustment for length between mounting points.
3. specificatiOn
model no: .................................................................. mes03
maximum capacity: ...................................................... 100kg
Height: ....................................................................... 480mm
length: ....................................................................... 970mm
4. assembly
4.1. Assemble as Parts diagram overleaf and ensure
fixings are secure.
5. OperatiOn
numbers refer to Parts list overleaf.
5.1. Adjust width of frame to suit engine and tighten locking
bolts (17).
5.2. Use original engine mounting bolts or studding,
washers and nuts of appropriate size to secure the
engine to the stand, using supporting frames (11).
5.3. Ensure all fixings and screws (9) that secure supporting
frames (11) and locking bolts (17) are tight before
rotating engine.
5.4.
Be aware of centre of gravity shifting as an engine is rotated.
5.5. Take the weight of the engine (the help of a second person may be needed) before releasing the ratchet bolt (1).
6. maintenance
6.1. Periodically check tightness of all fixings.
6.2. Keep frame clean (do not use solvents).
y
© Jack Sealey limited

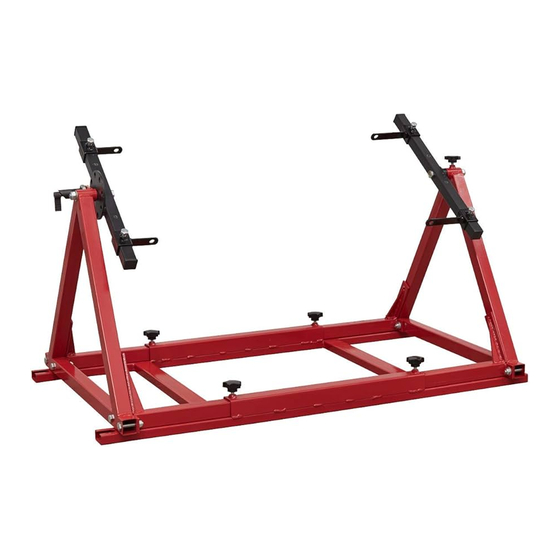

100kg engine rebuild stand - multicylinder
mes03
model no:
Original Language Version meS03| Issue 1 19/12/19
