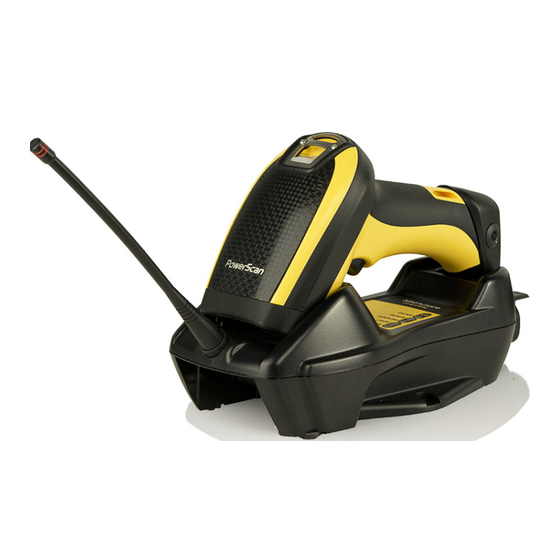

Datalogic PowerScan PM9100 Series Quick Reference Manual
Industrial cordless handheld linear imager bar code reader
Hide thumbs
Also See for PowerScan PM9100 Series:
- Quick reference manual (48 pages) ,
- Product reference manual (362 pages)
Related Manuals for Datalogic PowerScan PM9100 Series
Summary of Contents for Datalogic PowerScan PM9100 Series
- Page 1 PowerScan™ PM9100 Family Industrial Cordless Handheld Linear Imager Bar Code Reader Quick Reference Guide...
- Page 2 Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page. Disclaimer...
-
Page 3: Table Of Contents
Resetting Product Defaults ..........8 Compatibility with the PowerScan™ 8000 family ....9 Set Date and Time (Optional Setting) ........9 Linking the Reader ................10 Link Datalogic RF Devices to Base......10 Power Off ..................10 Aiming Pointer ................11 Technical Specifications ...............12 LED and Beeper Indications ............15... - Page 4 PowerScan™ PM9100...
-
Page 5: End User Software License Agreement (Eula)
2. Scope Of License Granted 2.1 Datalogic grants to End User a personal non-exclusive, non-transferable, per- petual license to use the Software, solely on the Datalogic Product in which it is embedded ("designated Datalogic Product"), in machine-readable form only, solely for End User's internal business purposes. This Agreement does not convey ownership of the Software to End User. - Page 6 3.2 End User shall not sell, assign, sublicense, distribute, lend, rent, give, or other- wise transfer the Datalogic Product to any third party unless such third party agrees with Datalogic in writing to be bound by the terms and conditions of this Agreement. Any such transfer of the Datalogic Product absent such agreement shall be null and void.
- Page 7 52.227-19 or in the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 9.2 If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used, with U.S.
- Page 8 11.2 Notice. All notices required or authorized under this Agreement shall be given in writing, and shall be effective when received, with evidence of receipt. Notices to Datalogic shall be sent to the attention of Datalogic IP Tech S.r.l., Legal & IP Department, Via San Vitalino 13, 40012 Calderara di Reno (Bologna), Italy or such other address as may be specified by Datalogic in writing.
-
Page 9: Software Product Policy
Software Product Policy Software Product Policy Datalogic reserves the right to ship its products with the latest version of software/firmware available. This pro- vides our customers with the very latest in Datalogic soft- ware technology. The only exception to this policy is when the buyer has a... - Page 10 Software Product Policy NOTES viii PowerScan™ PM9100...
-
Page 11: Description
Powerscan™ PM9100 Description The PowerScan™ PM9100 is a feature-rich and rugged lin- ear imager barcode reader. It is offered in several different models to better fit the different needs of each customer. The table below shows the unique features of each model: Model P/N Features PM9100-XX... -
Page 12: Using The Powerscan™ Pm9100
Using the PowerScan™ PM9100 Using the PowerScan™ PM9100 The PowerScan™ PM9100 normally functions by capturing and decoding barcodes. The reader is equipped with an aiming system which helps to aim the target. Figure 1. Aiming System PowerScan™ PM9100 provides an aiming system. If enabled, a partial trigger press produces a flashing scan line which should be aimed over the code, see the figure above. -
Page 13: Reading Angle
Using the PowerScan™ PM9100 Reading Angle Successful scanning is obtained by tilting the reader with respect to the barcode to avoid direct reflections that impair the reading performance, see the figure below. Symbologies with smaller bars or elements (mil size) should be read closer to the unit. -
Page 14: Installing The Battery Pack
To install, charge and/or do any other action on the bat- tery, follow the instructions in this manual. To charge the Battery Pack, See “Charging the Batteries” on page 7. Datalogic recommends annual replacement of rechargeable battery packs to ensure NOTE maximum performance. - Page 15 Use only the authorized power supplies, bat- tery pack, chargers, and docks supplied by CAUTION your Datalogic reseller. The use of any other power supplies can damage the device and void your warranty. Do not disassemble or modify the battery.
- Page 16 Installing the Battery Pack As with other types of batteries, Lithium-Ion (LI) batteries will lose capacity over time. Capacity deterioration is noticeable after one year of service whether the battery is in use or not. It is difficult to precisely predict the finite life of a LI battery, but cell manufacturers rate them at 500 charge cycles.
-
Page 17: Charging The Batteries
Installing the Battery Pack Charging the Batteries Once the BC 90x0 is powered, you can charge the reader's ™ batteries. Place the PowerScan PM9100 into the BC 90x0 cradle. The Reader LED on the cradle/battery charger turns red. The battery is completely charged when the Reader LED on the cradle/battery charger turns green. -
Page 18: Programming
Programming Programming The reader is factory-configured with a set of standard default features. Customize your reader through use of ™ the programming barcodes available in the PowerScan PM9100 Product Reference Guide. Check the correspond- ing features section for your interface, and also the Data Editing and Symbologies chapters of the PRG. -
Page 19: Compatibility With The Powerscan™ 8000 Family
Programming Compatibility with the PowerScan™ 8000 family The PM9100 can be programmed to operate in a mode ™ compatible with the PowerScan 8000 family. For further details and for the relevant configuration strings and labels, refer to the PM8300 Compatibility Product Refer- ence Guide. -
Page 20: Linking The Reader
Linking the Reader Linking the Reader Link Datalogic RF Devices to Base For RF devices, before configuring the interface it is nec- essary to link the handheld with the base. To link the handheld and the base, press the trigger to wake up the handheld, and mount it on the base. -
Page 21: Aiming Pointer
Aiming Pointer Aiming Pointer Enables / disables the aiming pointer. Aiming pointer = disable Aiming pointer = enable Quick Reference Guide... -
Page 22: Technical Specifications
Technical Specifications Technical Specifications The following tables contain Physical and Performance Characteristics, User Environment and Regulatory infor- mation. ITEM DESCRIPTION Physical Characteristics Height: 212 mm Dimensions Length: 110 mm Width: 74 mm PM9100-XX: 405g Weight PM9100-DXX, PM9100-DKXX: 435g Electrical Characteristics Battery Type Li-Ion battery pack 4 hours with external power supply... - Page 23 Technical Specifications ITEM DESCRIPTION Performance Characteristics Light Source Green LED Roll (Tilt) Tolerance ± 45° Pitch Tolerance ± 75° Skew (Yaw) Tolerance ± 70° Print Contrast Mini- 15% minimum reflectance Resolution 2.5 mils Depth of Field (Typical) Symbology: Code 39 5 mils 3 - 32 cm / 1.2 - 12.6"...
- Page 24 Technical Specifications DECODE CAPABILITY GS1 Databar linear codes, UPC/EAN, UPC/EAN P2/P5 Addons, UPC/ EAN Coupons, ISBN, Code128, EAN128, Code39, Code39 Full ASCII, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Dat- alogic 2 of 5, Codablock F Interfaces Supported RS-232, Keyboard Wedge, and USB.
-
Page 25: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional Green Spot also performs useful functions. The following tables list these indications. One exception to the behaviors listed in the tables is that the reader’s func- tions are programmable, and so may or may not be turned on. - Page 26 LED and Beeper Indications INDICATION DESCRIPTION LED BEEPER There is an error Reader sounds in the reader' s one error beep ROM Failure Flashes software/pro- at highest vol- gramming ume. Reader ' c hirps' Indicates that a Limited six times at the host connec- Scanning highest fre-...
- Page 27 LED and Beeper Indications Programming Mode - The following indications ONLY occur when the reader is in Programming Mode. INDICATION DESCRIPTION BEEPER Label Pro- A valid program- LED blinks Reader sounds gramming ming label has continu- four low fre- Mode Entry been scanned.
-
Page 28: Cleaning
Cleaning Cleaning Exterior surfaces and scan windows exposed to spills, smudges or debris require periodic cleaning to ensure best performance during scanning. Use a soft, dry cloth to clean the product. If the product is very soiled, clean it with a soft cloth moistened with a diluted non-aggressive cleaning solution or diluted ethyl alcohol. -
Page 29: Datalogic Limited Factory Warranty
Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Da-... - Page 30 No attempted assignment or transfer in violation of this provision shall be valid or binding upon Datalogic. DATALOGIC' S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATU- TORY OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT.
-
Page 31: Ergonomic Recommendations
Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific writ- ten instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment. -
Page 32: Support Through The Website
Support Through the Website Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the SUPPORT > Industrial Handheld Scanners category link. From this page you can select your product model from the drop-... -
Page 33: Hex-Numeric Keypad
Hex-Numeric Keypad Hex-Numeric Keypad Use the barcodes that follow to enter numbers or alpha characters as you would select characters from a keypad. Quick Reference Guide... - Page 34 Hex-Numeric Keypad Hex-Numeric Keypad (continued) PowerScan™ PM9100...
- Page 35 Hex-Numeric Keypad Hex-Numeric Keypad (continued) Quick Reference Guide...
- Page 36 Hex-Numeric Keypad NOTES PowerScan™ PM9100...
- Page 37 Hex-Numeric Keypad NOTES Quick Reference Guide...
- Page 38 Hex-Numeric Keypad NOTES PowerScan™ PM9100...
- Page 40 ©2013-2017 Datalogic S.p.A. and/or its affiliates • All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.. Datalogic USA, Inc 959 Terry Street | Eugene, OR 97402 |USA...
