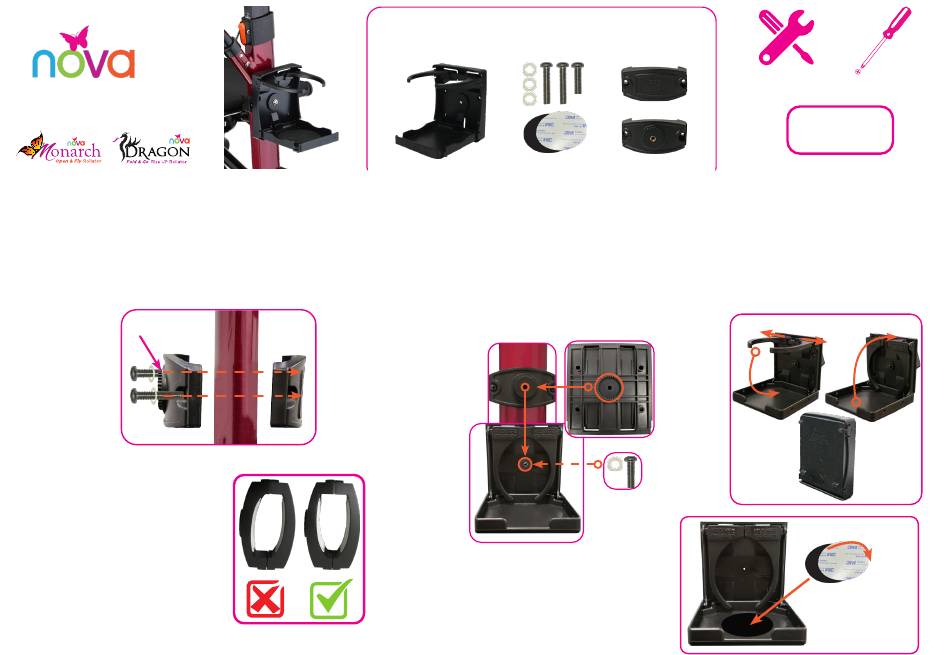

Nova CH-1102 How To Assemble

HOW TO ASSEMBLE
YOUR
FOLDING CUP HOLDER
Item # CH-1102
For Rollators: 4329/4802
1
Align the mounting brackets with the gear facing
outward to the desired location on the side of the
rollator (Figure 1). Insert the two larger screws
and washers through the sides of the mounting
bracket
and tighten with a phillips screw driver.
NO POWER TOOLS.
Inner Plastic
Gear
Figure 1
Note: Ensure the
mounting brackets are
facing each other the
correct way (Figure 2).
a. (1) Cup Holder
b. (1) Hardware Set
a.
2
4
Figure 2
*Revised August 20, 2021
WHAT'S INCLUDED
c. (1) Anti-Slip Rubber Insert
d. (2) Mounting Brackets
b. d.
c.
Attach folding cup holder
on the inner plastic gear
and ensure the base of the
cup holder is parallel to the
ground (rotate cup holder to
adjust along gear if needed).
Secure with washer and small
screw (Figure 3).
Figure 3
Peel off the paper cover
from the anti-slip rubber
insert. Attach to the bottom
of the cup holder (Figure 5).
Quick & Easy
Requires Phililps
Assembly
Screwdriver
Follow these
SIMPLE STEPS
3
Folding cup holder can be
adjusted by sliding the two
clamps to the appropriate size
(Figure 4). To fold up the cup
holder adjust the clamps to
the narrowest setting before
flipping the base up.
CLAMP ADJUSTMENT
Figure 4
Figure 5
