Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
Ensure the dispenser is on a reasonably flat, level floor before loading.
9
Ensure that all fittings are tight and secure.
9
DO NOT use the dispenser for any purpose other than that for which it is designed.
8
2. INTRODUCTION
Single roll dispenser accepts 900mm rolls and can be used either horizontally or vertically. Durable lightweight design with wheels for easy
manoeuvrability.
3. SPECIFICATION
Capacity: . ............................................ 1 x 900mm (roll width)
Max Weight Capacity: .................................20kg (roll weight)
4. CONTENTS
REFER TO PARTS LIST
5. ASSEMBLY
REFER TO PARTS LIST
NOTE: Before assembling, note the location of the "brake bar" (10) mounting holes in the
base (3) in relation to the "cross bar" (5) and spring (12) mounting holes in the
side frames (1,2).
5.1.
Attach side frames (1,2) to base (3) with two M8 x 45 mm hex bolts (4).
DO NOT tighten bolts.
8
5.2.
Attach front "cross bar" (5) to lower set of holes in side frames with two M8 x 45 mm
hex bolts (4). Tighten all bolts in base.
5.3.
Slide "wheel axle" (6) through base and place two M12 flat washers on each end
of the "wheel axle" (6).
5.4.
Slide "fixed wheels" (8) on each end of the wheel axle.
5.5.
Install the two "brake bars" (10) to base with M8 x 45 mm (4) as shown on
the parts diagram.
5.6.
Hook the springs (12), with the rubber spacer (13), into holes on each side frame.
5.7.
Install the "tape reel" (16) to inside of both side frames as shown on the parts diagram.
6. MAINTENANCE
6.1.
If in constant use, check the tightness of all fixings on a weekly basis.
© Jack Sealey Limited

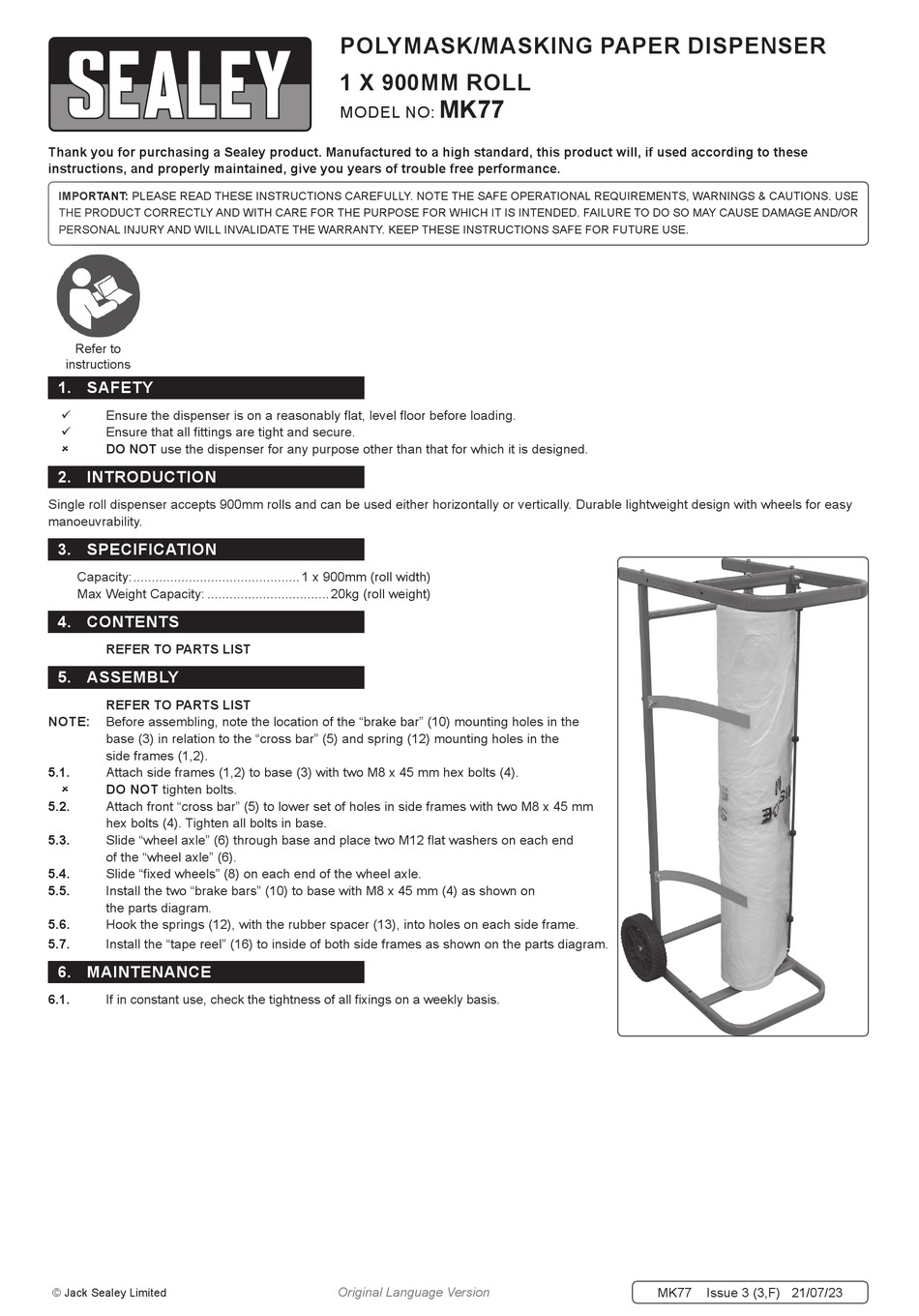

POLYMASK/MASKING PAPER DISPENSER
1 X 900MM ROLL
MK77
MODEL NO:
Original Language Version
MK77 Issue 3 (3,F) 21/07/23
