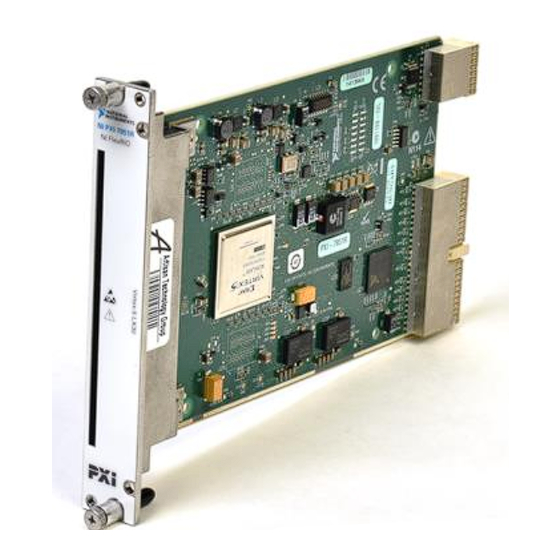

National Instruments NI FlexRIO PXI-7951R Installation Manual
Fpga module
Hide thumbs
Also See for NI FlexRIO PXI-7951R:
- Installation manual (18 pages) ,
- Specification & installation manual (18 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for National Instruments NI FlexRIO PXI-7951R
Summary of Contents for National Instruments NI FlexRIO PXI-7951R
- Page 1 PXIe-7962R...
-
Page 2: Table Of Contents
NI FlexRIO FPGA Module ™ Installation Guide and Specifications This document explains how to install your NI FlexRIO system, comprised of an NI FlexRIO FPGA module (NI PXI/PXIe-79xxR) and an NI FlexRIO adapter module. This document also contains the specifications for your NI FlexRIO FPGA module. Contents How to Use Your NI FlexRIO Documentation Set .............. -
Page 3: Required Components
Table 1. NI FlexRIO Documentation Locations and Descriptions Document Location Description NI FlexRIO FPGA Module Available in your FPGA Contains installation instructions for your Installation Guide and module hardware kit and NI FlexRIO system and specifications for Specifications from the Start Menu. your FPGA module. - Page 4 – (Optional) LabVIEW Real-Time Module The NI 1483 adapter module requires the NI-IMAQ instrument driver instead of NI FlexRIO Adapter Module Support. © National Instruments Corporation NI FlexRIO FPGA Module Installation Guide...
-
Page 5: Step 1. Install The Application Software And Driver
Notes for installation instructions and information about getting started with the LabVIEW FPGA Module. Documentation for the LabVIEW FPGA Module is available by selecting Start» All Programs»National Instruments»LabVIEW»LabVIEW Manuals. (Optional) LabVIEW Real-Time Module—Refer to the LabVIEW Real-Time Module Release and Upgrade Notes for system requirements, installation instructions, and additional information about using the LabVIEW Real-Time Module. -
Page 6: Step 2. Install The Ni Flexrio Devices
Notify NI if the device appears damaged in any way. Do not install a damaged device into the chassis. Store the NI FlexRIO FPGA module and NI FlexRIO adapter module in the antistatic envelopes when not in use. © National Instruments Corporation NI FlexRIO FPGA Module Installation Guide... - Page 7 Installing the NI FlexRIO FPGA Module Complete the following steps to install an NI FlexRIO FPGA module: Note You must install the software before installing the hardware. For software installation information, refer to Step 1. Install the Application Software and Driver.
- Page 8 Confirming That the Device Is Recognized in Measurement & Automation Explorer (MAX) To confirm that your device is recognized, complete the following additional steps: Select Start»All Programs»National Instruments»Measurement & Automation. Expand Devices and Interfaces. Verify that the device appears under Devices and Interfaces»RIO Devices, as shown in Figure 6.
-
Page 9: Ni Flexrio Fpga Module Signals
Installing the NI FlexRIO Adapter Module Complete the following steps to connect the NI FlexRIO adapter module to the NI FlexRIO FPGA module. Note Skip this step if you are not using an adapter module. Gently insert the guide pins and the high-density card edge of the NI FlexRIO adapter module into the corresponding connectors of the NI FlexRIO FPGA module, as shown in Figure 7. - Page 10 GPIO_48 GPIO_65 GPIO_48_n GPIO_65_n RSVD_B2 on the NI PXI-795 x R RSVD_B1 on the NI PXI-795 x R Figure 8. NI FlexRIO FPGA Module Front Connector Pin Assignments and Locations © National Instruments Corporation NI FlexRIO FPGA Module Installation Guide...
-
Page 11: Specifications
Specifications This section lists the specifications for your NI FlexRIO FPGA module. Refer to your adapter module documentation for the adapter module specifications. NI FlexRIO FPGA modules include the following devices: • NI PXI-7951R • NI PXI-7952R • NI PXI-7953R •... - Page 12 NI PXIe-796xR ......... PXI triggers, PXI_CLK10, PXI star trigger, PXIe_DStarA, PXIe_DStarB, PXIe_DStarC, and PXIe_Sync100 The 132 channels span across four FPGA banks. Refer to the NI FlexRIO FPGA Module Signals section for more information about banks. © National Instruments Corporation NI FlexRIO FPGA Module Installation Guide...
- Page 13 Onboard DRAM Memory size NI PXI-795xR ...........2 banks, 64 MB per bank NI PXIe-796xR .........2 banks, 256 MB per bank Maximum theoretical data rate NI PXI-795xR ...........800 MB/s per bank NI PXIe-796xR .........1.6 GB/s per bank Bus Interface PXI ..............Master, slave PXI Express Form factor..........x4 PXI Express, specification v1.0 compliant Slot compatibility........x4, x8, and x16 PXI Express or PXI Express...
- Page 14 MIL-PRF-28800F, Class 3. Voltage ranges are dependent on the I/O standards available for your application. For more information on available I/O standards, refer to Xilinx documentation, available at www.xilinx.com © National Instruments Corporation NI FlexRIO FPGA Module Installation Guide...
- Page 15 Safety This product meets the requirements of the following standards of safety for electrical equipment for measurement, control, and laboratory use: • IEC 61010-1, EN 61010-1 • UL 61010-1, CSA 61010-1 Note For UL and other safety certifications, refer to the product label or the Online Product Certification section.
-
Page 16: Where To Go For Support
Where to Go for Support The National Instruments Web site is your complete resource for technical support. At you have access to everything from troubleshooting and application ni.com/support development self-help resources to email and phone assistance from NI Application Engineers. - Page 17 Instruments Patents Notice at ni.com/patents. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. © 2010–2011 National Instruments Corporation. All rights reserved.
