USE AND CARE GUIDE
20 INCH 4 CYCLE REAR TINE TILLER
Questions, problems, missing parts?
Before returning to the store, call
Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
We appreciate the trust and confidence you have placed in Legend Force through the purchase of this tiller. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
THANK YOU
improvement needs. Thank you for choosing Legend Force!
Item #LF20212RT
Model #1005697758
Advertisement
Table of Contents
Related Manuals for LEGEND FORCE LF20212RT
Summary of Contents for LEGEND FORCE LF20212RT
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Legend Force through the purchase of this tiller. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Safety Information ........2 Assembly . - Page 3 Safety (continued) GENERAL SAFETY □ □ Do not put hands or feet near or under rotating parts. Keep If the equipment should start to vibrate abnormally, stop clear of discharge area at all times as the rotating tines the engine and check immediately for the cause. Vibration can cause injury.
- Page 4 Safety (continued) GENERAL SAFETY □ □ Always be sure of your footing. A slip and fall can cause Remove gas-powered equipment from the truck or serious personal injury. If you feel you are losing your trailer and refuel it on the ground. If this is not possible, balance, release the control lever immediately and the then refuel such equipment on a trailer with a portable tine will stop rotating.
- Page 5 Safety (continued) GENERAL SAFETY □ Do not modify engine. Before cleaning, repairing, or inspecting, make certain the tines and all moving parts have stopped. Disconnect the □ To avoid serious injury or death, do not modify engine in any spark plug wire and ground against the engine to prevent unintended starting.
-
Page 6: Warranty
From the date of original purchase, Legend Force warrants to the original purchaser that each lawn and garden product sold, shall be free from defect in material and workmanship for the items and time period set forth below. Legend Force, at its discretion, agrees to repair or replace any defective part that upon examination, inspection, and testing by a Legend Force authorized service dealer, is found to be defective within the original warranty period. - Page 7 Legend Force obligation under this warranty is exclusively limited to product repair or replacement and shall not be liable fo any incidental or consequential damages including, but not limited to, the expense of delivering product to and from repair center, loss or damage to personal property, loss of revenue, telephone charges, loss of time, or inconvenience.
-
Page 9: Assembly
Assembly Assembling the Depth Regulator NOTICE: This tiller is shipped without gasoline or oil in the engine. Fill up the gasoline and oil BEFORE operating your machine. □ Insert the depth regulator (C) through the protective shields (D) opening into the top of the depth regulator bracket with handle facing to the rear. - Page 10 Assembly (continued) Wheel Direction Assembling the Upper Handle Make sure to install the wheel in the correct direction. See bottom left graphic for correct wheel direction. □ Align the upper handle pre-drilled holes to the lower handle pre-drilled holes. Insert M8x50 bolts (JJ) through Wheel Drive Pins the inside of the handle.
- Page 11 Assembly (continued) □ FOR WHEEL DRIVE MODE: Slide wheel outward and align the Check Tire Pressure . t f Secure wheel locking pin (KK) by pushing in as far as it will go □ (Models with pneumatic tires) Check the air pressure in then wrapping ring around the wheel shaft as shown.
- Page 12 Assembly (continued) Assembling the Tines □ Check the orientation of the tine blade. The sharp cutting edge should be facing the direction of tine rotation for your tiller. Insert tines (E) on each side through the tine axle □ located on the rear of the tiller. Align pre-drilled holes and insert clevis pin (EE) then insert cotter pin (FF) to secure in place.
-
Page 13: Operation
Operation Adding Gas and Oil □ We recommend the use of 10W-30 oil. Other high-quality detergent oils are acceptable if classified for service SF, SG, SH. SJ or higher. WARNING: Use extreme care when handling gasoline. Gasoline is extremely flammable and the vapors are □... - Page 14 Operation (continued) Controls and Features DEPTH REGULATOR □ In hard compacted soil, it helps restrain the tiller's forward RECOIL STARTER motion. In looser soil, it controls how deeply the tines can dig into the ground. □ The recoil starter is attached to the right side of the upper handle.
- Page 15 Operation (continued) Pre-Start Inspection Starting the Tiller □ Make sure all safety guards are in place and all nuts and □ The controls required to start and run the tiller are located bolts are secure. on the engine and are marked with the icon for choke, slow and fast for the throttle, and on/off fuel valve.
- Page 16 Operation (continued) Drive Safety Control Levers Shutting Down the Tiller FORWARD LEVER □ To stop the engine at any time, turn engine ON/OFF switch to the off position. To stop wheels and tines at any time, □ Engages wheels and tines into forward. release drive safety control levers to neutral position.
- Page 17 Operation (continued) Handle Height Adjustment Wire Tension Adjustment □ Proper wire tension is critical to good performance. After □ 1/2 hour of operation, all cables may have to be adjusted. The ideal height of the handlebar varies with operator After using the tiller for the first time check tension after height and the depth of tilling.
- Page 18 Operation (continued) Tilling Tips HIGH ALTITUDE OPERATION □ If operating equipment with engines regularly at altitudes over □ The key to successful tilling is to begin with a shallow cut on 5,000 feet, the carburetor’s air-fuel mixture will be too rich the first pass, and then work an inch or two deeper on each and emmissions may increase.
-
Page 19: Maintenance
Maintenance Always observe safety rules when performing any □ Lubricate the wheels at least once a season with light oil (or maintenance. motor oil). If wheels are removed for any reason, lubricate surface of the axle bolt and inner surface of the wheel with light oil. - Page 20 Maintenance (continued) MAINTENANCE SCHEDULE □ Your tiller has been designed and produced by the industry’s leading manufacturer of outdoor power equipment to provide you with years of reliable operation. Keeping your tiller in top running condition will prolong its life, and help you obtain optimum performance. □...
- Page 21 Maintenance (continued) The following information will help you make the necessary □ Place belt under reverse belt guides and gently pull the engine checks and perform the procedures required to follow the recoil rope while forcing the belt over the edge of the engine normal care recommendations made for your tiller.
- Page 22 Maintenance (continued) CHECK OR FILL ENGINE CRANKCASE □ Add oil. Do not overfill. Use a clean, high quality detergent oil. Do not mix oil with gasoline. Oil level must be full. Oil ll plug □ Check the oil level by removing oil fill plug. Oil level should be up to the bottom of the fill plug opening.
- Page 23 Maintenance (continued) CHECK TIRE PRESSURE □ (Models with pneumatic tires) Check the air pressure in both tires. The air pressure should be between 25 PSI and 30 PSI (pounds per square inch). □ If the air pressure is lower than 25 PSI, inflate the tires air pressure with air pump.
-
Page 24: Care, Cleaning And Storage
Care, Cleaning and Storage Follow the steps below to prepare your tiller for storage. □ Protect wheels and axles from rust by removing the lockpin and sliding the wheel off the hub. □ Coat the axles lightly with axle grease. □... -
Page 25: Troubleshooting
Troubleshooting Problem Cause Solution □ □ Add fresh fuel. The engine is difficult Out of fuel. to start. □ □ The engine switch is Off. Turn the engine switch on. □ □ The engine is not primed. Move the choke lever to the ON position. □... -
Page 26: Service Parts
Service Parts Part Description Quantity Part Description Quantity Drive Pulley Air cleaner Assy Wheel Recoil Forward Belt Tines Reverse Belt Wheel Tine Driven Pulley Forward Belt Reverse Belt Recoil Air Filter Assembly HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance. - Page 27 Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
Need help?
Do you have a question about the LF20212RT and is the answer not in the manual?
Questions and answers

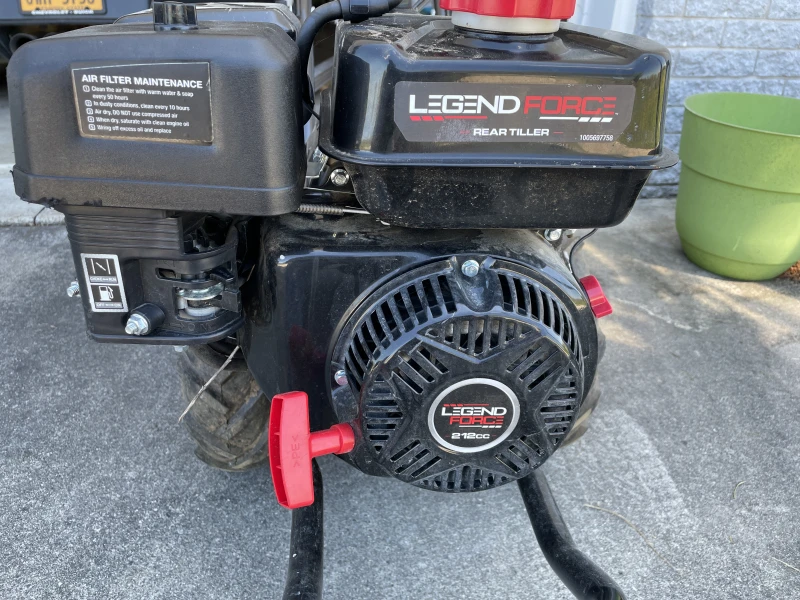

I received a new engine for the Legend Force Tiller - How do I get the coupling in the engine to match up with the coupling in the gear box?
We’re i can find parts list for LEGEND FORCE LF20212RT
The parts list for the LEGEND FORCE LF20212RT can be found in the "Service Parts" section of the manual on page 26.
