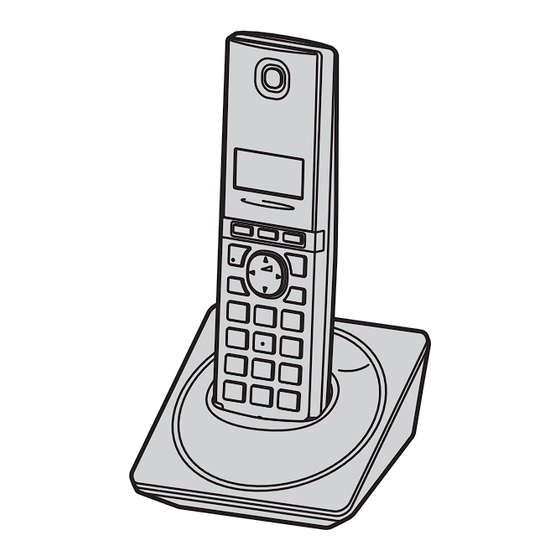

- Page 1 Operating Instructions Digital Cordless Phone Model No. KX-TG1711SA KX-TG1712SA KX-TG1713SA Before initial use, see “Getting Started” on page 9. Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference.
-
Page 2: Table Of Contents
Table of Contents Introduction Model composition ........3 Accessory information ........3 Graphical symbols for use on equipment and their descriptions ..........4 Important Information For your safety ..........5 Important safety instructions ......6 For best performance ........6 Other information .........7 Specifications ..........8 Getting Started Setting up .............9 Controls ............11 Display icons ..........12... -
Page 3: Introduction
Handset cover Charger – See page 3 for replacement battery information. The handset cover comes attached to the handset. Additional/replacement accessories Please contact your nearest Panasonic dealer for sales information. Accessory item Model number/Specifications Rechargeable Battery type: batteries – Nickel metal hydride (Ni-MH) –... -
Page 4: Graphical Symbols For Use On Equipment And Their Descriptions
Introduction Graphical symbols for use on equipment and their descriptions Symbol Explanation Symbol Explanation Alternating current (A.C.) Class P equipment (equipment in which protection against electric shock relies on Double Insulation or Reinforced Insulation) Direct current (D.C.) “ON” (power) Protective earth “OFF”... -
Page 5: Important Information
Important Information R Do not allow the AC adaptor or telephone line cord to be excessively pulled, bent or For your safety placed under heavy objects. R Do not place the handset on the base unit To prevent severe injury and loss of life/ when battery cover is removed. -
Page 6: Important Safety Instructions
Base unit location/avoiding noise R Only use a compatible base unit (or charger) to charge the batteries. Do not The base unit and other compatible Panasonic tamper with the base unit (or charger). units use radio waves to communicate with Failure to follow these instructions may each other. -
Page 7: Other Information
Important Information – facing away from radio frequency transmitters, such as external antennas Other information of mobile phone cell stations. (Avoid putting the base unit on a bay window or R The applied nameplate is located at the near a window.) bottom or rear of the product. -
Page 8: Specifications
Important Information Specifications R Standard: DECT (Digital Enhanced Cordless Telecommunications), GAP (Generic Access Profile) R Frequency range: 1.88 GHz to 1.90 GHz R RF transmission power: Approx. 10 mW (average power per channel) 250 mW (max.) R Power source: 100–240 V AC, 50/60 Hz R Rechargeable battery: AAA (R03) Ni-MH battery (1.2 V, 550 mAh) R Power consumption:... -
Page 9: Getting Started
Getting Started Note: Setting up R Use only the supplied Panasonic AC adaptor PNLV226CE. Connections n Base unit Connect the AC adaptor to the unit by pressing the plug firmly. Fasten the cord by hooking it. Connect the AC adaptor to the power outlet. - Page 10 Note for battery installation R Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted on page 3, 6. Note for battery charging Battery charging R It is normal for the handset to feel warm during charging.
-
Page 11: Controls
Getting Started Ni-MH battery performance (supplied Handset batteries) Operation Operating time In continuous use 15 hours max. Not in use (standby) 170 hours max. Note: R Actual battery performance depends on usage and ambient environment. Controls Base unit MWN (Phonebook) Charge contacts N (Talk) N (Locator) -
Page 12: Display Icons
Getting Started – (Volume: MDN or MCN) : Adjust the receiver volume while talking. Language setting – MFN ( : Caller list): View the caller list. – MEN (T: Redial): View the redial list. Display language N#110 Display icons MbN: Select your desired language. a N a MeN Handset display items Item... -
Page 13: Making/Answering Calls
Making/Answering Calls Making calls Answering calls Lift the handset and then dial the phone Lift the handset and press M N when number. the unit rings. R To correct a digit, press MCN. When you finish talking, press MeN or Press M N to make the call. - Page 14 Making/Answering Calls Note: Recall/flash R To prevent other users from joining your MRN allows you to use the special features of conversations with outside callers, turn the your host PBX such as transferring an privacy mode on (page 19). extension call, or accessing optional telephone services.
-
Page 15: Intercom
Making/Answering Calls Intercom Available for: KX-TG1712/KX-TG1713 Intercom calls can be made between handsets. Note: R When paging the handset, the paged handset beeps for 1 minute. R If you receive an outside call while talking on the intercom, the interrupt tone sounds. To finish intercom, press MeN. -
Page 16: Phonebook
Phonebook Finding and calling from a Phonebook phonebook entry You can add 50 names (16 characters max.) and phone numbers (24 digits max.) to the phonebook. To scroll through all entries MbN: Select the desired entry. a M Important: To search by first character R All entries can be shared by any registered Press the dial key (0 to 9, or #) handset. - Page 17 Phonebook Chain dial This feature allows you to dial phone numbers in the phonebook while you are on a call. This feature can be used, for example, to dial a calling card access number or bank account PIN that you have stored in the phonebook, without having to dial manually.
-
Page 18: Programming
Programming Menu list To access the features, there are 2 methods. n Scrolling through the display menus Press MCN or MDN to select the desired main menu. a M Press MCN or MDN to select the desired item from the next sub-menus. a M Press MCN or MDN to select the desired setting. - Page 19 Programming Main menu: “Caller List” Operation Code Viewing the caller list. #213 Main menu: “InitialSetup” Sub-menu 1 Sub-menu 2 Settings Code Display <On> #198 – Clock Disp. Level 1–6 #145 – Contrast <3> (Display contrast) – <On> #165 – Keytones –...
-
Page 20: Alarm
Programming If you program these settings using one of the handsets, you do not need to program the same item using another handset. (KX-TG1712/KX-TG1713) This feature allows the unit to automatically adjust the date and time each time caller information including date and time is received. To turn this feature on, select “Caller ID”. -
Page 21: Caller Id Service
Caller ID Service Phonebook name display Using Caller ID service When caller information is received and it matches a phone number stored in the Important: phonebook, the stored name in the R This unit is Caller ID compatible. To use phonebook is displayed and logged in the Caller ID features, you must subscribe to a caller list. - Page 22 Caller ID Service Erasing all caller information MFN ( ) MbN: Select the desired entry. a MbN: “Erase” or “Erase All” a N 2 times...
-
Page 23: Useful Information
Useful Information Voicemail service Voicemail is an answering service that may be offered by your phone service provider. This service can also record calls when you are unavailable to answer the phone or when your line is busy. Messages are recorded on the phone company system. When you have new messages, is displayed on the handset if message indication service is available. - Page 24 Useful Information Numeric entry table (0-9) Greek character table ( Extended 1 character table ( R The following are used for both uppercase and lowercase: Extended 2 character table ( R The following are used for both uppercase and lowercase:...
-
Page 25: Error Messages
Useful Information Cyrillic character table ( Error messages Display message Cause/solution Base NoPower R Confirm the base unit’s AC adaptor is connected to the unit and the power outlet correctly. No Link R The handset has lost communication with the base unit. Move closer to the base unit and try again. - Page 26 Useful Information Problem Cause/solution The unit does not work. R Make sure the batteries are installed correctly (page 9). R Fully charge the batteries (page 10). R Check the connections (page 9). R Unplug the base unit’s AC adaptor to reset the unit and turn off the handset.
- Page 27 Useful Information Making/answering calls, intercom Problem Cause/solution R The handset is too far from the base unit. Move closer. is flashing. R The base unit’s AC adaptor is not properly connected. Reconnect AC adaptor to the base unit. R The handset is not registered to the base unit. Register it (page 28).
- Page 28 Useful Information Liquid damage Problem Cause/solution Liquid or other form of R Disconnect the AC adaptor and telephone line cord from the moisture has entered the base unit. Remove the batteries from the handset and leave to handset/base unit. dry for at least 3 days. After the handset/base unit are completely dry, reconnect the AC adaptor and telephone line cord.
-
Page 29: Wall Mounting
Useful Information Wall mounting Note: R Make sure that the wall and the fixing method are strong enough to support the weight of the unit. R Drive the screws (not supplied) into the wall (recommended heights £ 1.5 m). Screws 25 mm Caution: R Place the handset properly on the cradle to prevent harm from accidental fall. -
Page 30: Index
Index Volume Receiver: 13 Index Ringer for outside call (Handset): 13 Wall mounting: 29 Alarm: 20 Answering calls: 13 Auto talk: 13, 19 Battery: 9, 10 Call share: 14 Call waiting: 14 Call Waiting Caller ID: 14 Caller ID service: 21 Caller list: 21 Caller list edit: 21 Chain dial: 17... - Page 31 Notes...
- Page 32 We recommend keeping a record of the following information to assist with any repair under warranty. Serial No. Date of purchase (found on the bottom of the base unit) Name and address of dealer © Panasonic Entertainment & Communication Co., Ltd. 2023 PNQP1820ZA PP0323YL0...
