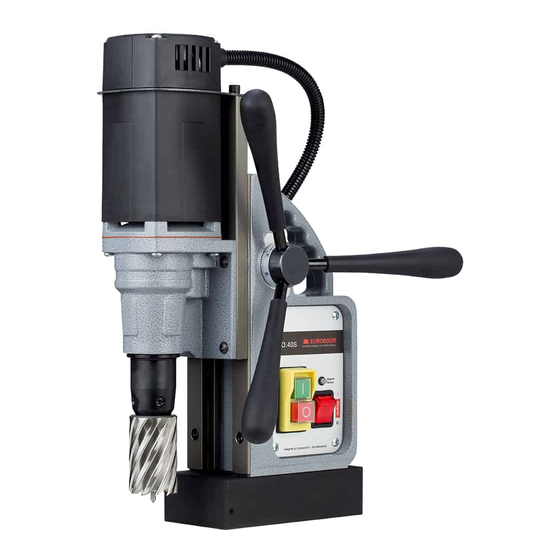

- Page 1 Operators manual version 1.0 EN Magnetic drilling machine ECO.40S Serial no.: _______________________ Date of purchase: _______________________...
- Page 2 Congratulations on your purchase of the Euroboor ECO.40S portable magnetic drilling machine. Your model is designed to produce superior holes quickly and efficiently. Through years of experience, constant innovation and development, Euroboor is committed to provide you with metal cutting tools and products to help you be more productive.
-
Page 3: Table Of Contents
Table of contents Table of contents 1. Safety 1.1 General safety instructions 1.2 Specific safety information 2. Description 2.1 Intended use 2.2 Description and features 2.3 Box contents 2.4 Serial number 2.5 Technical data 2.6 Symbols 2.7 Environmental 3. Preparation & adjustment 3.1 Assembly 3.2 Prior to use 4. -
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the “General Safety Instructions”, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using electrical tools basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury including following. - Page 5 If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. 9. Use only accessories that are recommended by Euroboor for your model. Accessories that may be suitable for one machine, may become hazardous when used on another machine.
-
Page 6: Specific Safety Information
1.2 Specific safety information • Keep your fingers well out of the drill area; • Avoid touching the drilled core that is automatically ejected by the centering pin when the working procedure is finished. Contact with the core when it is hot, or if it falls, can cause personal injuries;... -
Page 7: Description
EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. 2.2 Description and features... -
Page 8: Box Contents
2.3 Box contents 1 Carrying case 1 Magnetic drilling machine 1 Instruction manual 3 Handles 1 Drill guard + 2 bolts 1 Oil tank + attachment pin 1 Bottle cutting oil 4 Allen keys (2.5, 3, 4, 5) 1 Safety chain 1 Set of ear plugs 1 Pair of safety glasses 1 Pair of gloves... -
Page 9: Technical Data
2.5 Technical data ECO.40S ANNULAR CUTTERS Ø 12 – 40 mm Ø 7/16 – 1 9/16” TWIST DRILLS Ø 1 – 16 mm Ø 1/16 – 5/8” THREADING COUNTERSINKING Ø 10 – 45 mm Ø 3/8 – 1 3/4” LENGTH 264 mm 10 3/8”... -
Page 10: Symbols
2.6 Symbols Symbol Term, meaning Explanation Be absolutely sure to read the enclosed Read documentation documentation such as the Instruction Manual and the General Safety Instructions. Wear ear protection Use ear protection during operation. Wear eye protection Use eye-protection during operation. Danger/warning/caution Observe the information in the adjacent text! European conformity symbol... -
Page 11: Environmental
2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. -
Page 12: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury. -
Page 13: Prior To Use
Please make sure that the contacting surface for the magnet is level, clean and rust-free. Remove any varnish or primer. When working on materials that are not magnetizable, suitable fixation devices, obtainable as accessories from EUROBOOR, e. g. suction plate, vacuum plate or pipe-drilling device must be used. -
Page 14: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum operating facility and safety. -
Page 15: Electromagnet
4.2 Electromagnet Make sure the magnetic drilling machine is placed on a smooth, clean, level and solid surface without any objects or dubree in between to guarantee maximum adhesion. The workpiece must be at least 5 mm thick for the magnet to stick, but minimal 3 mm thick to hold the weight of the machine and to drill safely. -
Page 16: Switching Motor On And Off
WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste Make sure to use only suitable cutting oil or fluid. Euroboor offers a wide range of cutting lubricants for all tool and material combinations. Proper cooling will help you create better and faster results,... -
Page 17: Working With Operation Tools
5 Working with operation tools 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. - Page 18 3. Use the pilot pin to position the machine and in the correct position, with the tip of the pilot pin to meet the marked center of the hole. 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece.
-
Page 19: Twist Drills
5.2 Twist drills 1. Fit the twist drill a. Straight shank twist drills Use an Weldon to drill chuck adapter (such as Euroboor IBK.14, ¾” Weldon to ½”x20 UNF) to fit a drill chuck and straight shank twist drill accordingly. [image 3-2]... -
Page 20: Countersinks
Weldon shank twist drills Directly fit a Weldon shank twist drill (such as Euroboor SPI/SSPI-series) directly to the machine [image 3-3] 2. Precisely mark the center of the hole, and use the tip of the twist drill to position the machine and in the correct position, with the tip of the twist drill to meet the marked center of the hole. -
Page 21: Maintenance
6. Maintenance Your EUROBOOR power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 22 Repair, modification and inspection of Euroboor Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorized dealer. The spare parts list will be helpful if presented with the machine to the Euroboor dealer for service when requesting repair or other maintenance.
-
Page 23: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective Control Unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 24 Insufficient magnetic force - Damaged or defective wiring - Bottom of magnet not clean and dry - Bottom of magnet not flat - Work piece is not bare metal - Work piece is not clean or flat - Work piece is less than 10 mm (too thin) - Defective Control Unit - Defective magnet Frame under voltage...
-
Page 25: Exploded View & Spare Part List
8. Exploded view & spare part list 8.1 Exploded views ECO.40S... - Page 26 ECO.40S CONTINUED...
- Page 27 ECO.40S CONTINUED...
-
Page 28: Spare Part Lists
030E.5033 Sealant 040S.1010 Magnet 220V 030.0009 Bearing 6004DDU 040S.1010A Magnet 110V 032.0216 Screw CAS.40S Case ECO.40S (black with inlay) 030E.5035 Spindle inc. spring set 036.2019 Coolant tank 030E.5037 Spring set KSP.P Pin and knob for cooling tank 37-41 020.0471 Screw IBO.0.2L... -
Page 29: Wiring Diagram
8.3 Wiring diagram ECO.40S...
