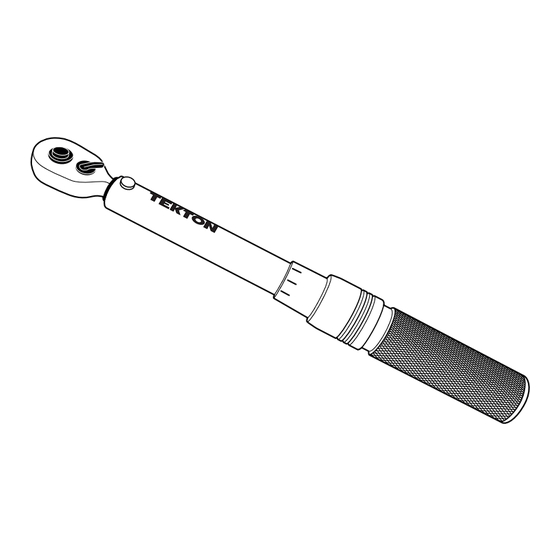

tekton TRQ-21101 Operator's Manual

Torque wrench
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

TORQUE WRENCH
OPERATOR'S MANUAL
STORE THIS MANUAL IN A SAFE
PLACE FOR FUTURE REFERENCE
NEED HELP?
888-648-3371
support@tekton.com
Please read and understand entire manual, including all safety information, before using torque
wrench. This tool is a precision measuring instrument. Handle with care and store properly. Do
not attempt to increase leverage of this wrench with any other device. Failure to follow all
instructions could result in damage to torque wrench, property damage, or injury.
• At low torque settings, pull wrench slowly to observe click.
• Wrench is shipped ready to use, calibrated and tested to an accuracy of +/- 4% in CLOCKWISE
direction and +/- 6% in COUNTERCLOCKWISE direction. To maintain this accuracy, it is
important that wrench is stored with torque scale at lowest setting, 10 in.-lb (1.1 Nm). This
setting relieves extra tension on the internal spring, eliminating fatigue that can adversely affect
accuracy.
Model
TRQ-21101
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRQ-21101 and is the answer not in the manual?

Questions and answers

Related Manuals for tekton TRQ-21101

Summary of Contents for tekton TRQ-21101

  • Page 1 Model TRQ-21101 ® TORQUE WRENCH OPERATOR’S MANUAL STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE NEED HELP? 888-648-3371 support@tekton.com Please read and understand entire manual, including all safety information, before using torque wrench. This tool is a precision measuring instrument. Handle with care and store properly. Do not attempt to increase leverage of this wrench with any other device.
  • Page 2 Fig. A SETTING TORQUE READING KNURLED HANDLE HANDLE BODY MAIN SCALE This is a dual-range torque wrench marked with inch pounds (in.-lb.) and Newton meters (Nm) on opposite sides of handle. Wrench measures torque in clockwise and counterclockwise directions. MICROMETER SCALE LOCKING COLLAR The torque scale is marked on the handle body with more precise subdivisions on the knurled...
  • Page 3 MAINTENANCE AND STORAGE STORE AT Fig. E 10 IN.-LB. 1. If wrench has not been used for a long period of time, operate it several times at IN.-LB. a low torque setting. This will allow internal lubricant to recoat moving parts. 2.
