tekton 24340 Operator's Manual

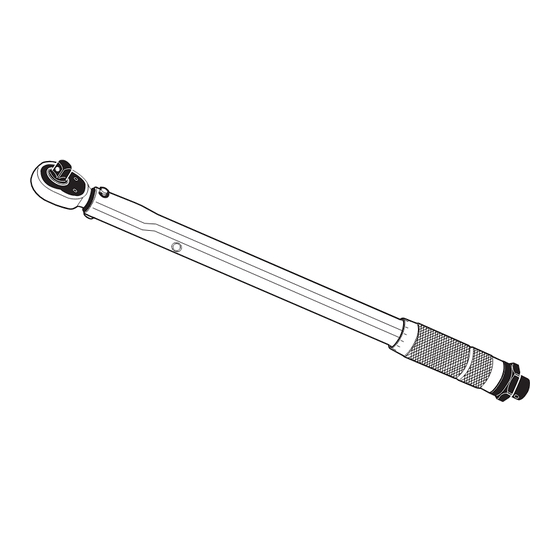

Torque wrench

TORQUE WRENCH

OPERATOR'S MANUAL

STORE THIS MANUAL IN A SAFE

PLACE FOR FUTURE REFERENCE

Please read and understand entire manual, including all safety information, before using torque

wrench. This tool is a precision measuring instrument. Handle with care and store properly. Do

not attempt to increase leverage of this wrench with any other device. Failure to follow all

instructions could result in damage to torque wrench, property damage, or injury.

• At low torque settings, pull wrench slowly to observe click.

• Wrench is shipped ready to use, calibrated and tested to an accuracy of +/- 4%. To maintain this

accuracy, it is important that wrench is stored at lowest torque setting, 25 .-lb (33.9 Nm).

This setting relieves extra tension on the internal spring, eliminating fatigue that can adversely

affect accuracy.

NEED HELP?

888-648-3371

support@tekton.com

Model #

24340

Table of Contents

Need help?

Do you have a question about the 24340 and is the answer not in the manual?

Page 1 Model # 24340 ® TORQUE WRENCH OPERATOR’S MANUAL STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE NEED HELP? 888-648-3371 support@tekton.com Please read and understand entire manual, including all safety information, before using torque wrench. This tool is a precision measuring instrument. Handle with care and store properly. Do not attempt to increase leverage of this wrench with any other device.
Page 2: Wrench Operation
SETTING TORQUE READING Fig. A HANDLE BODY KNURLED This is a dual-range torque wrench marked with HANDLE MAIN SCALE foot pounds ( .-lb.) and Newton meters (Nm) on opposite sides of handle. The torque scale is marked on the handle body with more precise subdivisions on the knurled MICROMETER SCALE LOCK NUT...
Page 3 MAINTENANCE AND STORAGE STORE AT 25 FT.-LB. 1. If wrench has not been used for a long period of time, operate it several times at a low torque setting. This will allow internal lubricant to recoat moving parts. FT.-LB. 2. When wrench is not in use, keep adjustment at lowest torque setting, 25 .-lb.
