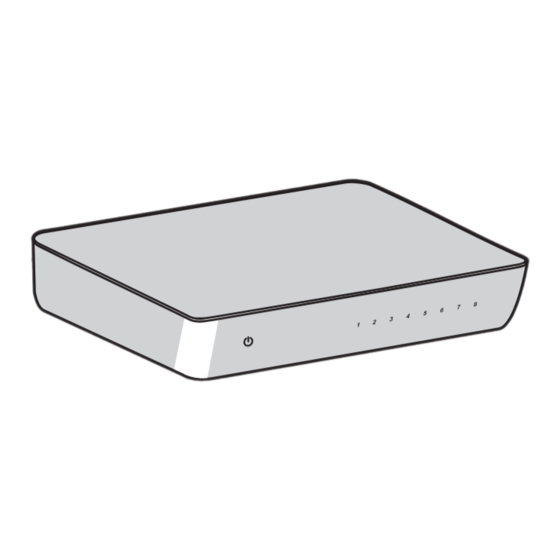

S1700-8G-AC Ethernet Switch User Manual & Installation Quick Start S1700-8G-AC以太网交换机 快速安装指南以及简易使用说明书 Rev: 02 Tool List Service and Support 技术支持 工具参考 Crosshead screwdriver Marker pen Percussion drill(φ8 Drill bit) 十字螺丝刀 记号笔 冲击钻(φ8钻头) Claw hammer Screw Ancrotron M6 screw 羊角锤 膨胀套 M6 螺钉...
Page 2
Connect the power adapter. 连接电源适配器 ● Do not power on the device before device installation and cabling are completed. ● The S1700-8G-AC can use only DC power supply. ● The power input of S1700-8G-AC is 12V/0.5A. ● 严禁在设备安装和布线完成前向设备供电。 ● S1700-8G-AC只支持附带的电源适配器。...
Page 3
Laying out Cables 布放线缆 Connect the device to network interface. 设备连接到网络接口。 Connect the device to the computer. 设备连接到计算机。 Power on the device. 设备上电。...
Page 4
Powering on the System 上电检查 ● After the device is powered on, the PWR LED is on. the port LED status is as shown in below. ● 设备上电后,PWR电源指示灯亮,端口LED灯状态如下图所示。 Ports LED PWR LED 端口指示灯 电源指示灯 LED Indicator LED状态 Condition Description 状态 描述...
