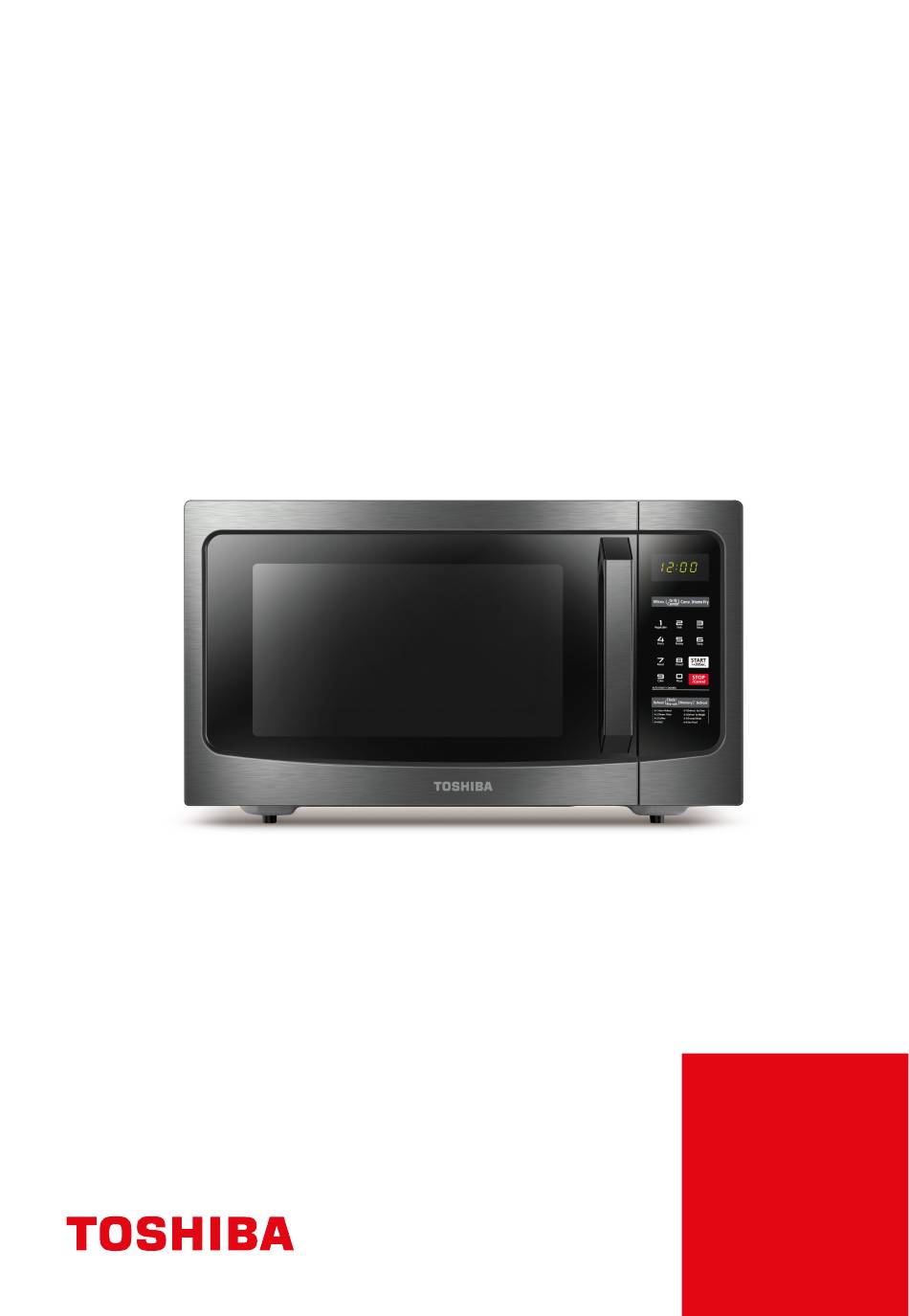

- Page 1 MICROWAVE OVEN INSTRUCTION MANUAL ML-EC42S(BS)
-
Page 3: Table Of Contents
CONTENTS PRODUCT SAFETY IMPORTANT SAFETY INSTRUCTIONS ..............EN-3 PRODUCT INTRODUCTION PRECAUTIONS MICROWAVE ENERGY ..............EN-6 GROUNDING INSTRUCTIONS ..................EN-7 MATERIALS YOU CAN USE IN MICROWAVE OVEN ..........EN-9 MATERIALS CAN NOT BE USED IN MICROWAVE OVEN ......... EN-10 INSTRUCTION FOR USE SETTING UP YOUR OVEN .................... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAFETY WARNING WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Read and follow the specific: “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”. - Page 5 PRODUCT SAFETY IMPORTANT SAFETY INSTRUCTIONS SAFETY WARNING 8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. 9. Only use utensils that are suitable for use in microwave ovens. 10.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS SAFETY WARNING - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - farm houses; - bed and breakfast type environments. 19. The microwave oven is intended for heating food and beverages.
-
Page 7: Product Introduction
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the life span of the apparatus and lead to a dangerous situation. SPECIFICATIONS Model: ML-EC42S(BS) Rated Voltage: 230V~50Hz Power Consumption (Microwave): 1550W... - Page 8 TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.
- Page 9 PRODUCT INTRODUCTION TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION CLEANING Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3.
-
Page 10: Materials You Can Use In Microwave Oven
MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes. - Page 11 PRODUCT INTRODUCTION MATERIALS TO BE AVOIDED IN MICROWAVE OVEN UTENSILS REMARKS Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe dish. metal handle Metal or metal- Metal shields the food from microwave energy. trimmed utensils Metal trim may cause arcing.
-
Page 12: Setting Up Your Oven
SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly 1 Turntable Shaft Control panel Grill Rack Door assembly Instruction Manual Glass tray... - Page 13 INSTRUCTION FOR USE SETTING UP YOUR OVEN Countertop Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
- Page 14 SETTING UP YOUR OVEN Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged WARNING and the warranty would be void. The accessible surface may be hot during operation.
-
Page 15: Operation Instructions
INSTRUCTION FOR USE OPERATION INSTRUCTIONS CONTROL PANEL DIGITAL DISPLAY Grill/Combi For Grill Cooking & Combination Conv. Cooking (Microwave+Grill) For Convection Cooking Micro. Press to select Home Fry Microwave power level For Home Fry Cooking Auto Menu Vegetable, Fish, Meat, START/+30Sec. Pasta, Potato, Soup, For starting cooking or adding Roast, Bread, Cake,... - Page 16 OPERATION INSTRUCTIONS 1. CLOCK SETTING When the microwave oven is electrified, the oven will display"0:00", buzzer will ring once. The input time should be within 0:00--23:59(24 Hour) or 0:00--12:59(12 Hour). a. Press " Clock/ Pre-set" once, buzzer will ring once and "24H" displays. b.
- Page 17 INSTRUCTION FOR USE OPERATION INSTRUCTIONS 3. GRILL & COMBINATION COOKING GRILL COOKING Example: If you want to use grill to cooking for 35 minutes, you can operate the oven as the following steps. a. Press the "Grill/Combi" key once, the oven will display "G-1". b.
- Page 18 OPERATION INSTRUCTIONS 4. REHEAT FUNCTION a. Press "Reheat" pad once, the "h-1" will display and flash. (Press the "Reheat" pad several times to select the cooking program you wanted.) b. Press "START/+30Sec." key to confirm, the "h-1" will display. c. Press "Reheat" pad, the oven will display "150". (Press the "Reheat"...
- Page 19 INSTRUCTION FOR USE OPERATION INSTRUCTIONS b. Press the "START/+30Sec." key to start preheating. The temperature figure will flash when reach to the temperature in advance and buzzer will ring twice to remind you to put the food into the oven. c.
- Page 20 OPERATION INSTRUCTIONS 200g 200g 120g 7. DEFROST BY TIME a. Press "Defrost" pad once, the oven will display "d-1". b. Input the figure of the time of cooking. (The maximum cooking time is 99 minutes and 99 seconds.) c. Press "START/+30Sec." key to start defrosting. 8.
- Page 21 INSTRUCTION FOR USE OPERATION INSTRUCTIONS 10. DEFROST SEA FOOD a. Press "Defrost" pad 4 times, the oven will display "d-4". b. Input the figure of the weight of food. (The input figure of the weight should be within 100--2000g.) c. Press "START/+30Sec." key to start defrosting. 11.
- Page 22 OPERATION INSTRUCTIONS Auto Menu Chart Press Times Menu Weight Display 150g(with water 30g) Once Twice Vegetable 350g(with water 60g) Thrice 500g(with water 120g) Once 150g 250g Twice 350g Thrice Fish 450g 4 times 5 times 650g Once 150g Twice 300g Meat 450g Thrice...
- Page 23 INSTRUCTION FOR USE OPERATION INSTRUCTIONS • When you choose cake, please do not put the cake into the oven at the begining. The oven needs to be preheated to 180 degree first. After several minutes, the buzzer sounds twice to remind you to put the cake into the oven.
- Page 24 OPERATION INSTRUCTIONS c. Press "Micro." twice to choose 80% microwave power. d. Press number keys "1","5","0","0" in order to adjust the cooking time. e. Press "START/+30Sec." to start cooking. 15. EXPRESS COOKING When the oven is in the waiting state, press "START/+30Sec." key to start cooking with full microwave power for 30 seconds.
- Page 25 INSTRUCTION FOR USE OPERATION INSTRUCTIONS When the oven is electrified with the door is close, the oven will enter the • NOTE children-lock state automatically. 18. TURNTABLE RESET FUNCTION a. When cooking finished, if the turntable is not at the initial position, it will enter the turntable reset function.
-
Page 26: Trouble Shooting
TROUBLE SHOOTING Normal Radio and TV reception may be interfered when microwave oven operating. Microwave oven interfering TV It is similar to the interference of small electrical appliance, like mixer, vacuum reception cleaner, and electric fan. It is normal. Dim oven light In low power microwave cooking, oven light may become dim.
