SL BAR 660 RGBW LED Luminaires
Installation & User's Manual
6. Master / Slave Operational Mode
The Master / Slave Operational Mode allows one SL BAR 660 RGBW LED Luminaire to act as the "Master" unit
and all other connected units are controlled by this unit. When a unit is set to "Slave" mode, it will only listen to and
follow any commands sent from a "Master" unit. Only one "Master" unit is allowed in this type of operation.
To setup a master / slave network:
Master Mode
Step 1. Set the first device in the DMX512 chain to
through the unit's menu system.
Slave Mode
Step 2. Set all other connected units to
.
Step 3. The master unit can be controlled via DMX512, RDM or through standalone operation (self-contained
network utilizing on-board effects). The slave units will mimic the master unit's operation in all cases.
Note: For more information on DMX512 networking and systems, refer to
"Additional Resources for DMX512" on
page
1. For SL BAR 660 RGBW LED Luminaire DMX Mapping, refer to
"DMX CONTROL" on page
21.
Optional:
DMX512
(in - from a
DMX controller)
Master Unit
SL BAR 660 RGBW
LED Luminaires
DMX512
(out from first to
Slave Unit
second luminaire)
DMX512
Slave Unit
(out from second to
next luminaire)

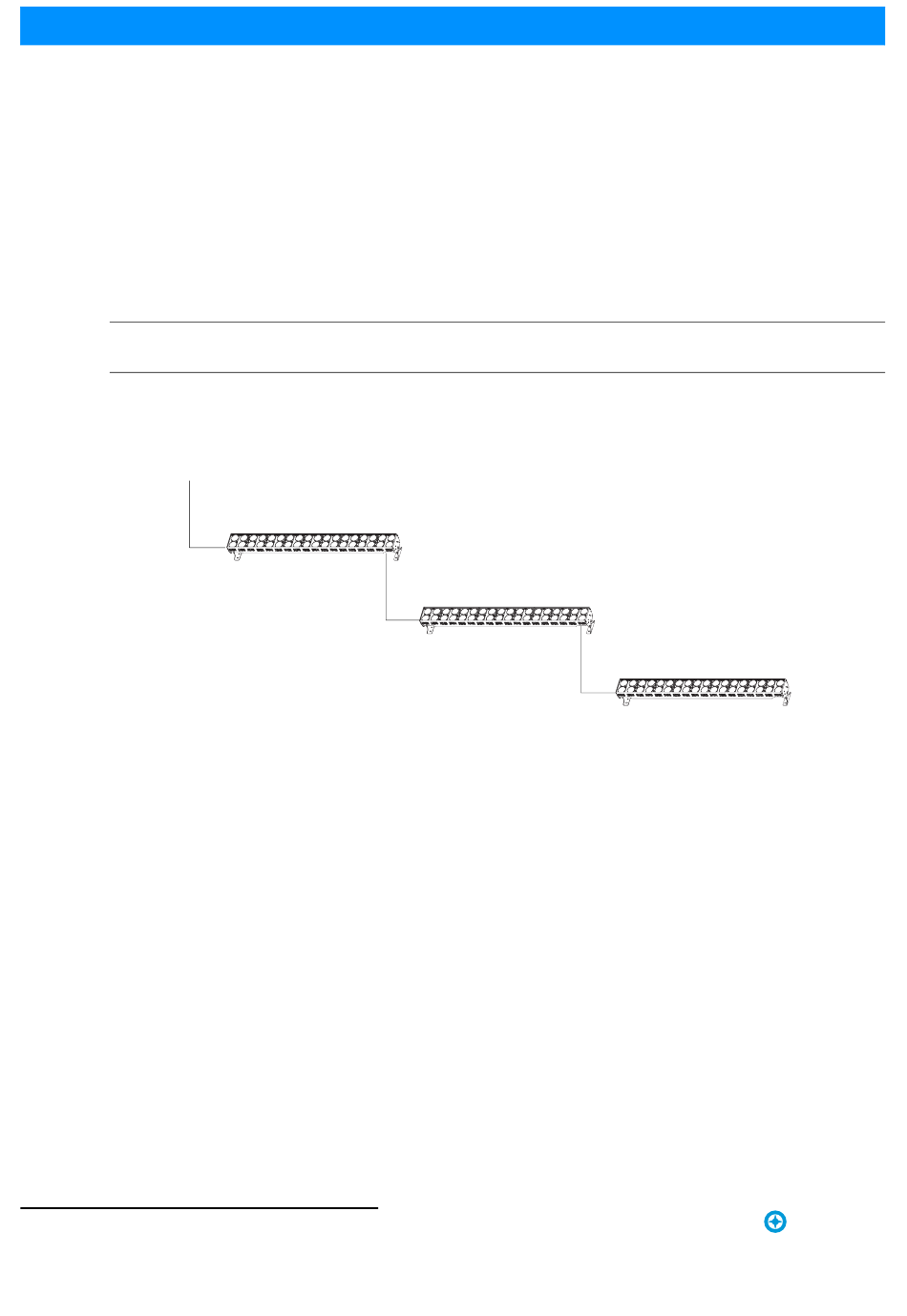

Figure 10: SL BAR 660 RGBW LED Luminaire - Master / Slave Configuration
Sh wline
2 0
OPERATION AND PROGRAMMING
