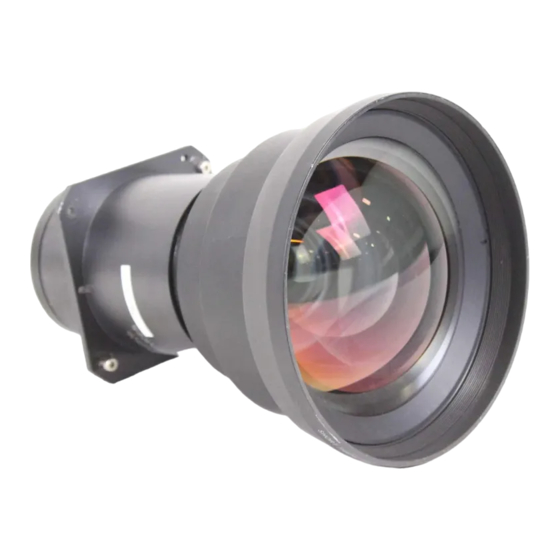

LCD PROJECTOR LENS

MODEL NO. LNS-W01

LENS REPLACEMENT AND

INSTALLATION PROCEDURE

The focus and zoom of this lens can't be adjusted by controls on main cabinet or the remote control unit.

Lens installation should be performed by the qualified service personnel.

It should be followed by this procedure precisely.

Before attempt to install the lens, confirm the model number (both the LCD

projector and the lens) and use the proper lens.

If you have any questions, contact to the dealers.

Following checks and confirmations should be taken for safety.

Check the following things by the time of the cabinet assembly after the

lens installation.

1. Confirm the lens is securely fixed by 4 screws.

2. Wiring must not be tangled in the mechanical part.

3. There is no missing part, or no loosing mounting part.

LNS-T01

NOTES ON LENS INSTALLATION

PARTS LIST

Following parts are contained in the packing.

· LENS

· LENS MOUNTING SCREWS

· DRIVER

· LIGHT-BLOCK SHEET

1 piece

6 screws (2 for spare)

1 piece

1 sheet

1AA6P1P1979-- (ICPW)

Page 1: Parts List
LCD PROJECTOR LENS MODEL NO. LNS-W01 LNS-T01 LENS REPLACEMENT AND INSTALLATION PROCEDURE The focus and zoom of this lens can’t be adjusted by controls on main cabinet or the remote control unit. NOTES ON LENS INSTALLATION Lens installation should be performed by the qualified service personnel.
Page 2 LENS REPLACEMENT AND INSTALLATION PROCEDURE Perform the steps REMOVE THE LENS COVER. (See figure-1) Remove screws A (2 screws). Pull down the lower lens cover while pushing the part D, then remove it. Remove screws B (2 screws). Remove screws C (2 screws) and remove upper lens cover.
Page 3 INSTALL THE LENS. (See figure-4) Remove protective caps(front and back) on the lens. Mount the lens on mounting bracket of the main cabinet with 4 screws. Use the screws included with the lens. Use the driver included with the lens to fasten the screws.
