Bosch HBC86K7 3S Series Instruction Manual

Bosch HBC86K7 3S Series Instruction Manual

Compact oven with microwave
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HBC86K7.3S
Compact oven with microwave
[en] Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Bosch HBC86K7 3S Series

Summary of Contents for Bosch HBC86K7 3S Series

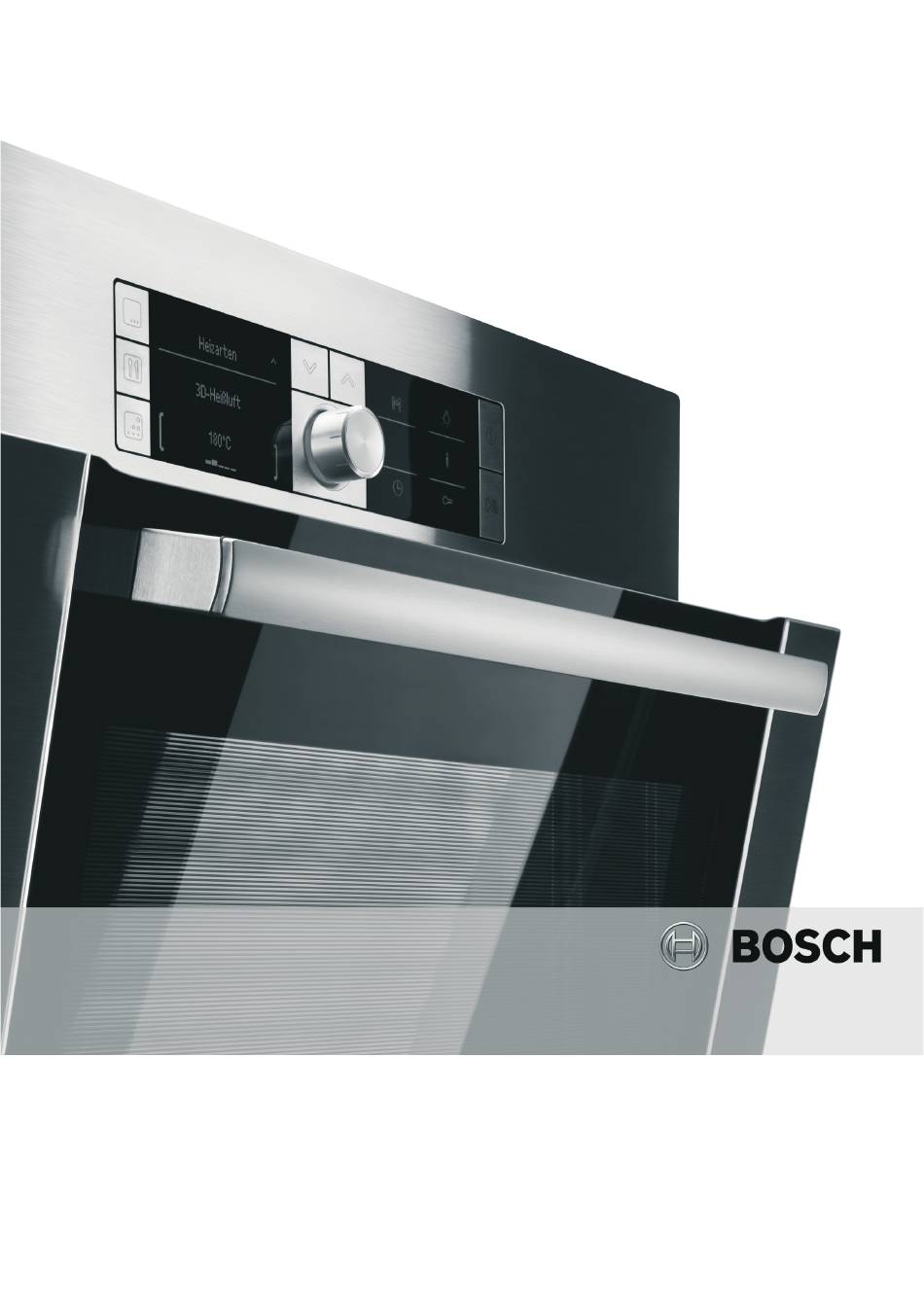

  • Page 1 HBC86K7.3S Compact oven with microwave [en] Instruction manual...

  • Page 2: Table Of Contents

    Setting a series of operations ............12 Additional information on products, accessories, replacement Time-setting options..............13 parts and services can be found at www.bosch-home.com and Setting the cooking time..............13 in the online shop www.bosch-eshop.com Setting a later end time ..............13 Setting the timer................

  • Page 3: Important Safety Information

    : Important safety information Read these instructions carefully. Only then element and catch fire. Do not place will you be able to operate your appliance greaseproof paper loosely over safely and correctly. Retain the instruction accessories during preheating. Always manual and installation instructions for weight down the greaseproof paper with a future use or for subsequent owners.
  • Page 4 seal is damaged. Never use the appliance accessories or ovenware from the cooking if the cooking compartment door or the compartment. door seal is damaged. Contact the after- Risk o f b urn s! Alcoholic vapours may catch fire in the hot ■...

  • Page 5: Causes Of Damage

    glass scraper, or sharp or abrasive Moist food: Do not store moist food in the closed cooking ■ compartment for long periods. This will damage the enamel. cleaning aids or detergents. Do not use the appliance to store food. This can lead to Risk of inju ry ! Unsuitable ovenware may crack.

  • Page 6: Rotary Selector

    Temperature indicator Symbol Button function The temperature indicator bars show the heating phases or Selects microwave power 360 watt residual heat in the cooking compartment. Selects 600 watt microwave power Heating indicator Selects 900 watt microwave power The heating indicator displays the rising temperature in the Selects the type of heating cooking compartment.

  • Page 7: Inserting Accessories

    Inserting accessories Universal pan HEZ862000 For large joints, dry and moist You can insert the accessories into the cooking compartment cakes, bakes and gratins. It can at 3 different positions. also act as a splash guard if you are grilling meat directly on the wire rack.

  • Page 8: Initial Setup

    Initial setup Heat up the cooking compartment to 240 °C using Top/bottom heating. Once your new appliance has been connected to the power Press the button. supply, the "Basic settings" heading appears in the top line of the display. Set the clock, and also the text display language, if The initial display including descriptions of the buttons required.

  • Page 9: Setting The Type Of Heating And Temperature

    Turn the rotary selector to set the desired temperature. Types of heating Application and temperature 7\SHV RI KHDWLQJ ranges 7RS 3D hot air For baking cakes and small baked ERWWRP KHDWLQJ 30-250 °C items on two levels. ƒ& Hot air For baking sponge cakes in baking tins 30-250 °C on one level.

  • Page 10: Setting Rapid Heating

    Turn the rotary selector anticlockwise to Recommended Setting rapid heating settings. Rapid heating is not suitable for all types of heating. The first food category appears. Suitable types of heating Press the button to switch to the food category and select the required category by turning the rotary selector.

  • Page 11: Setting The Microwave

    Setting the microwave Press the button. Appliance operation begins. The cooking time starts counting Example in diagram: microwave power setting 360 W, cooking down. time 17 minutes. Press the button for the microwave power setting you require. The cooking time has elapsed The button lights up.

  • Page 12: Suitable Microwave Power Settings

    Suitable microwave power settings Set the cooking time using the rotary selector. Except for 900 watts, you can combine any microwave power &RPELQDWLRQ setting with a heating type. 7RSERWWRP Setting a combination KHDWLQJ Example in diagram: Top/bottom heating setting 200 °C and ƒ&...

  • Page 13: Time-Setting Options

    Press the button again in order to select the second Changing the setting operation in the series. Note: Changes can only be made before operation begins. Select and set the desired operating mode. Press the button until operation 1, 2 or 3 in the series Press the button again in order to select the third appears in the displays...

  • Page 14: Setting The Timer

    Set a later end time by turning the rotary selector. When the time has elapsed A signal sounds. The time has elapsed. The display shows 7LPHVHWWLQJ RSWQ 00:00. You can cancel the signal earlier by pressing the button.  Cancelling the timer time 7LPHU Press the button to open the time-setting options menu.

  • Page 15: Sabbath Mode

    Sabbath mode When this setting is used, the temperature of the oven remains Press the button to open the time-setting options menu. at between 85 °C and 140 °C with Top/bottom heating. You 27:00 hours are suggested. can set a time between 24 and 73 hours. Turn the rotary selector to set the required cooking time.

  • Page 16: Changing The Basic Settings

    Basic setting Options Explanation Hot air from 30 to max. 250 °C Permanently change default temperature for Suggestion: 160 °C the type of heating. Top/bottom heating from 30 to max. 270 °C Permanently change default temperature for Suggestion: 180 °C the type of heating.

  • Page 17: Cleaning Agents

    Risk of burns! Area Cleaning agents The appliance becomes very hot. Never touch the interior Accessories Hot soapy water: surfaces of the cooking compartment or the heating elements. Soak and clean with a dish cloth or a Always allow the appliance to cool down. Keep children at a brush.

  • Page 18: Cleaning The Glass Panels

    Position the door at an angle and pull out the panel upwards Risk of injury! by the door handle. (Fig. B). Never touch or clean the microwave antenna (A)! For light soiling: Wash the glass cover using hot soapy water. For heavy soiling: Clean the glass cover in the same way as the enamel surfaces in the oven.

  • Page 19: Malfunction Table

    Caution! You must not use the oven again until the panels have been properly refitted. Malfunction table Malfunctions often have simple explanations. Please refer to the Risk of electric shock! malfunction table before calling the after-sales service. Incorrect repairs are dangerous. Repairs may only be carried If a meal does not turn out exactly as you wanted, refer to the out by one of our trained after-sales engineers.

  • Page 20: Replacing The Door Seal

    Remove the bulb and replace with a bulb of the same type. Replacing the door seal (Fig. B) If the door seal is defective, it must be replaced. Replacement seals for your appliance can be obtained from the after-sales service. Please supply your appliance's E number and FD number.

  • Page 21: Environmentally-Friendly Disposal

    Environmentally-friendly disposal This appliance complies with European Directive 2002/96/EC on Waste Electrical and Electronic Dispose of packaging in an environmentally-friendly manner. Equipment (WEEE). The directive gives a framework for the collection and recycling of old appliances, which is valid across the EU. Automatic programmes The automatic programmes enable you to prepare food very The programme has ended...
  • Page 22 circumstances should it be used for other purposes or be After turning, remove any minced meat that has already ■ allowed to come into contact with other foods. defrosted. Place beef, lamb and pork on the ovenware fatty-side down Whole poultry should be placed in the ovenware breast-side ■...
  • Page 23 Chips, croquettes and röstis must be suitable for preparation ■ in the oven. Programme group Suitable food Weight range in kg Ovenware/accessories, shelf height Programme Potatoes Boiled potatoes* Waxy potatoes, quite waxy pota- 0.20 - 1.00 Ovenware with lid, wire rack, level 1 toes, floury potatoes Unpeeled boiled potatoes* Waxy potatoes, quite waxy pota-...
  • Page 24 Spring rolls and mini spring rolls must be suitable for Make sure that frozen food is placed in a single layer. ■ ■ preparation in the oven. Programme group Weight range in kg Ovenware/accessories, shelf height Programme Pizza, thin base 0.30 - 0.50 Universal pan, level 1 Pizza, deep-pan...
  • Page 25 Programme group Suitable food Weight range Ovenware/accessories, shelf height Programme in kg Roulades 0.50 - 3.00 Deep ovenware with lid, wire rack,level 1 Veal Joint, fresh* Rump, flank 0.80 - 2.00 Ovenware with lid, wire rack, level 1 Knuckle on the bone, fresh 0.80 - 3.00 Ovenware with lid, wire rack, level 1 Osso buco...

  • Page 26: Tested For You In Our Cooking Studio

    Tested for you in our cooking studio Here you will find a selection of recipes and the ideal settings The times specified in the tables are only guidelines. They may for them. We will show you which type of heating and which vary according to the ovenware used, the quality, temperature temperature or microwave power setting is best for your meal.
  • Page 27 Defrost Weight Microwave power setting in watts, Notes cooking time in minutes Cakes, dry, e.g. sponge cake 500 g 90 W, 10-15 mins Only for cakes without icing, cream or crème pâtissière, separate the pieces 750 g 180 W, 2 mins + 90 W, 10-15 mins of cake.
  • Page 28 Heating food Weight Microwave power setting in Notes watts, cooking time in minutes Drinks 150 ml 900 W, 1-3 mins Caution! Place a spoon in the glass. Do not over- 300 ml 900 W, 3-4 mins heat alcoholic drinks. Check during heat- 500 ml 900 W, 4-5 mins Baby food, e.g.

  • Page 29: Microwave Tips

    Microwave tips You cannot find any information about the settings for the Increase or reduce the cooking times using the following rule of quantity of food you have prepared. thumb: Double the amount = almost double the cooking time Half the amount = half the cooking time The food has become too dry.
  • Page 30 Cakes on trays Accessories Level Type of Temperature °C Microwave power Cooking time heating in watts in minutes Yeast dough with dry topping Universal pan 170-190 35-45 Yeast dough with dry topping Universal pan + 160-180 50-60 Enamel baking tray Yeast dough with moist topping Universal pan 170-190...

  • Page 31: Baking Tips

    Bread and rolls Accessories Level Type of Temperature °C Cooking time in heating minutes Bread rolls Universal pan 200-220 20-30 Rolls made with sweet yeast dough Universal pan 190-210 15-25 Baking tips You want to bake according to your own Use similar items in the baking tables as a guide.
  • Page 32 Add two to three tablespoons of liquid and a little lemon juice Turn fillet of beef and sirloin halfway through the cooking ■ or vinegar into the ovenware. time. Finally, allow to stand for approx. a further 10 minutes. Turn steaks after of the cooking time.
  • Page 33 Pork Accessories Level Type of Temperature in Microwave power Cooking time in minutes heating °C, grill setting in watts Joint of pork, lean, Ovenware with lid, 210-230 90 W 50-60 approx. 1 kg wire rack Joint of pork, lean, Ovenware with lid, 200-220 90 W 70-80...

  • Page 34: Tips For Roasting And Grilling

    Poultry Accessories Level Type of Temperature in Microwave power Cooking time in heating °C, grill setting in watts minutes Chicken, whole, Ovenware with lid, wire 230-250 360 W 25-35 approx. 1.2 kg rack Poulard, whole Ovenware with lid, wire 200-220 360 W rack 180 W...

  • Page 35: Bakes, Gratins, Toast With Toppings

    How to tell when the roast is ready. Use a meat thermometer (available from specialist shops) or carry out a “spoon test”. Press down on the roast with a spoon. If it feels firm, it is ready. If the spoon can be pressed in, it needs to be cooked for a little longer.

  • Page 36: Slow Cooking

    Convenience products Accessories Level Type of Temperature Microwave power Cooking time in heating °C in watts minutes Pretzels, dough Universal pan* 190-210 20-25 Part-cooked rolls or baguette Wire rack 140-150 12-15 Fish fingers Universal pan 190-210 180 W 10-15 Chicken goujons, nuggets Universal pan 190-210 360 W...

  • Page 37: Test Dishes

    Test dishes The quality and function of microwave combination appliances According to the standards EN 60705, IEC 60705/DIN 44547 are tested by testing institutes using the following dishes. and EN 60350 (2009) Defrosting with the microwave Dish Microwave power setting in watts, cooking Note time in minutes Meat...

  • Page 38: Grilling

    Grilling Grill, large area Dish Accessories Level Type of heating Grill setting Cooking time in minutes Toasting bread* Wire rack 12 beefburgers** Wire rack and Universal pan * Preheat for 5 minutes. ** Turn halfway through the cooking time. Acrylamide in foodstuffs Which foods are affected? chips, toast, bread rolls, bread, fine baked goods (biscuits, Acrylamide is mainly produced in grain and potato products...
  • Page 40 Robert Bosch Hausgeräte GmbH Carl-Wery-Straße 34 81739 München Germany www.bosch-home.com *9000786727* (01) 920709 9000786727...
