Slope Sensor Kit
Groundsmaster
Model No. 31251

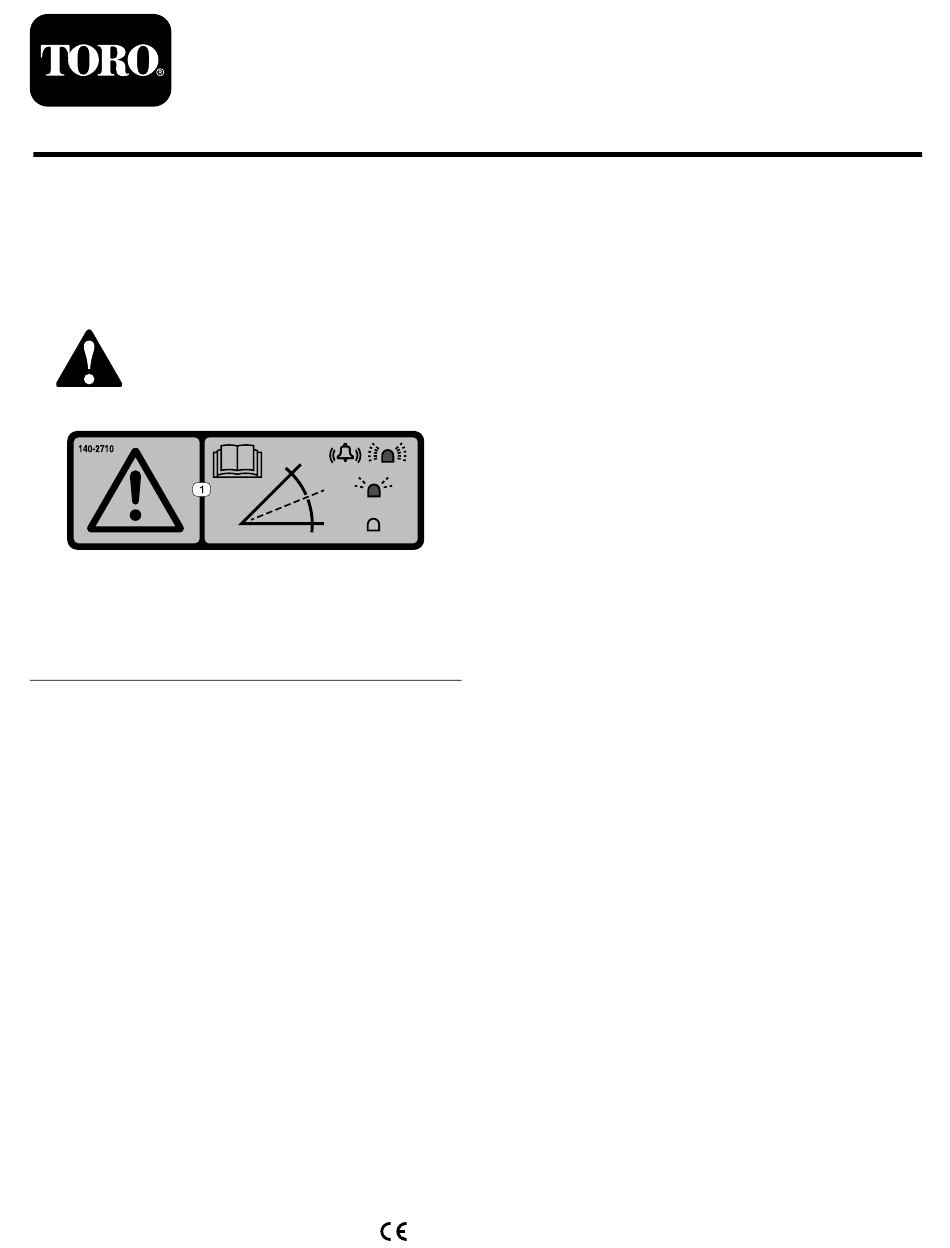

Safety
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or missing.
1. Warning—read the Operator's Manual; a fast flashing light
and alarm sounding indicates a steep slope; a slow flashing
light indicates a moderate slope; no light indicates normal
operating conditions.
© 2020—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
7200 or 7210 Series Traction Unit
140-2710
Register at www.Toro.com.
decal140-2710
Form No. 3435-476 Rev A
Installation Instructions
Original Instructions (EN)
All Rights Reserved *3435-476* A
Printed in the USA

Advertisement

loading

Related Manuals for Toro Groundsmaster 7200

Summary of Contents for Toro Groundsmaster 7200

  • Page 1 1. Warning—read the Operator’s Manual; a fast flashing light and alarm sounding indicates a steep slope; a slow flashing light indicates a moderate slope; no light indicates normal operating conditions. © 2020—The Toro® Company Register at www.Toro.com. Original Instructions (EN) All Rights Reserved *3435-476* A...

  • Page 2: Installation

    Installation Loose Parts Use the chart below to verify that all parts have been shipped. Description Qty. – No parts required Prepare the machine. Sensor module LED light Bolt (1/4 x 1-1/4 inch) Flange nut (1/4 inch) Bolt (1/4 x 3/4 inch) Install the kit.
  • Page 3 Using the mounting bracket as a template, mark the location of the hole to drill (Figure Drill 9/32 inch holes into the machine frame (Figure Install the mounting bracket to the machine frame with 2 bolts (1/4 x 3/4 inch) and 2 flange nuts (1/4 inch).
  • Page 4 g321005 Figure 4 g320859 Figure 2 1. 90° connector 1. Flange nut (1/4 inch) 3. Bolt (1/4 x 3/4 inch) 2. Mounting bracket Flip the seat forward. Remove the access panel behind the seat and Mount the sensor to the mounting bracket with 2 on the side of the console (Figure bolts (1/4 x 1-1/4 inch) and 2 nuts (1/4 inch).
  • Page 5 Routing the Wire Harness Route the wire harness under the seat pan and along the along the existing wire harness in the cross channel (Figure Install the middle connector to the machine wire harness connector labeled TELEMATICS port or EXPANSION port (Figure Connect the wire harness to the light and the alarm...

  • Page 6: Calibrating The Sensor

    Note: Ensure the harnesses are secured away from moving parts and hot surfaces. Connect the battery. Refer to the Operator’s Manual for the procedure. Installing the Decal Install the decal on the machine as shown in Figure g321003 g321004 Figure 10 g320857 Figure 9 1.
  • Page 7 Use the following processes depending what LED light your machine has installed. Console LED light (Figure 11): The LED light (Figure 11) blinks as the sensor calibrates. When the LED light turns off and the sensor beeps once, the sensor is calibrated.

  • Page 8: Operation

    Operation Use the following procedures depending what your machine has installed. WARNING g317558 Slopes are a major factor related to Figure 15 loss-of-control and tip-over accidents, which Advisory 197 can result in severe injury or death. Use extreme caution when operating the machine on a slope.
