Toro TimeCutter 139-7478 Installation Instructions

42in Bagging Enhancement Kit
TimeCutter
Model No. 139-7478
Use of this product may cause exposure to chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
Determine the left and right sides of the machine from the normal operating position.
Preparing the Machine
1. Park the machine on a level surface.
2. Disengage the blade-control switch.
3. Move the motion-control levers outward to the P
4. Shut off the engine and remove the key.
5. For easier access, raise the front of the machine and support it using jackstands rated for your machine.
WARNING
Mechanical or hydraulic jacks may fail to support the machine and cause serious injury.
Use jack stands when supporting the machine.
Installing the Kit

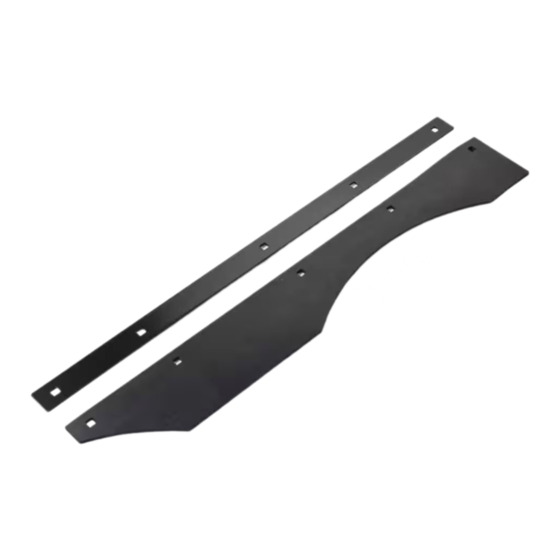

Install the skirt and plate to the mower deck using 5 bolts and 5 nuts.
1. Nut (5)
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
® Riding Mower
WARNING
CALIFORNIA
Proposition 65 Warning
2. Skirt
Register at www.Toro.com.
position.
ARK
3. Plate
Original Instructions (EN) All Rights Reserved *3436-520* A
Printed in the USA
Form No. 3436-520 Rev A
Installation Instructions
4. Bolt (5)
g307610
