Sealey SA24.V3 Manual

Thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instructions gloves
1. sAfeTy
WArNiNG! ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
‰
equipment.
WArNiNG! disconnect from air supply before changing drill bits, or servicing ,or performing any maintenance.
‰
Maintain the drill in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Use in a suitable work area. Keep area free from unrelated materials and ensure that there is adequate lighting.
9
Before each use check condition of drill bit. Sharpen if necessary. If worn or damaged replace immediately.
9
ensure the speed rating (rpm) of the drill bit is the same as, or greater than, the speed rating of the drill.
9
Ensure there are no flammable or combustible materials near the work area.
9
Evaluate your working area before using drill. Ceilings, floors and enclosures may contain hidden electrical wiring, water pipes or gas
9
pipes.
WArNiNG! Always wear approved eye (or face) and hand protection when operating the drill.
‰
Use face, dust, or respiratory protection in accordance with CoSHH regulations.
9
depending on the task, the drilling noise level may exceed 84dB in which case wear safety ear defenders.
9
Remove ill fitting clothing. Remove ties, watches, rings, other loose jewellery and contain and/or tie back long hair.
9
Wear appropriate protective clothing and keep hands and body clear of working parts.
9
Maintain correct balance and footing. dO NOT over reach, ensure the floor is not slippery, wear non-slip shoes.
9
Keep children and unauthorised persons away from the working area.
9
Check moving parts alignment on a regular basis.
9
ensure workpiece is secure before operating the drill. never hold a workpiece by hand.
9
Check the workpiece to ensure there are no protruding screws, bolts, nuts etc.
9
Avoid unintentional starting.
9
WArNiNG! Ensure correct air pressure is maintained and not exceeded. Recommended pressure 70-90psi
‰
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are
9
secure.
Prolonged exposure to vibration from this drill poses a health risk. It is the owner's responsibility to correctly assess the potential
9
hazard and issue guidelines for safe periods of use and offer suitable protective equipment.
dO NOT use the drill for a task it is not designed to perform.
8
dO NOT operate drill if any parts are damaged or missing as this may cause failure and/or personal injury.
8
WArNiNG! dO NOT drill any materials containing asbestos.
‰
dO NOT carry the drill by the hose, or yank the hose from the air supply.
8
dO NOT force, or apply heavy pressure to the drill; let the tool do the work.
8
dO NOT place air line attachments close to your face and dO NOT point at other people or animals.
8
dO NOT operate drill when you are tired, under the influence of alcohol, drugs or intoxicating medication.
8
dO NOT use drill where there are flammable liquids, solids or gases such as paint solvents and including waste wiping or cleaning
8
rags etc.
dO NOT carry the drill with your finger on the trigger.
8
dO NOT direct air from the air line at yourself or others.
8
When not in use disconnect from air supply and store in a safe, dry, childproof location.
9
2. iNTrOducTiON

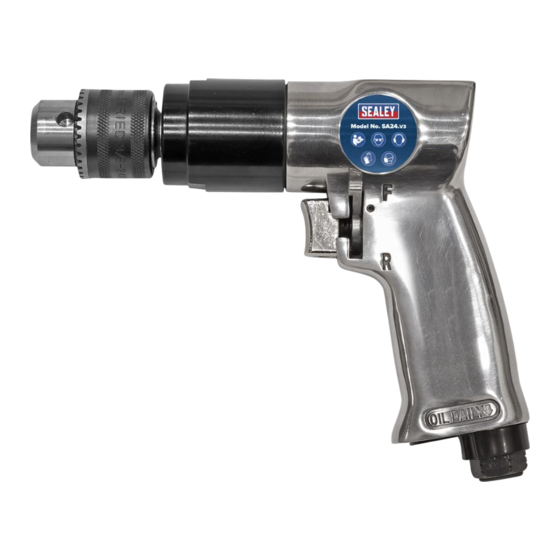

Polished aluminium housing and planetary gear drive assembly. Fitted with Ø10mm chuck and supplied with chuck key.
Reverse action suitable for driving fixings. Suitable for general workshop use.
© Jack Sealey limited
Air drill Ø10mm 1800rpm reversible
sA24.v3
Model no:
Wear eye Wear a mask
protection
Original Language Version
Wear ear
protection
SA24.V3 Issue 1 03/01/19
