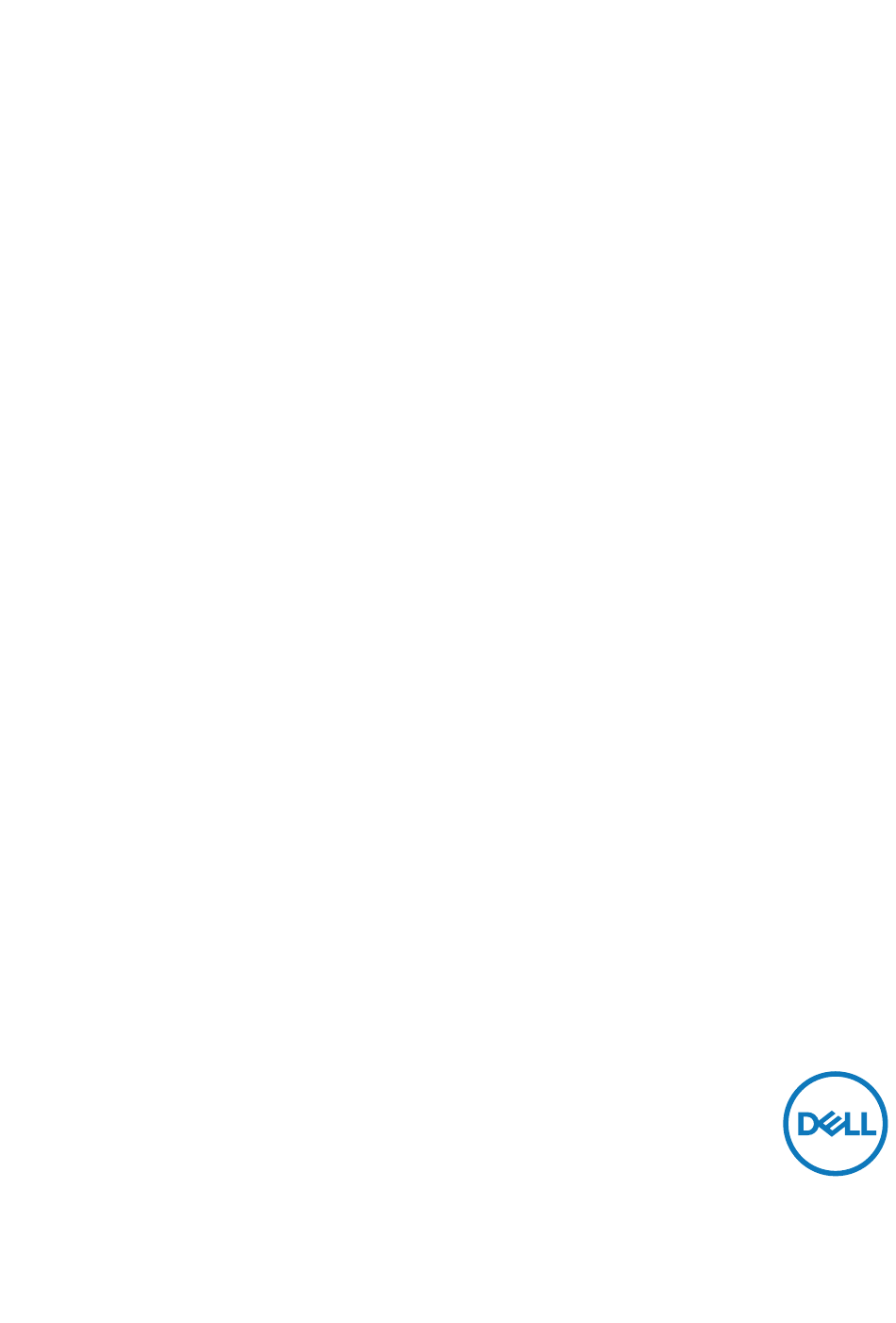

- Page 1 Dell P1424H User’s Guide Monitor Model: P1424H Regulatory Model: P1424Hf...
- Page 2 WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Copyright © 2023 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Safety instructions ..........5 About your monitor ...........6 Package contents ............. 6 Product features ............7 Identifying features and controls ........ 8 Back view and label information ..........9 Monitor specifications ..........10 Resolution specifications ............11 Preset display modes ............11 Electrical specifications ............12 Physical characteristics ............ - Page 4 Self-test ..............29 Built-in diagnostics ...........31 Common problems ........... 32 Regulatory information ........34 FCC notices (U.S. only) and other regulatory information ............. 34 EU product database for energy label and product information sheet ............ 34 Contacting Dell ..........35 │ Contents...
-
Page 5: Safety Instructions
Safety instructions Use the following safety guidelines to protect your monitor from potential damage and to ensure your personal safety. Unless otherwise noted, each procedure included in this document assumes that you have read the safety information that shipped with your monitor. NOTE: Before using the monitor, read the safety information that is shipped with your monitor and printed on the product. -
Page 6: About Your Monitor
Package contents Your monitor ships with the components indicated in the table. Ensure that you have received all the components and see Contacting Dell if anything is missing. NOTE: Some items may be optional and may not ship with your monitor. -
Page 7: Product Features

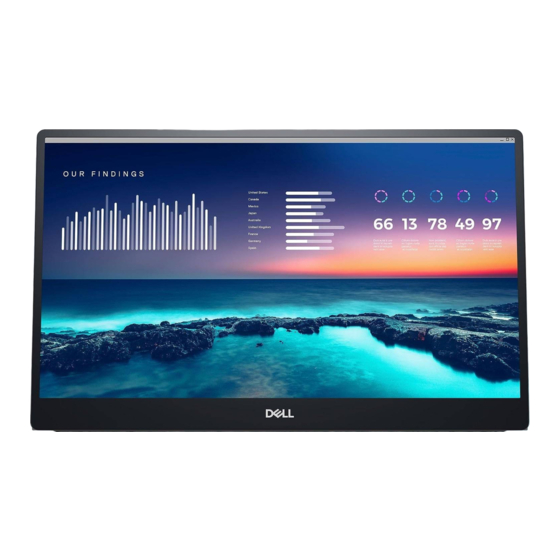

Product features The Dell P1424H monitor has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), anti-static, and LED backlight. The monitor features include: • 35.56 cm (14.0 in.) diagonal viewable area display (measured diagonally), 1920 x 1080 resolution, with full-screen support for lower resolutions •... -
Page 8: Identifying Features And Controls
Identifying features and controls Label Description To turn the monitor On or Off. Power On/Off button Solid white light indicates the monitor is turned (with LED indicator) on and functioning normally. Blinking white light indicates the monitor is in Standby Mode. Connect to your computer/phone using the USB Type-C USB Type-C cable (C to C). -
Page 9: Back View And Label Information
Back view and label information Label Description Barcode, serial number, Refer to this label if you need to contact Dell service tag, and for technical support. regulatory information List of regulatory approvals. │ About your monitor... -
Page 10: Monitor Specifications
Response time (Gray to Gray) 6 ms (typical) Color depth 16.7 million colors Color gamut 72% NTSC (CIE1931) Dell display manager compatibility Connectivity 2 x USB Type-C (Alt Mode DP1.2, HBR, HDCP 1.4, Power Delivery PD up to 65 W) Bezel width (edge of monitor - Top: 6.54 mm... -
Page 11: Resolution Specifications
Resolution specifications Model P1424H Horizontal scan range 30 kHz to 80 kHz (automatic) Vertical scan range 56 Hz to 61 Hz (automatic) Maximum preset resolution 1920 x 1080 at 60 Hz Preset display modes Display mode Horizontal Vertical Pixel clock... -
Page 12: Electrical Specifications
Electrical specifications Model P1424H Video input signals USB Type-C/DisplayPort, 600 mV for each differential line, 100 Ω input impedance per differential pair Power Consumption 0.3 W (Off Mode) 0.3 W (Standby Mode) 5 W (On Mode) 7.5 W (Max) 4.66 W (P 22.86 kWh (TEC) -
Page 13: Physical Characteristics
NOTE: Dell monitors are designed to work optimally with the video cables that are shipped with your monitor. As Dell does not have control over the different cable suppliers in the market, the type of material, connector and process used to manufacture these cables, Dell does not guarantee video performance on cables that are not shipped with your Dell monitor. -
Page 14: Environmental Characteristics
Environmental characteristics Model P1424H Temperature Operating 0°C to 40°C (32°F to 104°F) Non-operating -20°C to 60°C (-4°F to 140°F) Storage/Shipping Humidity Operating 10% to 80% (non-condensing) Non-operating 5% to 90% (non-condensing) Storage/Shipping Altitude Operating 5,000 m (16,404 ft) (maximum) Non-operating... -
Page 15: Pin Assignments
Pin assignments USB Type-C port Signal Signal SSTXp1 SSTXp1 SSTXn1 SSTXn1 VBUS VBUS SSU2 SBU1 VBUS VBUS SSRXn2 SSRXn2 SSRXp2 SSRXp2 │ About your monitor... -
Page 16: Plug And Play Capability
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state, which are hard to see and do not affect the display quality or usability. For more information about Dell Monitor Quality and Pixel Policy, see Dell Support site at www.dell.com/pixelguidelines. - Page 17 Customer Induced Damage (CID). CID is not covered under the standard Dell warranty. • If you notice white residual powder when you unpack your monitor, wipe it off with a cloth.
-
Page 18: Setting Up The Monitor
Setting up the monitor Sleeve The protective sleeve shipped with the monitor can protect your monitor from damage when shipping or storage. The following illustrations show how to use the protective sleeve. Tilt adjustment Please see the illustration below for an example of the tilt range. 80˚... -
Page 19: Connecting Your Monitor
1. Connect the USB Type-C port of computer and P1424H with a USB Type-C cable. USB Type-C USB Type-C 2. Connect the USB Type-C port of mobile phone and P1424H with a USB Type-C cable. Type-C mobile phone USB Type-C │... - Page 20 Plug in usage There are 2 kinds of plug in usage for P1424H: computer and mobile phone with power adapter. 1. Connect Type-C power adapter to P1424H and connect P1424H to the computer with a USB Type-C cable. (Electronically marked cable, current rating: 5 A)
- Page 21 When connecting <30 W adapter, Maximum power delivery output from the monitor is 7.5 W. The Dell monitor P1424H can only output a maximum of 65 W to the system. If the system requires 90 W or above, it will need 90 W or above adapters connected to the system or the battery will drain during usage.
-
Page 22: Connecting With Docking Device
Connecting with Docking device Not supported configuration USB Type-C USB-PD Adapter USB Type-C Supported Configuration Normal usage USB Type-C USB Type-C USB Type-C Plug in usage USB Type-C USB Type-C USB Type-C USB-PD Adapter USB Type-C USB Type-C USB-PD Adapter USB Type-C │... -
Page 23: Operating The Monitor
Operating the monitor Turning on the monitor Press the button to turn on the monitor. Using the front panel control Use the control button on the edge of the monitor to adjust the image being displayed. The following table describes the control button: Control button Description To turn the monitor On or Off. - Page 24 OSD controls Use the buttons on the edge of the monitor to adjust the image settings. Control buttons Description To launch the On-Screen Display (OSD) menu, or to access the list of items/options of a menu item. For more information, see Accessing the OSD menu.
-
Page 25: Using The On-Screen Display (Osd) Menu
Using the On-Screen Display (OSD) menu ComfortView Decrease the level of blue light emitted from the screen to make viewing more comfortable for your eyes. The possible long-term effects of blue light emission from the monitor may cause damage to the eyes such as eye fatigue and eye strain. -
Page 26: Accessing The Osd Menu
Accessing the OSD menu NOTE: Any changes you make are automatically saved when you move to another menu, exit the OSD menu, or wait for the OSD menu to close automatically. 1. Press key to call out ComfortView OSD menu. •... -
Page 27: Osd Warning Messages
OSD warning messages When the monitor does not support a particular resolution mode, you will see the following message: Note: OSD menu supports English only. Dell 14 Monitor P1424H When the monitor enters Standby mode, the following message appears. Dell 14 Monitor Scanning for signal... -
Page 28: Setting Up Display Resolution On Your Monitor
If you are using a non-Dell computer (laptop or desktop): • Go to the support site for your non-Dell computer and download the latest graphic card drivers. • Go to the graphics card’s website and download the latest graphic card drivers. -
Page 29: Troubleshooting
4. If the monitor is working correctly, it scans for signal and detects that there is no signal and the following message appears. While in self-test mode, the power LED remains white. Dell 14 Monitor Scanning for signal... P1424H Dell 14 Monitor No Type-C 1 signal from your device. - Page 30 Note: OSD menu supports English only. NOTE: These messages also appears during normal operation, when the computer USB Type-C cable is disconnected or damaged. 5. Reconnect the computer USB Type-C cable, then turn on your computer wait for computer boot up is complete. If your monitor remains dark after step 5, check your video controller and computer.
-
Page 31: Built-In Diagnostics
Built-in diagnostics To run the built-in diagnostics: 1. Ensure that the screen is clean (no dust particles on the surface of the screen). 2. Press and hold button for about 3 seconds and wait for a pop up diagnostic pattern. 3. -
Page 32: Common Problems
Missing pixels • Cycle power On-off. • Pixel that is permanently off is a natural defect that can occur in LCD technology. • For more information about Dell Monitor Quality and Pixel Policy, see Dell Support site at https://www.dell.com/support/monitors. Stuck-on pixels •... - Page 33 Intermittent charging • Check if the maximum power consumption device is over 65 W. when using USB Type-C • Ensure that you use only Dell approved adapter or the adapter that comes connection to computer, with the product. laptop, and so on •...
-
Page 34: Regulatory Information
Regulatory information FCC notices (U.S. only) and other regulatory information For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance EU product database for energy label and product information sheet P1424H: https://eprel.ec.europa.eu/qr/1435998 │ Regulatory information... -
Page 35: Contacting Dell
Contacting Dell To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell. NOTE: Availability varies by country and product, and some services may not be available in your country. NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
