Sealey SA1004 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
Follow all workshop Health & Safety rules, regulations, and conditions when using tool.
9
WARNING! disconnect from air supply before changing grinding bit or servicing.
‰
maintain die grinder in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
9
dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 80psi.
‰
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.
9
WARNING! Before each use check grinding bit is secure, and the bit is not worn or damaged, if damaged, replace immediately.
‰
ensure replacement grinding bits are not damaged (cracks, deformations or splinters etc).
9
Always use the correct grinding bit suitable for the material being ground. ensure the maximum speed specification of the bit is higher
9
than that indicated on the machine data plate.
WARNING! Always wear approved eye or face protection when operating the die grinder.
‰
Use breathing protection in accordance with CoSHH regulations if fumes or dust pose a hazard.
9
Wear ear defenders and safety gloves.
9
Keep hands and body clear of the workpiece when operating the die grinder.
9
maintain correct balance and footing. ensure the floor is not slippery and wear non-slip shoes.
9
Secure unstable workpiece with a clamp, vice or other adequate holding device.
9
Keep children and non essential persons away from the working area.
9
Avoid subjecting grinding bit to excessive strain, always ease grinding bit against workpiece (a harsh impact may break the bit). maintain
9
a controlled progression.
DO NOT get the die grinder wet or use in damp or wet locations.
8
DO NOT hold the workpiece by hand. Use clamps or a vice to secure the workpiece.
8
DO NOT use the die grinder for a task it is not designed to perform.
8
WARNING! DO NOT use die grinder if damaged or faulty. Contact your local service agent.
‰
DO NOT use die grinder unless you have been instructed in its use by a qualified person.
8
DO NOT carry the die grinder by the air hose, or yank the hose from the air supply.
8
DO NOT direct air from the air hose at yourself or others.
8
WARNING! DO NOT grind any materials containing asbestos.
‰
DO NOT turn the die grinder on whilst the grinding bit is in contact with the workpiece.
8
DO NOT use die grinder where there are flammable liquids, solids or gases such as paint solvents, including waste wiping or cleaning
8
rags etc. as generated sparks may be dangerous.
DO NOT touch the workpiece close to the ground surface as it will be very hot. Allow to cool. The workpiece may also be very sharp.
8
DO NOT operate die grinder if you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
When not in use disconnect from air supply and store in a safe, dry, childproof location.
9
2. INTRODuCTION
mini compact air tool range designed to suit the professional. lightweight and versatile makes working in tight areas such as engine bays quick
and easy. Features a textured finish to ensure a good grip.
3. SpECIFICATION
model no: .................................................................. SA1004
Configuration: ..................................................... Straight-mini
Collet size: .................................................................. Ø6mm
Free speed: ............................................................ 25000rpm
Air consumption: ........................................................11.3cfm
operating pressure: ...................................................... 80psi
Air inlet size:..............................................................1/4"BSP
length: ....................................................................... 123mm
noise power/pressure: ......................................... 97/86dB(A)
Vibration/uncertainty: ................................... 1.079/0.602m/s²
© Jack Sealey limited

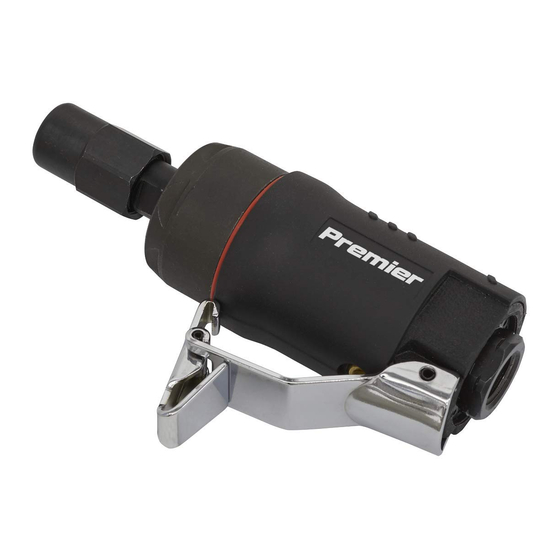

MINI AIR DIE GRINDER Ø6MM COLLET
model no:
Wear ear Wear protective
protection gloves
Original Language Version
SA1004
Wear a mask
SA 1004 Issue 2 (3) 18/12/19
