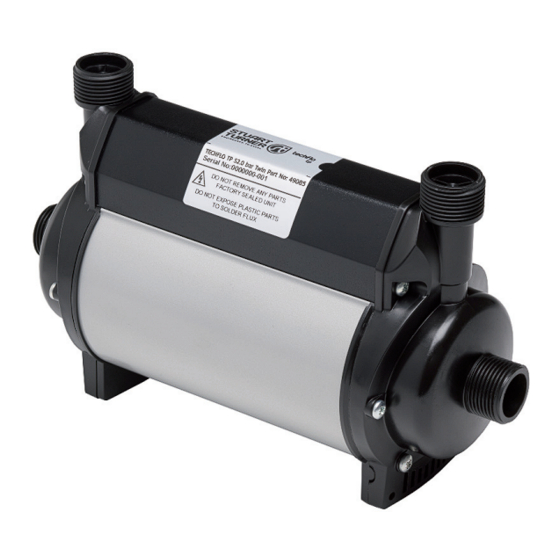

SHOWERMATE TP
Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the owner as it contains
important warranty, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:
S1.5 bar Twin
Pt. No. 49084
S2.0 bar Twin
Pt. No. 49085
FOR SINGLE OUTLET POSITIVE HEAD APPLICATIONS ONLY
S2.0 bar Single
Pt. No. 49086
Advertisement
Related Manuals for Stuart Turner SHOWERMATE TP S1.5 bar Twin
Summary of Contents for Stuart Turner SHOWERMATE TP S1.5 bar Twin
- Page 1 SHOWERMATE TP Installation, Operation & Maintenance Instructions Please leave this instruction booklet with the owner as it contains important warranty, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: S1.5 bar Twin S2.0 bar Single Pt.
- Page 2 Showermate TP Single pumps are not suitable for boosting a single side of a dual flow mixer valve or tap. Consult Stuart Turner for alternative pump. STORAGE If this product is not to be installed immediately on receipt, ensure that it is stored in a dry, frost and vibration free location in its original packaging.
- Page 3 WARNINGS: This pump set must not be used for any other application without the written consent of Stuart Turner Limited and in particular, must not be connected directly to the mains water supply. This appliance can be used by children aged from ...
- Page 4 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. Please read installation details carefully as they are intended to ensure this product provides long, trouble free service.
- Page 5 CHECKLIST IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner within 24 hours of receipt. 22 mm pipework 15 mm pipework Fig. 1 Item Description Qty Item Description Pump Inlet hose 2(1)
- Page 6 1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A Water storage capacity. 1.11 The hot and cold water storage capacity must be sufficient to meet the flow rates required by the pumped equipment and any other water using fittings and appliances, which may be operated simultaneously. 1.12 Ensure the pump is primed as described in the priming section before starting, damage to the shaft seal will result otherwise.
- Page 7 Fig. 2. Fig. 2 2.21 Flexible hoses: Only use the Stuart Turner hose set supplied with the pump. 2.22 Isolating valves: Separate system isolating valves (non restrictive) must be fitted to allow easy pump service.
- Page 8 2.23 Preferred pump location: The pump must, for optimum performance, be sited as close as possible to and never more than 4 metres from the HOT WATER cylinder. The pump should always be sited BELOW the HOT WATER take-off from the cylinder. The pump location is also dependent on limitations of the static inlet and outlet heads of the installation.
- Page 9 2 LOCATION – SINGLE PUMP Outlet head must be below bottom of cold water tank and able to pass a minimum of 0.8 l/ min of gravity flow Fig. 5 2 LOCATION – TWIN PUMP Outlet head must be below bottom of cold water tank and able to pass a minimum of 0.8 l/...
- Page 10 Hot water connection: 2.26 Hot water cylinder or storage tank: When a hot water cylinder or storage tank is used, ensure the pipework size from the cold water storage to the hot water storage is of adequate size and a minimum of 22 mm. 2.27 Hot water supply: The pump must be supplied with a dedicated feed direct from the hot water cylinder or storage tank, ensuring an air free connection to the pump.
- Page 11 3 PUMP CONNECTIONS Do not use stainless steel, chrome or nickel plated pipe with the flexible hose push-in plumbing connections. Do not introduce solder flux into the joint or surrounding area as connectors will be attacked and may fail. All solder joints should be completed and flux residues removed ...
- Page 12 3.12 Hose to pipework: 1. The hoses are fitted with plastic push-in connectors, which must only be connected with the following: a) 15 mm diameter copper pipe to BS EN 1057 – R250 (half hard) – Table 3. b) 15 mm plastic pipe to BS 7291 part 1 and part 2 (Table 1), or part 3 (Table 1) plus internal support sleeve*.
- Page 13 3.13 Typical Low Level Installation: In certain installations it may be necessary to install a 90° bend on the inlet or outlet connections of the pump before the flexible hose to accommodate a low level installation. Below are some preferred connection options. All connections seal on the pump body using a fibre or rubber sealing washer.
- Page 14 4 ELECTRICAL INSTALLATION / EARTHING 4.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 4.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D.
- Page 15 Do not remove terminal box cover. This product is not serviceable. 4.23 Supply Cord Replacement If the supply cord is damaged, it must be replaced by Stuart Turner Ltd or by one of their approved repairers, or similarly qualified persons in order to avoid a hazard.
- Page 16 Carefully check pump and pipework for leaks whilst pump running and stationary before leaving the installation unattended. 5.15 For Further Technical Support: Phone the Stuart Turner TechAssist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over the phone. Cont ...
- Page 17 6 MAINTENANCE Do not remove the terminal box cover. This is a non serviceable pump. 6.11 Water scale: As water is heated scale deposits are released in areas of hard water, scale can cause the mechanical seal to stick if left without use for long periods.
- Page 18 152 mm Weight (including fittings) 2.6Kg 2.2Kg Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. *Note: The maximum pressure that can be applied to the pump under any installation conditions.
- Page 19 **Note: A stored water temperature of 60°C is considered sufficient to meet all normal requirements and will minimize deposition of scale in hard water areas. ***Note: Both ends pumping 4.5 l/min and above. Maximum permissible water temperature 65°C. 7.11 Noise: The equivalent continuous A-weighted sound pressure level at a distance of 1 metre from the pump does not exceed 70 dB(A).
- Page 20 If pump continues to run, this indicates a closed circuit in P.C.B. either the flow switch reed or P.C.B. in the terminal box. Contact Stuart Turner. Leak in system. Check tap washers, w/c valve washers, pipe joints. Pump starts with all outlets Air in system.
- Page 21 Proof of purchase should accompany the returned unit to avoid delay in investigation and dealing with your claim. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please record here for your records. TYPE NO.
- Page 22 NOTES Cont ... - 22 –...
- Page 23 NOTES Cont ... - 23 –...
- Page 24 Issue No. 1819/2–01 Pt. No. 20679...
