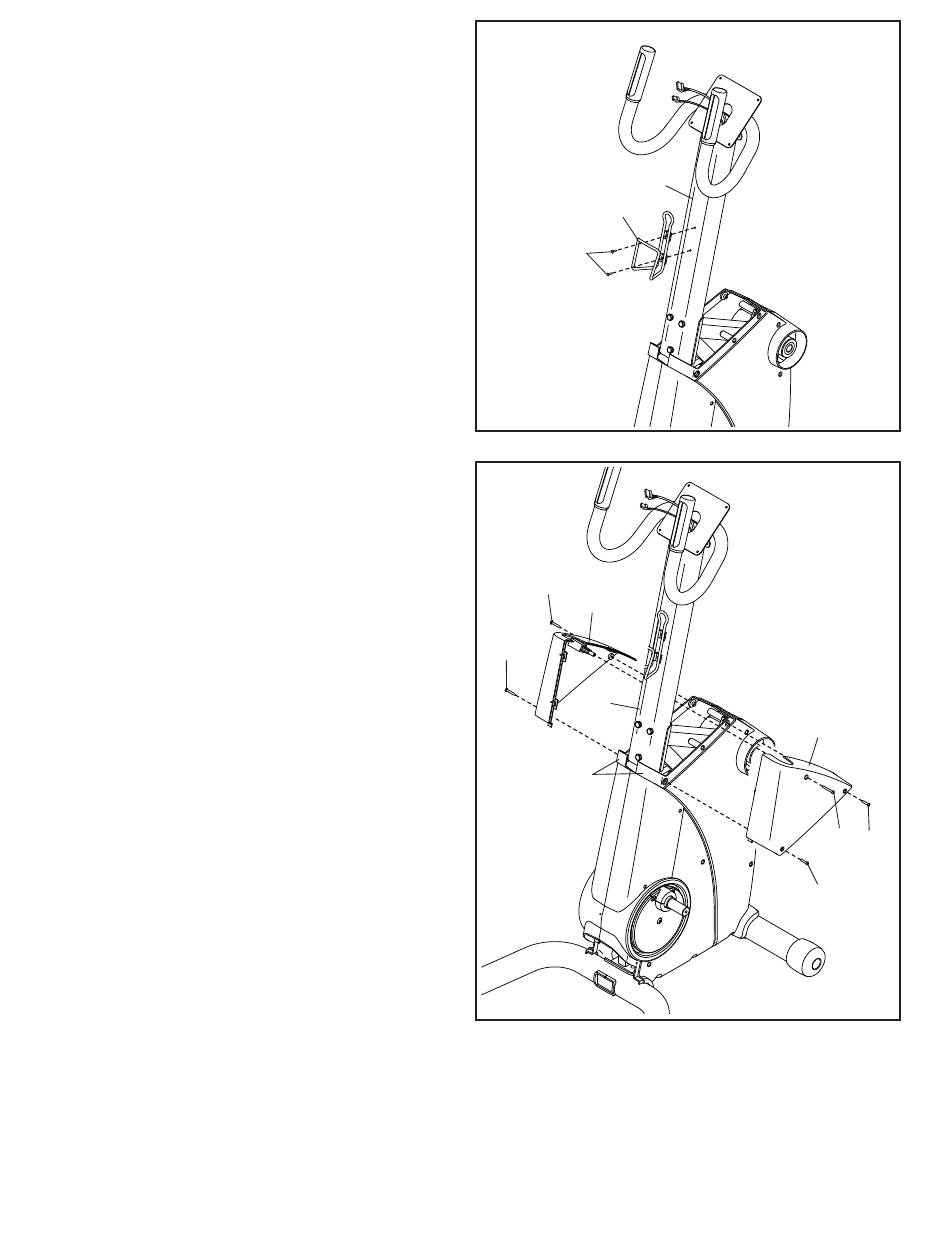

5. Attach the Water Bottle Holder (10) to the
Upright (4) with two M4 x 16mm Screws (93).
6. Identify the Left and Right Shield Covers
(29, 30).
Tip: Avoid pinching the wires. Press the
Left and Right Shield Covers (29, 30) together
around the Upright (4), and attach them with an
M4 x 25mm Screw (95).
Then, attach the Left and Right Shield Covers
(29, 30) to the Left and Right Shields (27, 28)
with four M4 x 16mm Screws (93); start all the
Screws, and then tighten them.
5
10
93
6
93
29
93
4
27, 28
9
4
Avoid pinching
the wires
30
95
93
93
