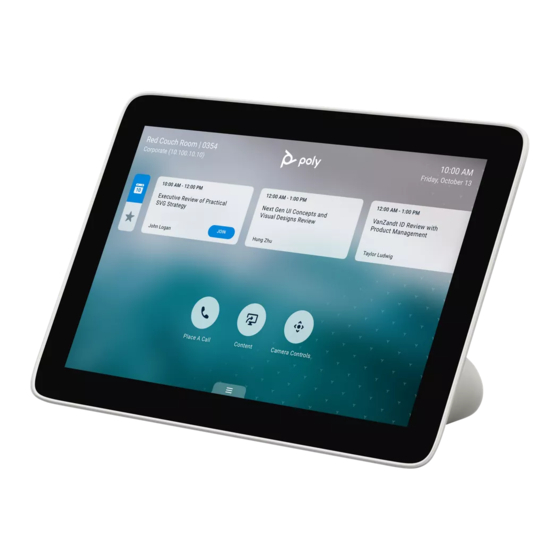

- Page 1 Poly TC8 User Guide 3.14.0 | October 2022 | 3725-30769-011A...
-
Page 2: Table Of Contents
Configure Poly TC8 VLAN Settings ...............................10 Configure Poly TC8 802.1X Settings ............................10 Using Web Proxies ..................................... 11 Manually Pair the Poly TC8 with a Video System ...........................11 Using the Poly TC8 in Poly Video Mode ..............................12 Calling .......................................... 12 Placing Calls ...................................... - Page 3 Downloading Poly TC8 Logs ................................. 22 Paired IP Devices ......................................22 IP Device Can’t Pair to the Video System ............................22 IP Device Doesn’t Display On the Available Devices List .......................23 Paired IP Device is Disconnected ..............................23 IP Device Paired to Inaccessible Video System...
-
Page 4: Before You Begin
Video system Refers to the Poly G7500, Poly Studio X70, Poly Studio X50, or Poly Studio X30 system. System Another way of referring to the Poly G7500, Poly Studio X70, Poly Studio X50, or Poly Studio X30 system. Related Poly and Partner Resources See the following sites for information related to this product. -
Page 5: Getting Started
• Using multiple Poly TC8 controllers to control a single system • Pairing with video systems over the network (wired LAN) for flexible room setups Note: Exact features and capabilities can vary if you aren’t using Poly Video Mode. See your third-party application’s documentation for information. TC8 Hardware Overview The following illustration and table outline the hardware features of the TC8. -
Page 6: Device Local Interface
Partner Mode instead of Poly Video Mode. Home Screen in Poly Video Mode The Home screen is the first screen you encounter in Poly Video Mode. From this screen, you have quick access to many of the system functions. -
Page 7: Access The Poly Control Center
Menu Access the Poly Control Center If your system is using a conferencing application that isn’t Poly, you can still access TC8 device and paired video system settings in the Poly Control Center. Task » On the right side of the device touchscreen, swipe left. -
Page 8: Setting Up The Poly Tc8
Pair the TC8 with a Poly video system over your primary network. When pairing the Poly TC8 with a Poly Video System, you can set up the controller while you set up the video system or after you complete the video system setup. -
Page 9: Manually Configure Ipv6 Address Settings
Specifies the default gateway assigned to your system. 5 Select Save. Manually Assign a Host Name and Domain Name You can manually enter the host name and domain name for your TC8 device. You also can modify these settings even if your network automatically assigns them. Task 1 In the device local interface, go to Settings >... -
Page 10: Configure Poly Tc8 Vlan Settings
Configure Poly TC8 VLAN Settings You can configure the TC8 virtual LAN (VLAN) settings. The VLAN ID of the Poly TC8 must match the VLAN ID of the system for system pairing to be successful. Note: VLAN isn’t supported in IPv6 environments. -
Page 11: Using Web Proxies
You can manually pair the Poly TC8 connected to your primary network with a video system in the room. To pair, the Poly TC8 must be on the same subnet as the video system and the following network components must be unblocked: •... -
Page 12: Using The Poly Tc8 In Poly Video Mode
With the TC8 device, you can control and manage aspects of your paired Poly video system. Information about placing calls, managing content, and controlling cameras in this guide pertains to systems in Poly Video Mode. If your video system is in Partner Mode, refer to your conferencing provider’s documentation for information on controlling the system. -
Page 13: Calling Contacts
» To reject an incoming call, select Ignore on the touchscreen or remote control. End a Call When your call is complete, hang up the call. If you have content such as blackboards, whiteboards, or snapshots, the system asks if you want to keep them. Task »... -
Page 14: Joining Meetings From The Calendar
1 Go to Place a Call > Favorites. 2 Choose a favorite card, then select Unfavorite. The contact is removed from the Favorites list. Call a Favorite Contact To quickly call a contact, select a favorite card. Task 1 Select a favorite card on the Favorites, Contacts, or Home screen. 2 Select Call. -
Page 15: Sharing Content
Task 1 Select an overbooked meeting card. The individual meeting cards display. 2 Choose one of the meeting cards and select Join to connect to the meeting. Join a Password-Protected Meeting Some meetings may require a password to join. Make sure that you have the password for password-protected meetings before you join. If you don’t have a meeting password and a message prompts you for one, contact the meeting organizer for the password. -
Page 16: End A Call With Blackboard Or Whiteboard Content
1 Select a snapshot or piece of content in the content tray. 2 Select Delete and confirm that you want to delete it. Note: This option isn’t available for content shared from a far-site participant. To delete that content, you must end the call. -
Page 17: Turn Your Camera On Or Off
) or off ( Selecting the Primary Camera In Poly Video Mode and Zoom Rooms, if you have more than one camera attached to the system, you can select the primary camera in or out of a call. Camera Priority When you connect or disconnect a camera, camera priority determines the primary or active camera. -
Page 18: Using Camera Presets
2 Select Delete Environment Controls Using the Poly TC8, you can control room elements that enable you to customize your meeting environment. Control Room Elements Using the Poly TC8 You can control room elements such as electronic shades, smart lighting, monitors, and projectors using the Extron Room Control App on the Poly TC8. -
Page 19: Settings
• Lights - Adjust the lights in the room. • Shades - Adjust the electronic shades in the room. • Display - Control monitors and projectors in the room. Settings Before or during calls, you can adjust video and audio settings, including adjusting the volume and changing the video layout. - Page 20 • In a call, select Volume. • Out of a call, select Menu > Volume. 2 Use the volume slider to increase or decrease the speaker volume.
-
Page 21: Device Maintenance
1 Disconnect the LAN cable from the Poly TC8 to power it off. 2 On the back of the Poly TC8, insert a straightened paper clip through the factory restore button pinhole (the pinhole has a raised dot, at both the top and bottom of the ventilation hole). -
Page 22: Troubleshooting
Task » In the device local interface, go to Settings > Information. Downloading Poly TC8 Logs The Poly TC8 logs are available in the paired video system’s log package. To download the log package, see your video system’s Administrator Guide. -
Page 23: Ip Device Doesn't Display On The Available Devices List
IP Device Doesn’t Display On the Available Devices List Symptom: Even though the TC8 device you want to pair is connected to the network, you don’t see it under Available Devices in the video system web interface. Problem: There are a few possible causes for this issue: •... -
Page 24: Ip Device Paired To Inaccessible Video System
Symptom: Your TC8 device was paired with a video system you can no longer access (for example, the video system lost its network connection or was moved to another location). Whatever the situation, the TC8 device screen now indicates it’s waiting to pair.
