Summary of Contents for Bosch WAV28M40AU

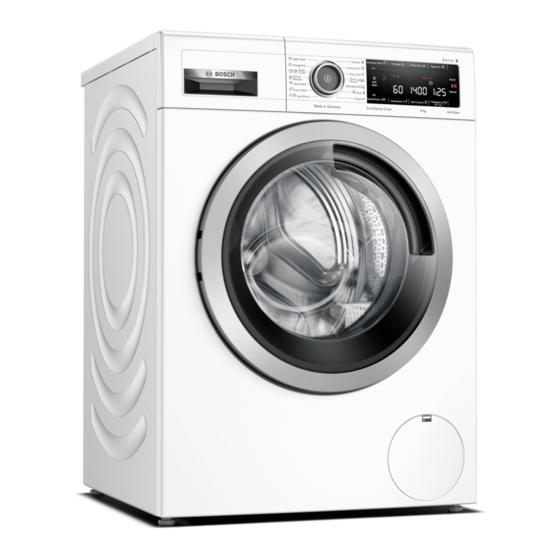

- Page 1 Washing machine WAV28M40AU [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Buttons ........ 22 1.1 General information.... 4 9 Programmes ...... 24 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 10 Accessories...... 28 1.4 Safe installation ...... 5 11 Laundry........ 28 1.5 Safe use ........ - Page 3 14 Childproof lock...... 31 14.1 Activating the childproof lock ........ 31 14.2 Deactivating the childproof lock ........ 32 15 Basic settings...... 33 15.1 Overview of basic settings .. 33 15.2 Changing the basic set- tings........ 34 16 Cleaning and servicing ... 34 16.1 Cleaning the drum.... 34 16.2 Cleaning the detergent drawer........
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. ▶...
-
Page 7: Safe Use
Safety en ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. - Page 8 en Safety WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. ▶ If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Laundry that has been pretreated with cleaning agents that con- tain solvents may cause an explosion in the appliance.
-
Page 9: Safe Cleaning And Maintenance
Safety en 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Incorrect repairs are dangerous. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re- placed by the manufacturer, the manufacturer's Customer Ser- vice or a similarly qualified person in order to prevent any risk. -
Page 10: Preventing Material Damage
en Preventing material damage Make sure that the length of the ▶ 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be ATTENTION! able to operate properly. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Remove all detergent residue, Reduce the washing temperature for ▶ spray residue or other residues im- lightly and normally soiled laundry. mediately if they come into contact a At lower temperatures, the appli- with the appliance. ance consumes less energy. -
Page 12: Installation And Connection
en Installation and connection Replace the accessories in ques- ▶ 4 Installation and con- tion before operating the appli- ance. nection → "Accessories", Page 28 Note: The appliance has been tested 4.1 Unpacking the appliance at the factory to check it is in working order. As a result, water stains may ATTENTION! remain in the appliance. - Page 13 Installation and connection en ATTENTION! Installation loca- Requirements If residual water in the appliance tion freezes, this may cause damage to Against a wall Do not trap the the appliance. power cord or Do not install or operate this appli- ▶ the hoses ance anywhere that is liable to ex- between the wall...
-
Page 14: Connecting The Appliance
en Installation and connection Unscrew and remove all of Put on the 4 cover caps. the screws for the 4 transit bolts using a WAF 13 wrench. Push the 4 cover caps downwards. Remove the power cable from the holder. Note: To install the transit bolts to transport the appliance, perform these steps again in the reverse or- Remove the 4 sleeves. - Page 15 Installation and connection en Connect the water inlet hose to a Plastic pipe with Fix and secure tap (26.4 mm = 3/4"). rubber sleeve or the water outlet gully hose with an el- bow. Connecting the appliance to the electricity supply Note: Your electrical domestic install- ation for this appliance must comply Open the water tap carefully and with the local legal provisions and...
-
Page 16: Aligning The Appliance
en Installation and connection Use a WAF 17 wrench to tighten 4.6 Aligning the appliance the lock nuts against the housing In order to reduce noise and vibra- until they are hand-tight. tion and to prevent the appliance from moving, align the appliance cor- rectly. -
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. 5.2 Detergent drawer Maintenance flap for the drain pump → Page 35 Note: Observe the manufacturer's in-... -
Page 18: Control Panel
en Familiarising yourself with your appliance Measuring aid for liquid deter- gent → "Inserting the measuring aid for liquid detergent", Page 29 Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. -
Page 19: Before Using For The First Time
first time en a After the programme has ended, first time 6 Before using for the the display shows: -0-. first time Start the first wash cycle or press to switch off the appliance. Prepare the appliance for use. first time → "Basic operation", Page 29 6.1 Starting an empty wash- ing cycle Your appliance was inspected thor-... -
Page 20: Display
en Display 7 Display The display shows the current settings, options or relevant information. Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. Program end time → "Buttons", Page 22 Recommendation for the maximum load capacity for the selected program in kg. - Page 21 Display en Display Description Spin Programme status Pause Programme status Program end Programme status ¡ Lights up: The childproof lock is activated. ¡ Flashes: The childproof lock is activated and the appli- ance has been operated. → "Deactivating the childproof lock", Page 32 Blood The stain type is activated.
-
Page 22: Buttons
en Buttons 8 Buttons The selection of programme settings depends on the programme that is set. Button Selection More information Start/Reload ¡ Start Start, cancel or pause the pro- gramme. ¡ Cancel ¡ Pause SpeedPerfect ¡ Activate Activate or deactivate a shorter pro- gramme duration. - Page 23 Buttons en Button Selection More information Prewash ¡ Activate Activate or deactivate prewash, e.g. for washing heavily soiled laundry. ¡ Deactivate Rinse Plus ¡ Activate Activate or deactivate an additional rinse cycle. ¡ Deactivate Recommended for particularly sensit- ive skin or in regions with very soft water.
-
Page 24: Programmes
en Programmes 9 Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. load (kg) Cottons Wash hard-wearing items made from cotton, linen or blended fabrics. Also suitable as a short program when you activate SpeedPerfect ... - Page 25 Programmes en Programme Description Max. load (kg) Programme setting: ¡ Max. 60 °C ¡ Max. 1400 rpm Delicates/Silk Wash delicate, washable items made from silk, vis- cose and synthetic fabrics. Use a detergent that is suitable for delicates or silk. Note: Wash especially delicate items or items with hooks, eyelets or clips in a mesh laundry bag.
-
Page 26: Laundry
en Programmes Programme Description Max. load (kg) Shirts/ Wash non-iron shirts and blouses made from cot- Blouses ton, linen, or synthetic or blended fabrics. Tip: In order to avoid creasing in your laundry, you can activate Easy Iron . The laundry is only given a short spin and can be removed while still drip- ping wet. - Page 27 Programmes en Programme Description Max. load (kg) The programme duration is approx. 30 minutes. If you wish to reduce the programme duration to 15 minutes, activate SpeedPerfect . The maximum load is reduced to 2.0 kg. Programme setting: ¡ Max. 40 °C ¡...
-
Page 28: Preparing The Laundry
en Accessories 10 Accessories Use original accessories. These have been made especially for your appliance. Order num- Water inlet hose ex- Extend the water inlet hose for cold water WMZ2381 tension or AquaStop (approx. 2.50 m). Fixing brackets Improves the stability of the appliance. WMZ2200 Liquid detergent in- Measure liquid detergent. -
Page 29: Basic Operation
operation en Requirements operation 13 Basic operation ¡ The laundry is prepared and sor- ted. operation → "Laundry", Page 28 13.1 Switching on the appli- ¡ The drum is empty. ance Open the door. Place the laundry in the drum. Requirement: The appliance has been correctly installed and connec- Close the door. -
Page 30: For Liquid Detergent
en operation Pull out the detergent drawer. 13.6 Use the measuring aid Pour in detergent. for liquid detergent → "Detergent drawer", Page 17 To add liquid detergent, you can use If required, add the care product. a measuring aid in the detergent Push in the detergent drawer. drawer. -
Page 31: Cancelling The Pro- Gramme
Childproof lock en Add or remove laundry. 13.14 Switching off the appli- Close the door. ance Press Start/Reload Press Turn off the tap. 13.11 Cancelling the pro- Wipe the rubber gasket dry and re- gramme move any foreign objects. Press Start/Reload Open the door. The appliance door remains locked for safety reasons if the temperature and water levels are... -
Page 32: Deactivating The Childproof Lock
en Childproof lock 14.2 Deactivating the child- proof lock Requirement: To deactivate the childproof lock, the appliance must be switched on. Press and hold the two Child Lock ▶ 3 sec. buttons for approx. 3 seconds. So that the programme currently running is not cancelled, the pro- gramme selector must be set to the initial programme. -
Page 33: Basic Settings
Basic settings en 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of basic settings Basic setting Programme posi- Value Description tion End signal 0 (off) Set the volume of 1 (quiet) the signal at the 2 (medium) end of the pro- 3 (loud) -
Page 34: Changing The Basic Set- Tings
en Cleaning and servicing 15.2 Changing the basic set- 16 Cleaning and servi- tings cing Set the programme selector to po- To keep your appliance working effi- sition 1. ciently for a long time, it is important to clean and maintain it carefully. 16.1 Cleaning the drum CAUTION Risk of injury! -
Page 35: Cleaning The Drain Pump
Cleaning and servicing en Press down on the insert and re- Fit the insert and click it into place. move the detergent drawer. Clean the opening for the deter- Pull out the insert upwards. gent drawer. Clean the detergent drawer and in- Push in the detergent drawer. - Page 36 en Cleaning and servicing Open and remove the mainten- CAUTION - Risk of scalding! ance flap. When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
- Page 37 Cleaning and servicing en Ensure that both impellers can Cleaning the drain pump turn. Requirement: The drain pump is empty. → Page 35 Since water may remain in the drain pump, unscrew the pump cap carefully. The filter insert in the pump ‒ housing may become stuck due to coarse particles of dirt.
-
Page 38: Cleaning The Intake Opening In The Rubber Gasket
en Cleaning and servicing Insert and close the maintenance Remove any blockages from the flap. intake opening. Note: Do not use any sharp or poin- 16.4 Cleaning the intake ted objects. opening in the rubber gasket Regularly check the intake opening in the rubber gasket for any block- ages and clean the intake opening. -
Page 39: Troubleshooting
Troubleshooting en 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 40 en Troubleshooting Fault Cause and troubleshooting "E:30 / -80" Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 41 Troubleshooting en Fault Cause and troubleshooting "E:30 / -10" and/or If the error message is displayed again, call cus- tomer service. → "Customer Service", Page 49 Detergent dosage is too high. Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down).
- Page 42 en Troubleshooting Fault Cause and troubleshooting The appliance is not The mains plug of the power cord is not plugged in. working. Connect the appliance to the power supply. ▶ The circuit breaker in the fuse box has tripped. Check the circuit breaker in the fuse box. ▶...
- Page 43 Troubleshooting en Fault Cause and troubleshooting The water is not drain- Drain pump is blocked. ing. → "Cleaning the drain pump", Page 35 ▶ is activated. Continue the programme by selecting Spin or ▶ Drain and pressing Start/Reload → "Resuming the programme when the programme status is Rinse Hold", Page 31 The water outlet hose is connected too high.
- Page 44 en Troubleshooting Fault Cause and troubleshooting The spin cycle runs The unbalanced load detection system eliminates an several times. imbalance by repeatedly redistributing the laundry. Not a fault – no action required. ▶ Note: When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
- Page 45 Troubleshooting en Fault Cause and troubleshooting Heavy foam build-up Detergent dosage is too high. Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 46 en Troubleshooting Fault Cause and troubleshooting Loud noises during Secure the appliance feet. ▶ the spin cycle. → "Aligning the appliance", Page 16 Transit bolts have not been removed. → "Removing the transit bolts", Page 13. ▶ Banging noises, rat- Foreign bodies have got into the drain pump. tling in the drain → "Cleaning the drain pump", Page 35 ▶...
- Page 47 Troubleshooting en Fault Cause and troubleshooting The spin result is not Note: Where possible, mix large and small items in satisfactory. The laun- the drum. Different sized items of laundry distribute dry is too wet/too themselves better during the spin cycle. damp. Start the ...
-
Page 48: Emergency Release
en Transportation, storage and disposal 17.1 Emergency release 18.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 35 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 49: Disposing Of Old Appliance
Customer Service en 18.4 Disposing of old appli- 19 Customer Service ance Detailed information on the warranty Valuable raw materials can be re- period and terms of warranty in your used by recycling. country is available from our after- sales service, your retailer or on our WARNING website. -
Page 50: Information For Test Institute
en Consumption values 20 Consumption values The indicated consumption values are approximate. The values may deviate from the indicated values depending on water pres- sure, water hardness, water inlet temperature, room temperature, type of laun- dry, amount and soiling of laundry, detergent used, fluctuations in the mains voltage and selected settings. -
Page 51: Technical Data
Technical data en Items Instruction Items Instruction Pre-treatment of Run two empty Loading proced- First, load the new appliance runs of Cot- laundry items tons 90 °C into the drum by with 1400 rpm: filling the external The 1st run with circle. Fill pos- 50 g detergent sible gaps with and 8 g anti... - Page 52 en Technical data Water pressure ¡ Minimum: Length of the wa- 150 cm 100 kPa ter inlet hose (1 bar) Length of the wa- 150 cm ¡ Maximum: ter outlet hose 1000 kPa Length of the 160 cm (10 bar) power cord...
- Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
