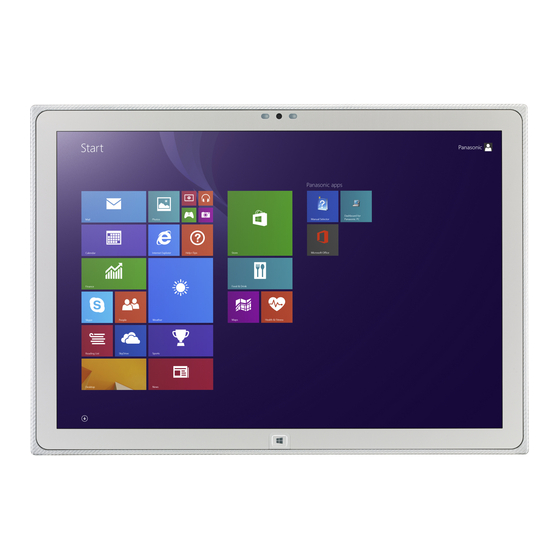

OPERATING INSTRUCTIONS Personal Computer UT-MB5000 UT -MB series series Model No. Model No. Contents Read Me First Safety Precautions .......... Regulatory Information ........Getting Started Introduction ............ Description of Parts ........First-time Operation ........Turning On / Turning Off ........ Useful Information Handling and Maintenance ......
Safety Precautions To reduce the risk of injury, loss of life, elec- DANGER equipment or property, always observe the Precautions on the Battery Pack following safety precautions. Do Not Throw the Battery Pack into a Fire or Expose It to Excessive Heat Explanation of symbol word panels Generation of heat, ignition or rupture The following symbol word panels are used...
Page 3
DANGER Do Not Connect the AC Adaptor to a Power Source Other Than a Stan- dard Household AC Outlet Precautions on the Battery Pack Do Not Use with Any Other Product may result. Connecting to a DC/AC The battery pack is rechargeable and converter (inverter) may damage the AC adaptor.
Page 4
Safety Precautions WARNING Do Not Leave This Product in High Temperature Environment for a Long Period of Time Do Not Turn the Volume Up to Loud Leaving this product where it will be ex- When Using Headphones posed to extremely high temperatures Listening at high volumes that over- stimulate the ear for long periods of may deform the cabinet and/or cause...
Page 5
Phone lines (IP phone (Internet Pro- • the purpose of medical diagnosis. tocol Telephone), Telephone lines, z Panasonic shall not be liable for loss of internal phone lines (on-premise data or other incidental or consequential switches), digital public phones, damages resulting from the use of this etc.)
Page 6
10 °C {50 °F} ARE INVOLVED WITH ENSURING HUMAN or below.) LIFE OR SAFETY. PANASONIC WILL NOT z If the temperature is low, the operating BE RESPONSIBLE FOR ANY LIABILITY RE- time is shortened. Only use the computer SULTING FROM THE USE OF THIS PROD- within the allowable temperature range.
Regulatory Information Information to the User / Informations destinées aux utilisateurs <Only for model with wireless LAN/Bluetooth> consommateur du fait que cet appareil opère This product and your Health dans les limites des directives concernant This product, like other radio devices, emits les normes et les recommendations de sécu- radio frequency electromagnetic energy.
Page 8
Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply with these precautions.
Page 9
Do not operate Personal Computer or Handheld Computer incorporating wireless WAN when you are near petrol stations, fuel depots, chemical plants or where blasting op- erations are in progress. Operation of any electrical equipment in potentially explosive atmospheres can constitute a safety hazard. Your Personal Computer or Handheld Computer incorporating wireless WAN modem re- ceives and transmits radio frequency energy while switched on.
Page 10
Consult the Panasonic Service Center or <Only for model with wireless LAN> an experienced radio/TV technician for This product is restricted to indoor use due help.
Page 11
32-M-1 community due to environmental consider- ations. For disposal or recycling information, panasonic.com/environmental or call 1-888- 769-0149 65-M-2 <For USA-California Only> This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply.
Page 12
Regulatory Information For Canada Canadian ICES-003 <Only for model with wireless LAN/wireless CAN ICES-3(B)/NMB-3(B) WAN/Bluetooth> 7-M-2 z This computer complies with Industry <Only for model with wireless LAN/Bluetooth> Canada radiation exposure limits set forth Industry Canada for an uncontrolled environment. z This PC with WLAN and/or Bluetooth This product complies with RSS210 Industry Canada.
Page 13
For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when disposing of this product. Please see the Panasonic website for further information on collection centers, etc. 68-M-1...
Introduction Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions carefully. In these instructions, the names are referred as follows. ® indicates Windows 8 Operating System. ® indicates Windows 7 Operating System. Terms and illustrations in these instructions...
Page 15
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. ® Bluetooth is a registered trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Pana- sonic Corporation.
First-time Operation Setup Windows. Follow the on-screen instructions. z The computer restarts several times. Do not touch the screen or tablet buttons, and wait until the drive indicator turned off. z After the computer is turned on, the screen remains black or unchanged for a while, but this is not a malfunction.
Turning On / Turning Off Turning On Press and hold the power switch (Î page 16) until the power indicator (Î page 16) lights. NOTE z Do not press the power switch repeatedly. z The computer will forcibly be turned off if you press and hold the power switch for four sec- onds or longer.
Handling and Maintenance Operation environment dropping. Do not place the computer upright or turn it over. If the computer is exposed to an extremely strong impact, it may become damaged. z Operating environment to 50 to 122 } (IEC60068-2-1, 2) °C °C °F...
Page 19
Handling and Maintenance When the battery indicator does not light on The battery indicator may not light on even if the AC adaptor and the battery pack are correctly connected to the computer, due to the following reasons. z The AC adaptor’s protection function may be working. In this case, pull out the AC cord and wait for more than 1 minute before reconnecting the AC cord.
Page 20
Set each item to ON, and the brightness of the screen display will adjust automatically. The ambient light sensor is located at the top of LCD. The ambient light cannot be detected properly if this area is obstructed or dirty. z Magnetic sensor The magnetic sensor on the computer operates by detecting geomagnetism.
Page 21
Handling and Maintenance Maintenance If drops of water or other stains get on the surface of the LCD panel, wipe them off immediately. Failure to do so may result in staining. To clean the LCD panel Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD Surface”...
Installing Software Installing software will return the computer to the default condition. When you install the soft- Back up important data to other media or an external hard disk before installation. CAUTION not available to store data. To check the Recovery Partition, perform the following methods. Open “Computer”.
Page 23
Enter . Press Enter . Computer will restart. Press while [Panasonic] boot screen is displayed. The Setup Utility starts up. z If the password is requested, enter the Supervisor Password. Select the [Exit] menu, then select [Recovery Partition] and press Enter Touch [Reinstall Windows] and touch [Next].
Page 24
Otherwise installation may become unavailable as Windows may not start up or the data may be corrupted. When Ending process screen is displayed, touch [OK] to turn off the computer. Turn on the computer. z If the password is requested, enter the Supervisor Password. Perform the “First-time Operation”...
Page 25
Set the Recovery Disc into the DVD drive. Touch [Exit] and double-touch [Save Values and Reboot]. Computer will restart. Touch top left of the screen while [Panasonic] boot screen is dis- played. The Setup Utility starts up. z If the password is requested, enter the Supervisor Password.
Page 26
Touch [OK]. The computer will restart. Touch [OK] to turn off the computer. Turn on the computer. z If the password is requested, enter the Supervisor Password. Perform the “First-time Operation” (Î page 20). Start the Setup Utility and change the settings as necessary. Perform Windows Update.
“Reference Manual”. For a software problem, refer to the software’s instruc- tion manual. If the problem persists, contact Panasonic Technical Support (Î page 47). You can also check the computer’s status in the PC Information Viewer (Î...
Page 28
Touch z If the problem persists, the internal clock battery may need to be re- placed. Contact Panasonic Technical Support (Î page 47). z When the computer is connected to LAN, check the date and time of the server.
Page 29
Troubleshooting (Basic) Starting Up Cannot resume. z One of the following operations may have been carried out. Press the power switch to turn on the computer. Data not saved will be lost. y In sleep mode, the AC adaptor or battery pack was disconnected, or a peripheral was connected or disconnected.
Page 30
The screen is dark. z The screen is darker when the AC adaptor is not connected. Open the Dashboard for Panasonic PC and adjust the brightness. As you in- crease the brightness, battery consumption increases. You can separately set the brightness for when the AC adaptor is con- nected and when not connected.
Page 31
Troubleshooting (Basic) Display The screen is disor- z Changing the number of display colors and resolution may affect the dered. screen. Restart the computer. z Connecting/disconnecting an external display may affect the screen. Restart the computer. Under factory default settings, the brightness of the display screen will adjust automatically based on the ambient light detected by the ambient light sensor.
Page 32
Screen Cannot display “Charm” z Delete the calibration data. “Charm”. On-screen Document z Install Adobe Reader. A Log on to Windows as an administrator. The document of PDF format is not displayed. B Touch Enter C Update Adobe Reader to its latest version. If your computer is connected to the internet, start up Adobe Read- er and touch ...
