NXP Semiconductors
UM11496
User manual

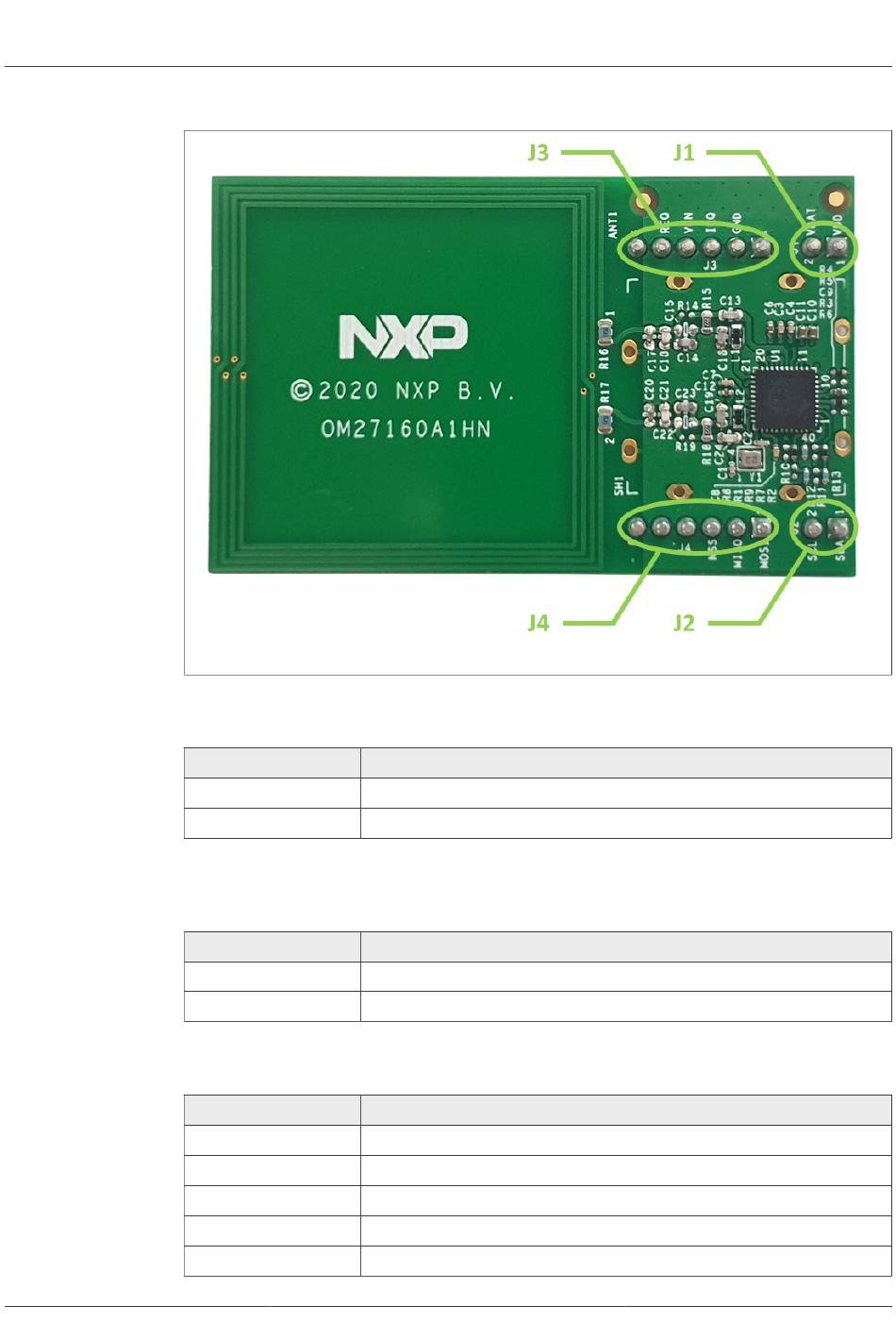

Figure 10. OM27160 board interface connectors
Table 2. OM27160 board J1 connector pinout
J1
#1
#2
Table 3. OM27160 board J2 connector pinout (only relevant for OM27160A1HN
version)
J2
#1
#2
Table 4. OM27160 board J3 connector pinout
J3
#1
#2
#3
#4
#5
All information provided in this document is subject to legal disclaimers.
Rev. 1.3 — 24 November 2022
PN7160 signal
VDD(PAD): 1.8 V or 3.3 V host interface voltage reference
VDD(UP/VBAT: 2.8 V to 5.5 V supply voltage
PN7160 signal
I2C_SDA: I2C-bus serial data
I2C_SCL: I2C-bus serial clock input
PN7160 signal
Not connected
GND: ground
IRQ: interrupt request output
VEN: reset pin
DWL_REQ: download request pin
UM11496
PN7160 evaluation board
© 2022 NXP B.V. All rights reserved.
11 / 19
