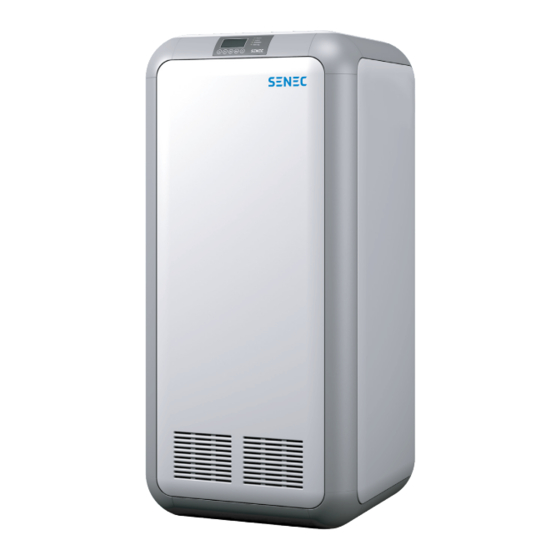

Summary of Contents for SENEC Home V3 hybrid
- Page 1 Your life. Your energy. For a safe & efficient installation of SENEC products! SENEC.Home V3 hybrid User Manual Valid for: SENEC.Home V3 hybrid Serial number: AU‑V3‑H‑xxLI10‑xxxxx Valid in: Australia Document version: Publication date: 09/05/2023 Document number: TD140‑090.12...
- Page 2 +61 8 6280 1206 info@senec.com hello@senec.com E‑mail: E‑mail: www.senec.com www.senec.com.au Internet: Internet: SENEC is a subsidiary of EnBW Energie SENEC Australia is a society of SENEC GmbH Baden‑Württemberg AG. SENEC-Service service-australia@senec.com E‑mail: Change history Version Valid from 13/05/2020 14/04/2022 09/05/2023...
-
Page 3: Table Of Contents
3.2.1 Internal PV isolator switch (only for product revision 0 & 1) ..............13 3.2.2 Display ................................13 Description of functions ..........................15 3.3.1 Case and display ............................15 3.3.2 SENEC.Inverter V3 LV inverter ........................16 3.3.3 Control and charging electronics ......................16 3.3.4 Battery modules ............................16 3.3.5 RCMU (only for product revision 0) ......................16... - Page 4 7.4 Notifications ..............................27 7.4.1 Device notifications ............................27 7.4.2 Battery module notifications ........................28 8 Servicing............................30 Electrical testing (recommended) ........................30 Cleaning ................................30 9 Decommissioning..........................32 Temporary decommissioning .........................32 Permanent decommissioning .........................32 10 Disposal............................32 11 Technical data..........................33 12 List of abbreviations......................... 36 TD140‑090.10 | Version 1.0 | 09/05/2023...
-
Page 5: Basic Information
This User Manual contains all the information you need to use the SENEC.Home V3 hybrid, which is hereinafter re‑ ferred to as the “SENEC battery storage”, as intended. 1.1 Target group This document is aimed at the end users of the SENEC battery storage. The end user may only carry out the actions listed in this User Manual. Independent assembly, modification or repair of the SENEC battery storage by end users is expressly prohibited. -
Page 6: Product Identification
+49 341 87057-0 - service@senec.com MPPT inputs Fig.1 Identification plate ‑ layout (left), position on the outside (middle), position inside (right) Product maintenance measures can lead to design amendments to SENEC battery storage systems, translating to various product revisions. These product revisions are differentiated by serial number as follows: Product revision Series number Amendments SENEC.Home V3 hybrid... -
Page 7: User Guidance
24 hours with subsequent reconnection are harmless. If the internet connection to the server of the my.senec.com online portal is interrupted for 120 hours, the SENEC battery storage will switch to the “No server connection” operating status. Grid operation will cease until the internet connection is re‑established. - Page 8 Conditions pertaining to internet connections: • The router must have a DHCP function, so as to be able to assign the SENEC battery storage an IP address. • The IP address may not be in the range of 192.168.168.xxx, otherwise the DHCP will have to be modified. • The router settings have no restrictions. • Parental controls are deactivated.
-
Page 9: Safety
PV installations. The generators are connected on the AC side. PV installations may also be directly connected on the DC side without the use of an external inverter. The SENEC battery storage operates as a charge controller and converter from direct current to alternating current and vice versa. -
Page 10: General Safety Instructions
Danger to life when working on the PV generator! DANGER If the SENEC battery storage is in operation while work is being performed on the PV generator or the PV line, there is a risk of electric shocks or electric arcs. - Page 11 Only use the SENEC battery storage in closed spaces and in accordance with the permissi‑ Ê ble humidity levels (10 % to 85 %, non‑condensing). Do not use the SENEC battery storage in the open air, or in a room that cannot be heated Ê in winter.
-
Page 12: Product Description
Data in [...] refer to Australian systems. 04129 Leipzig (Germany) Follow installation manual before connecting to the grid. TD110-095.11 +49 341 87057-0 - service@senec.com Fig.2 Views (left to right: front, rear, right side, left side) Internal PV isolator switch (depending on revision, see Ventilation slots “1.3 Product identification“... -
Page 13: Control And Display Elements
SENEC battery storage is supplied with energy from the PV generator. PV OFF SENEC battery storage is not supplied with energy from the PV generator. The PV isolator switch (depending on revision, see “1.3 Product identification“ on page 6) is only intended to be used for protection and servicing purposes. - Page 14 The display has the following LEDs: Designation Explanation Passive The SENEC battery storage is not being charged or discharged and is in standby mode. Charge Grid operation is active. The SENEC battery storage is being charged with excess generated power.
-
Page 15: Description Of Functions
• Battery modules The SENEC battery storage can be coupled with other generation installations on the AC and on the DC side. A PV installation can be connected directly on the DC side. On the AC side, the system can be coupled with additional PV inverters. -
Page 16: Senec.inverter V3 Lv Inverter
This prevents the SENEC battery storage from feeding fault currents into the grid. Otherwise, protection devices such as RCD switches could be disabled. If a fault current is detected, the SENEC battery storage will be automatically disconnected from the grid. -
Page 17: Selftest
The power meter is used to measure the four‑wire three‑phase supply. It measures active power, voltage and fre‑ quency per phase and sends these values to the SENEC battery storage via a data link. To connect to other types of grid, please get in touch with your SENEC contact. -
Page 18: Scope Of Delivery
4 Scope of delivery The scope of delivery of the SENEC battery storage comprises 3 packaging units: • SENEC battery storage • Accessories kit (included with SENEC battery storage) • Battery modules (individually packaged) Number Designation SENEC battery storage SENEC.Home V3 hybrid... - Page 19 Cage nut for tilt protection (M6) Battery modules 1 – 2 Battery modules • SENEC.Home V3 hybrid 5: 1x battery module (4.5 kWh useful capacity) • SENEC.Home V3 hybrid 10: 2x battery modules (9.0 kWh useful capacity) TD140‑090.10 | Version 1.0 | 09/05/2023...
-
Page 20: Storage
5 Storage When storing a non‑installed SENEC battery storage, note the permissible storage temperature of ‑20 °C – +50 °C, at a relative humidity of 45 % – 85 %. Non‑installed battery modules may only be stored by your installer. -
Page 21: Registration
Your installer is responsible for registering your system. 6.2 Registering with the distribution grid operator The SENEC battery storage must be registered with the distribution grid operator. Your installer is responsible for registering your system. TD140‑090.10 | Version 1.0 |... -
Page 22: Operation
Task 2 weeks Check that the SENEC battery storage is active and that there is no malfunction. In the event of a malfunction, the “Error” LED will light up on the display and there will be a notification on my.senec.com. -
Page 23: Ip Address
7.2.2 IP address The IP address indicates whether the SENEC battery storage is connected to the network. Display Explanation IP address (e.g. 192.168.xxx.xxx) SENEC battery storage is connected to the customer’s network. No IP assigned Briefly displayed: SENEC battery storage requesting IP address. - Page 24 Off by display The SENEC battery storage has been switched off via the display. If the circuit break- er has not been switched off, the battery modules will continue to be monitored and recharged as necessary. If the grid voltage is interrupted, the SENEC battery storage will also be completely without power.
-
Page 25: Error
If error message does not disappear cation disrupted. Possible causes. (for >30 minutes): Installer action. If this error is active, the SENEC battery storage will attempt 3 resets within 30 minutes. Error: No connection to For daisy-chained systems only: A subsidiary system •... - Page 26 (for >12 h): Installer action. grid. No server connection No stable internet connection to the my.senec.com server • Reboot the router for over 120 hours. Normal operation will cease until the • Reboot all network components server connection has been re-established.
-
Page 27: Notifications
• Installer action DC coil off test Step of the selftest. Voltage comparison being run This notification does not indicate a between battery and SENEC.Inverter with DC contactor hazard and there is no need for action. open. DC coil on error Fault found on DC contactor. -
Page 28: Battery Module Notifications
Switch on the SENEC battery storage via the display. Selftest starting Step of the selftest. The SENEC battery storage is going This notification does not indicate a into test mode. The diagnosis function is starting. hazard and there is no need for action. - Page 29 Notification Meaning Recommended action Over-Voltage The permissible module voltage has been exceeded. • Restart the SENEC battery storage If there is no change: • Discharge the battery modules to a state of charge of 15 % • Installer action Shunt Wire Error Internal error detected in battery module.
-
Page 30: Servicing
Regular electrical testing of stationary electrical installations, including the SENEC battery storage, is recommend‑ ed. By performing regular electrical testing, you can prove that you are diligently fulfilling your testing obligations as the operator and are keeping the system in proper condition. This is a requirement for SENEC's warranty and may also be necessary for insurance purposes. - Page 31 2. Clear any deposits from the ventilation slots. The side panels of the SENEC battery storage can be cleaned with a soft, damp cloth. A small quantity of normal household cleaner may be applied to the damp cloth to remove stubborn dirt.
-
Page 32: Decommissioning
Contact your installer. Ê 9.1 Temporary decommissioning The SENEC battery storage is designed for permanent operation and should only be decommissioned in exceptional cases. Contact your installer in such an instance. 9.2 Permanent decommissioning Contact your installer if you plan to permanently decommission the SENEC battery storage. -
Page 33: Technical Data
Self-consumption (standby) 25 W Backup power-capable* Yes* Communication Ethernet User interfaces SENEC.App, Display and my.senec.com (user portal) Fault monitoring, fault log Yes, via remote monitoring Automatic updates Control of external Dynamic control of all compatible PV inverters PV inverters Storage system topology... - Page 34 SENEC.Home V3 hybrid AC performance data Voltage U 230 a.c. V +N+PE AC_out, nom. Frequency f 50 Hz AC_out, nom. Current I 1x 25 a.c. A AC_out, rated Max. active power P 1x 5.0 kW AC_out, rated Max. apparent power S 1x 5.0 kVA...
- Page 35 Inverter topology isolated (battery), non-isolated (PV) * The backup power mode (optional) is only available with the package "SENEC.Backup Power pro". Extra costs for additional material and installation may apply. ** The depth of discharge (DoD) is 100 %. *** Power derating possible depending on temperature and state of charge.
-
Page 36: List Of Abbreviations
12 List of abbreviations Abbreviation Meaning Alternating current Battery management system Direct current DHCP Dynamic host configuration protocol — communication protocol for the assignment of network configura- tions Field-effect transistor Graphical user interface Isolated power unit Main control unit Maximum power point Network processing unit Photovoltaics RCMU...
Need help?
Do you have a question about the Home V3 hybrid and is the answer not in the manual?
Questions and answers

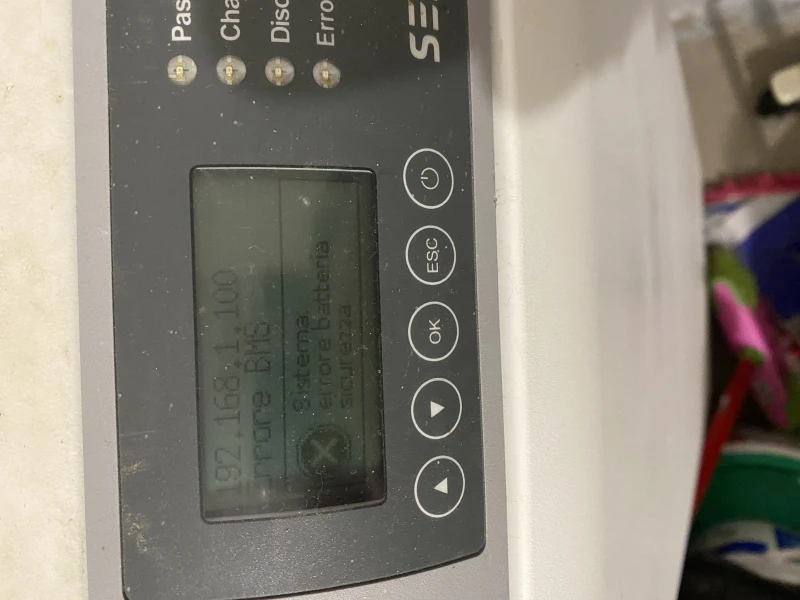

Sul display della batteria di accumulo modello Senec.Home V3 Hybrid compaiono due messaggi: il alto mi dà “errore BMS 192.168.1.100. Mentre in basso: “ Sistema errore batteria sicurezza” Grazie
il display su invertere riporta questa dicitura: " non assegnare ip errore di autotest ,sistema:ecomunicazione inverter (4/6) "
Since one week Our Home V3 Hybrid installed 2022 is showing wattmeter error & missing IP. We power OFF unit in order to avoid battery deep lowering. Is there any action we can do lacally? We did open a service request but they are taking long to plan the visit. Thanks indeed Sandro.
Segnala batteria al litio spenta
To troubleshoot a SENEC Home V3 hybrid lithium battery that is not powering on, follow these steps:
1. Check the Circuit Breaker: Ensure the SENEC battery storage’s circuit breaker in the switchboard is switched on.
2. Restart the System: Try restarting the SENEC battery storage.
3. Verify Battery Module Status: If all battery modules are switched off, check if the Battery Management System (BMS) is offline. Restart the system if necessary.
4. Check for BMS Errors: If the system reports a BMS error, ensure the ambient temperature is within the allowed range. Adjust if needed and restart the system.
5. Inspect Battery Voltage: If there is a battery voltage error, there may be a discrepancy between the measured voltage and the battery type. This requires installer intervention.
6. Check for Emergency Charge Errors: If an automatic emergency charge error occurs, verify the circuit breaker and reset the system.
If the issue persists after these steps, further action from a qualified installer may be required.
