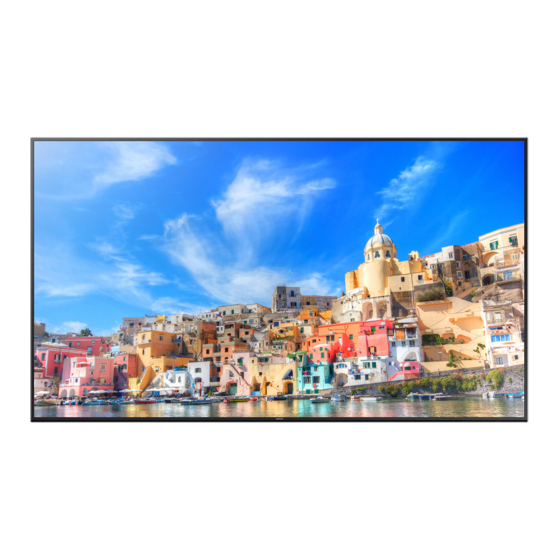

Samsung QM85F Quick Start Manual

Quick Setup Guide
QM85F
– The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to
improve the performance.
– Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
| Checking the Components
Contact the vendor where you purchased the product if any
components are missing.
Warranty card
Quick Setup Guide
(Not available in some locations)
MagicInfo Software DVD Power cord
Batteries
Remote Control
(Not available in some locations)
DP cable RS232C(IN) adapter
AUDIO adapter HOLDER-CABLE X 3
BN68-08988E-00
| Control Panel
Network box
mounting hole
Power on the product.
1
If you press the button when the product is turned on, the
control menu will be displayed.
- To exit the OSD menu, press and hold the panel key for at
least one second.
Move to the upper or lower menu. You can also adjust the
2
value of an option.
Move to the left or right menu.
3
- You can adjust the volume by moving the panel key left or
right when the control menu is not displayed.
Speaker
4
Remote sensor
5
Press a button on the remote control pointing at the sensor
on the front of the product to perform the corresponding
function.
- Using other display devices in the same space as the remote
control of this product can cause the other display devices to
be inadvertently controlled.
| Reverse Side
IR /AMBIENT
SENSOR IN
HDMI IN 3
HDMI IN 2
HDMI IN 1
DP IN 3
(UHD 30Hz)
DP IN 2
(UHD 60Hz)
DP IN 1
(UHD 60Hz)
DVI IN / IR OUT RS232C OUT RS232C IN
MAGICINFO IN
USB RGB IN AUDIO OUT
RJ45
| Troubleshooting Guide
Issues Solutions
The screen keeps Check the cable connection between
switching on and off. the product and PC, and ensure the
connection is secure.
No Signal is displayed Check that the product is connected
on the screen. correctly with a cable.
Check that the device connected to the
product is powered on.
Not Optimum Mode is This message is displayed when a
displayed. signal from the graphics card exceeds
the product's maximum resolution and
frequency.
Refer to the Standard Signal Mode Table
and set the maximum resolution and
frequency according to the product
specifications.
The images on the Check the cable connection to the
screen look distorted. product.
The screen is not clear. Adjust Coarse and Fine.
The screen is blurry.
Remove any accessories (video extension
cable, etc) and try again.
Set the resolution and frequency to the
recommended level.
The screen appears Check that the resolution and frequency
unstable and shaky. of the PC and graphics card are set within
a range compatible with the product.
There are shadows or
Then, change the screen settings if
ghost images left on
required by referring to the Additional
the screen.
Information on the product menu and the
Standard Signal Mode Table.
Supplies power to the external sensor board or receives the light
1
sensor signal.
Connects to a source device using a HDMI cable or HDMI-DVI
2
cable.
Connects to a PC using a DP cable.
3
- Obtain sharp picture quality when viewing UHD content at 30 Hz.
- The recommended resolution for the DP IN 3 (UHD 30Hz) port
is 3840 x 2160 @ 30 Hz. The resolution can be changed to the
optimal resolution of 3840 x 2160 @ 30 Hz, if required.
Connects to a PC using a DP cable.
4
- Obtain sharp picture quality when viewing UHD content at 60 Hz.
DVI IN: Connects to a source device using a DVI cable or HDMI-
5
DVI cable.
MAGICINFO IN: To use MagicInfo, make sure to connect the DP-
DVI cable.
Connects to MDC using a LAN cable.
6
Receives the remote control signal via the external sensor board
7
and outputs the signal via LOOP OUT.
Connects to MDC using an RS232C adapter.
8
Connects to a USB device when upgrading software.
9
Connects to a source device using a D-SUB cable.
0
RGB / DVI /
HDMI /
AUDIO IN
Connects to the audio of a source device.
!
Receives sound from a PC via an audio cable.
@
Issues Solutions
The screen is too
bright. Adjust Brightness and Contrast.
The screen is too dark.
There is no image on The product is in power-saving mode.
the screen and the
Press any key on the keyboard or move
power LED blinks
the mouse to return to the previous
every 0.5 to 1 second.
screen.
There is no sound. Check the connection of the audio cable
or adjust the volume.
Check the volume.
The volume is too low. Adjust the volume.
If the volume is still low after turning
it up to the maximum level, adjust the
volume on your PC sound card or software
programme.
The remote control Make sure that the batteries are correctly
does not work. in place (+/-).
Check if the batteries are flat.
Check for power failure.
Make sure that the power cord is
connected.
Check for any special lighting or neon
signs switched on in the vicinity.
