Panasonic WV-CF5S Instructions

Before attempting to connect or operate this product,
please read these instructions carefully
and save this manual for future use.
Features

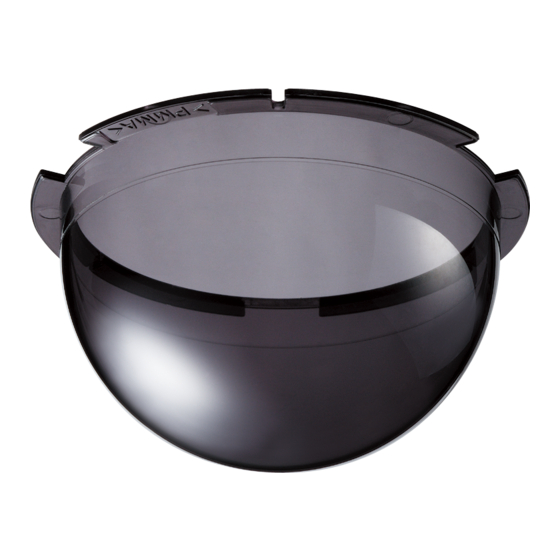

The WV-CF5S is the smoke type dome cover dedicated to the Panasonic network camera
WV-CF284.
Installations
Please read the operating instructions for the camera as well.
1. Detach the enclosure from the camera.
q Remove the dome cover fixing
screw (M3, step screw).
w Rotate the dome cover counter-
clockwise.
Enclosure
w
q
Remove the fixing
screw.
* The fixing screw is not
tightened at the factory.
The fixing screw is ship-
ped as the standard ac-
cessory of the camera.
WV-CF5S
Model No.
2. Detach the dome cover and the inner
dome from the camera.
Bend the enclosure to release the three
stoppers on the enclosure one by one.
Release the three
stoppers and push
the dome cover inside.
Dome Cover
Push
