- Page 1 MITSUBISHI ELECTRIC DT1151 Installation Manual English MA00856 2007-02...

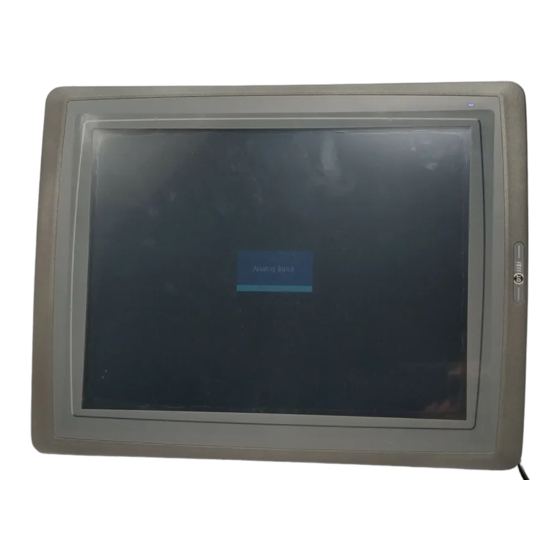

- Page 2 DT1151 Installation Manual Foreword The DT1151 industrial monitor is a TFT-LCD touch screen monitor, designed to be mounted in a cabinet and connected to an industrial PC. The monitor is optimized for a maximum resolution of 1024 x 768 pixels when the full display area of the module is used.
-
Page 3: Table Of Contents
Operation Messages ..............14 Video Input Timing..............15 Audio Support ................15 Calibrate the Touch Screen ............15 4 Chemical Resistance ................17 Metal Casing................17 Touch Screen and Overlay ............18 5 Drawings ....................23 DT1151 Outline ............... 23 Mitsubishi Electric, MA00856... - Page 4 Contents Mitsubishi Electric, MA00856...
-
Page 5: Safety Precautions
– The supplier neither guarantees that the monitor is suitable for your particu- lar application, nor assumes responsibility for your product design, installa- tion or operation. Mitsubishi Electric, MA00856... -
Page 6: During Use
– Clean the display and surrounding front cover with a soft cloth and mild de- tergent. Dismantling and Scrapping – The monitor or parts thereof shall be recycled according to local regulations. – The following components contain substances that might be hazardous to health and the environment: electrolytic capacitor and display. Mitsubishi Electric, MA00856... -
Page 7: Installation
Installation Installation Space Requirements Installation plate thickness: 1.5 - 9.0 mm (0.06 - 0.35 inch) Space requirements when installing DT1151: 50 mm (2.0 inch) 304 mm (11.97 inch) 45 mm (1.77 inch) 25 mm 25 mm (1.0 inch) (1.0 inch) 50 mm (2.0 inch) - Page 8 2. Place the panel cut out where the monitor is to be situated, draw along the outer sides of the holes and cut according to the markings. 3. Secure the monitor in position, using all the fastening holes and the pro- vided brackets and screws: x 14 0.5 - 1.0 Nm Mitsubishi Electric, MA00856...
- Page 9 If condensation forms, ensure that the monitor is dry be- fore connecting it to the power outlet. 5. Carefully remove the laminated film over the monitor display, to avoid static electricity that could damage the monitor. Mitsubishi Electric, MA00856...
- Page 10 Installation Mitsubishi Electric, MA00856...
-
Page 11: Technical Data
-20 ° to +70 °C Storage temperature Relative humidity 5 - 85% non-condensed The monitor conforms with the essential protection requirements of the directive 2004/108/EC. Noise tested according to EN61000-6-3 emission and EN61000-6-2 immunity. * See section 4 Chemical Resistance Mitsubishi Electric, MA00856... -
Page 12: The On Screen Display Menu
Opens the OSD menu and works as Select and Deselect button. Down Arrow Return or Exit in the OSD menu. Automatic display configuration Decrease/left key Audio decrease Increase/right key Audio increase VGA/DVI Source select (VGA or DVI) Power Turns on/off the monitor. Mitsubishi Electric, MA00856... - Page 13 Adjust sharpness of pictures in 5 levels Exit Exit to main menu Main Menu Sub Menu Function Function Auto Auto configuration of geometry. Adjust Clock and Phase are adjusted and position is centered Auto Color Automatic color adjustment Exit Exit to main menu Mitsubishi Electric, MA00856...
-
Page 14: Operation Messages
Self diagnostics (analog RGB mode): No input signal after power-on with power switch. The message will disappear after 10 seconds of activity of input signal. NO SUPPORT Out of Range: The input signal exceeds the supported range. Mitsubishi Electric, MA00856... -
Page 15: Video Input Timing
The industrial monitor has a built in touch screen. This is not operational when shipped from the supplier and must be installed. Instructions and drivers for in- stallation of the touch screen function are available at: www.mitsubishi-automation.com www.meau.com Mitsubishi Electric, MA00856... - Page 16 Technical Data Mitsubishi Electric, MA00856...
-
Page 17: Chemical Resistance
Ethanol 99.5% denaturalized Lactic acid 10% Urea saturated FAM-Normal petrol Sodium di-chromate Hydro peroxide 3% saturated Alcohol 95% Caustic soda 5% Acetic acid 10% Phosphoric acid 43% Sodium hypo chlorite Alu-cleaner solution Glycol Sodium carbonate 10% Industrial petrol Sodium chloride 20% Mitsubishi Electric, MA00856... -
Page 18: Touch Screen And Overlay
Dioctyl Phthalate Caustic soda <40% Paraffin oil Sodium carbonate Hydrogen peroxide <25% Blown castor oil Petrol Alkalicarbonate Silicone oil Teepol Bichromate Turpentine substitute Water Diesel oil Univeral brake fluid Sea water Acetonitrile Decon Sodium bisulphate Aviation fuel Mitsubishi Electric, MA00856... - Page 19 4.2.2 Touch Screen Surface The touch screen surface on the monitor withstands exposure to the following solvents without visible change: Solvents Time Acetone 10 minutes Isopropanol 10 minutes Toluene 5 hours Mitsubishi Electric, MA00856...
- Page 20 Dioctyl Phthalate Caustic soda <40% Paraffin oil Sodium carbonate Hydrogen peroxide <25% Blown castor oil Petrol Alkalicarbonate Silicone oil Teepol Bichromate Turpentine substitute Water Diesel oil Univeral brake fluid Sea water Acetonitrile Decon Sodium bisulphate Aviation fuel Mitsubishi Electric, MA00856...
- Page 21 Very slight discoloration was noted under critical viewing conditions with the following materials: Tomato juice Tomato ketchup Lemon juice Mustard Outdoor Use In common with all polyester based films Autoflex EB is not suitable for use in conditions of long term exposure to direct sunlight. Mitsubishi Electric, MA00856...
- Page 22 Chemical Resistance Mitsubishi Electric, MA00856...
-
Page 23: Drawings
Drawings Drawings DT1151 Outline Mitsubishi Electric, MA00856... - Page 24 Drawings Mitsubishi Electric, MA00856...
