Installation
Instructions
If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737)
or visit our website at: GEAppliances.com. In Canada, visit GEAppliances.ca or call 800.561.3344.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT
instructions for local inspector's use.
IMPORTANT
codes and ordinances.
Note to Installer – Be sure to leave these
instructions with the Consumer.
Note to Consumer – Keep these instructions for
future reference.
Skill level – Installation of this vent hood requires
basic mechanical and electrical skills.
Completion time – Approximately 1 to 3 hours
Proper installation is the responsibility of the
installer.
Product failure due to improper installation is not
covered under the Warranty.
Due to the weight and size of these
vent hoods and to reduce the risk of personal injury
or damage to the product, TWO PEOPLE ARE
REQUIRED FOR PROPER INSTALLATION.
FOR YOUR SAFETY
Before beginning the installation,
switch power off at service panel and lock the
service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
49-2000930 Rev. 1
— Save these
— Observe all governing

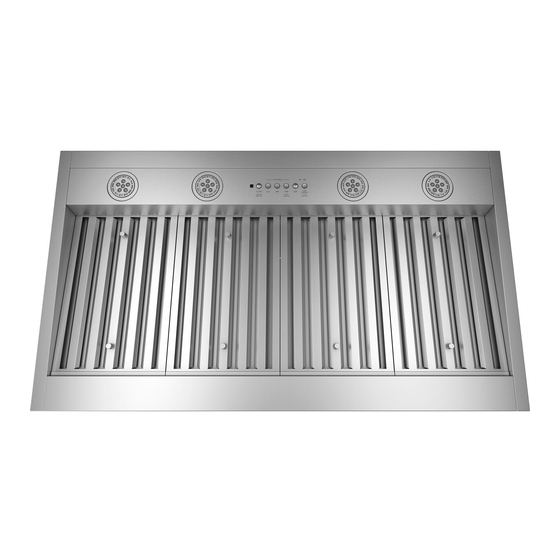

Custom Insert Hood
UVC9420, UVC9480
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be
done by qualified person(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
B. Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment
manufacturer's guidelines and safety standards
such as those published by the National Fire
Protection Association (NFPA), the American
Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE) and the local
code authorities.
C. When cutting or drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
D. Ducted fans must always be vented to the
outdoors.
E. Turn off breaker to adjacent rooms while working.
TO REDUCE THE RISK OF FIRE,
USE ONLY METAL DUCT WORK.
Disconnect all electrical power at
the main circuit breaker or fuse box before installing.
9
Advertisement
Table of Contents
Related Manuals for Haier GE UVC9420
Summary of Contents for Haier GE UVC9420
- Page 1 Installation Custom Insert Hood Instructions UVC9420, UVC9480 If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our website at: GEAppliances.com. In Canada, visit GEAppliances.ca or call 800.561.3344. BEFORE YOU BEGIN TO REDUCE THE RISK OF FIRE, Read these instructions completely and ELECTRIC SHOCK OR INJURY TO PERSONS, carefully.
-
Page 2: Product Dimensions
Installation Preparation PRODUCT DIMENSIONS 7 5/8" 28 7/16" 15" 12 1/2" A" Design varies by model 21 7/8" Model UVC9420 39-1/2" UVC9480 45-3/4" ADVANCE PLANNING Duct Install Planning Vent system can terminate either through the roof needed and installed immediately above the hood. the ceiling. -
Page 3: Installation Clearances
Installation Preparation INSTALLATION CLEARANCES This vent hood must be installed between the 30" required minimum and 36" recommended maximum installed over an island. above the cooking surface. instructions for product-specific clearances. NOTE: Installation height should be measured from 17" min. the cooking surface to the bottom edge of the cabinet 12-1/2"... -
Page 4: Cabinet Structure
Installation Preparation - UVC 9420 CABINET STRUCTURE CUSTOM CABINET FRAME The custom canopy or cabinet must have a It is required two 2 x 4 horizontal studs separated rectangular opening to accommodate the custom by 39” as part of the cabinet. They must be firmly hood insert by itself. - Page 5 Installation Preparation - UVC 9480 CABINET STRUCTURE CUSTOM CABINET FRAME The custom canopy or cabinet must have a It is required two 2 x 4 horizontal studs separated rectangular opening to accommodate the custom by 39” as part of the cabinet. They must be firmly hood insert by itself.
-
Page 6: Parts Provided
Installation Preparation TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED) Needle-nose pliers Aluminized Electric drill and duct tape appropriate bits Pencil and tape measure Step ladder Safety glasses Level 10" ducting and Flashlight caps as needed Tin snips Wire cutter/ Phillips and flat-blade Strain relief for UL listed wire nuts Gloves... -
Page 7: Power Supply
Installation Preparation - UVC9420 and UVC9480 POWER SUPPLY PREPARE THE HOOD FOR INSTALLATION IMPORTANT – (Please read carefully) NOTE: For transportation purposes the motor assembly is secured by 2 brackets. They must be FOR PERSONAL SAFETY, THIS APPLIANCE removed prior to installation and discarded. MUST BE PROPERLY GROUNDED. - Page 8 Installation - UVC 9420 STEP 1 REMOVE MOTOR STEP 2 CONNECT ELECTRICAL ASSEMBLY FROM HOOD CANOPY CABLES Verify that power is turned off at the source. 1. Remove the metal lid by removing the 3 screws and allowing access to connectors. If house wiring is not 2-wire with a ground wire, an electrician will need to convert Screws...
- Page 9 Installation - UVC 9420 STEP 3 INSTALL HOOD CANOPY TO THE CABINET 1. Confirm the damper is in place in the hood exhaust opening, see previous page for instructions. 2. Tuck the house wiring out of the way. 3. Push the hood canopy straight up through the cutout opening until the temporary locking clips engage.
- Page 10 Installation - UVC 9480 STEP 1 REMOVE MOTOR STEP 2 DAMPER AND SIDE PANEL ASSEMBLY FROM HOOD CANOPY INSTALLATION 1. Remove the metal lid by removing the 3 screws 1. Install the damper into the bottom of the exhaust and allowing access to connectors. fan opening using 2 screws provided (D).
- Page 11 Installation - UVC 9480 STEP 3 CONNECT ELECTRICAL STEP 4 INSTALL HOOD CANOPY CABLES TO THE CABINET Verify that power is turned off at the source. 1. Confirm the damper is in place in the hood exhaust opening, see previous page for instructions.
- Page 12 Installation - UVC 9420 and 9480 STEP 5 INSTALL BLOWER MOTOR ASSEMBLY - UVC-9420 AND 9480 METHOD 1 1. Lift the motor assembly on the insert canopy. 3. Tighten the 4 screws (removed earlier) - see Remove Motor Assembly from Hood Canopy section.
- Page 13 Installation - UVC 9420 and 9480 STEP 5 INSTALL BLOWER MOTOR ASSEMBLY - UVC 9420 AND 9480 METHOD 2 (ALTERNATIVE) The motors can also be installed separately to help manage the weight of the 2 motors. 1. See see Remove Motor Assembly from Hood 5.
-
Page 14: Step 6 Finalize Installation
Installation - UVC 9420 and 9480 STEP 6 FINALIZE INSTALLATION 1. Insert filters, see the Filters section. 2. Check operation of the lights and blower. Refer to Using the Hood sections for operating instructions. 49-2000930 Rev. 1... - Page 15 Troubleshooting tips ... Before you call for service Save time and money! Review the charts on the following pages first and you may not need to call for service. Problem Possible Cause What To Do Fan/Light does not A house fuse may be blown or a circuit Replace fuse or reset circuit breaker.
- Page 16 Notes 49-2000930 Rev. 1...
- Page 17 Notes 49-2000930 Rev. 1...
- Page 18 This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are, consult your local or provincial consumer affairs office. Garante: GE Appliances, a Haier company Garante en Canadá: MC Commercial...
- Page 19 Accessories Looking For Something More? GE Appliances offers a variety of accessories to improve your cooking and maintenance experiences! Refer to the Consumer Support page for phone numbers and website information. The following products and more are available: Parts Power Cord Kit Make-up Air Kit Charcoal Filter Recirculation Kit...
- Page 20 Consumer Support GE Appliances Website Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience.
