Sealey CP20VGRG Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. INTRODUCTION
Maintain the grease gun and battery in good condition. Check moving parts alignment on a regular basis.
9
Replace or repair damaged parts. Use an authorised service agent and recommended parts only. Unauthorised parts may be
9
dangerous and will invalidate the warranty.
Ensure the grease gun is switched off before installing the battery pack.
9
Ensure battery pack is correctly inserted into the drill handle and latched in place before attempting to switch on the grease gun.
9
Keep the grease gun and charger clean for best and safest performance.
9
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain long hair.
9
Avoid unintentional starting.
9
Wear approved safety eye protection (standard spectacles are not adequate).
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-skid shoes.
9
Wear appropriate protective clothing. When handling lubricants refer to manufacturer's instructions and conform to local regulations.
9
Be aware that this grease gun does not need to be plugged into the mains power.
9
Keep the switch in the off position until the grease gun is required for use.
9
Keep children and unauthorised persons away from the working area.
9
DO NOT use the grease gun where there are flammable liquids, solids or gases, such as paint solvents, etc.
8
DO NOT allow children to operate the grease gun.
8
DO NOT allow unauthorised persons to operate the gun.
8
DO NOT operate the grease gun if any parts are missing as this may cause failure and/or personal injury.
8
DO NOT hold unsecured work piece in your hand.
8
WARNING! Disengage the grease gun from the battery before changing accessories, servicing or performing and maintenance.
8
Maintain gun in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Use the gun in a suitable working area. Keep area clean and tidy and free from unrelated materials and ensure there is adequate lighting.
9
Dispose of waste grease in accordance with local authority regulations.
9
When not in use ensure the battery is removed.
9
WARNING! DO NOT tamper with or open pump unit. Doing so will invalidate your warranty.
‰
DO NOT point grease gun at yourself or other persons or animals.
8
DO NOT pull the grease gun unit by the hose.
8
When not in use, clean the unit and store in a dry, safe, childproof area.
8
2. INTRODUCTION

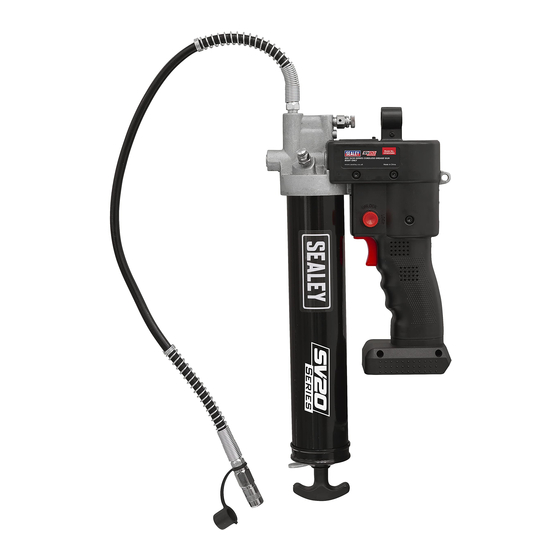

High power, professional, cordless grease gun, developing 8000psi. Ideal for in-field lubrication where power and speed are required.
Suitable for screw-type and standard 400g cartridges, manual or bulk filling. Features LCD battery condition indicator, air bleed and
heavy-duty aluminium pressure head. Requires compatible 20V battery and mains charger, sold separately.
3. SPECFICATION
Model No:.....................................................................CP20VGRG
Battery ...........................................................................Compatible with CP20VBP2, CP20VBP4, CP20VBP6
Flow Rate:......................................................................100g/min
Hose Length:..................................................................700mm
Mains charger ................................................................CP20VMC
Pressure:.........................................................................8000psi
© Jack Sealey Limited
20V SV20 SERIES CORDLESS GREASE GUN-
BODY ONLY
MODEL NO:
Wear protective
gloves
Original Language Version
CP20VGRG
SPECIFICATION
CP20VGRG Issue:1 06/10/22
