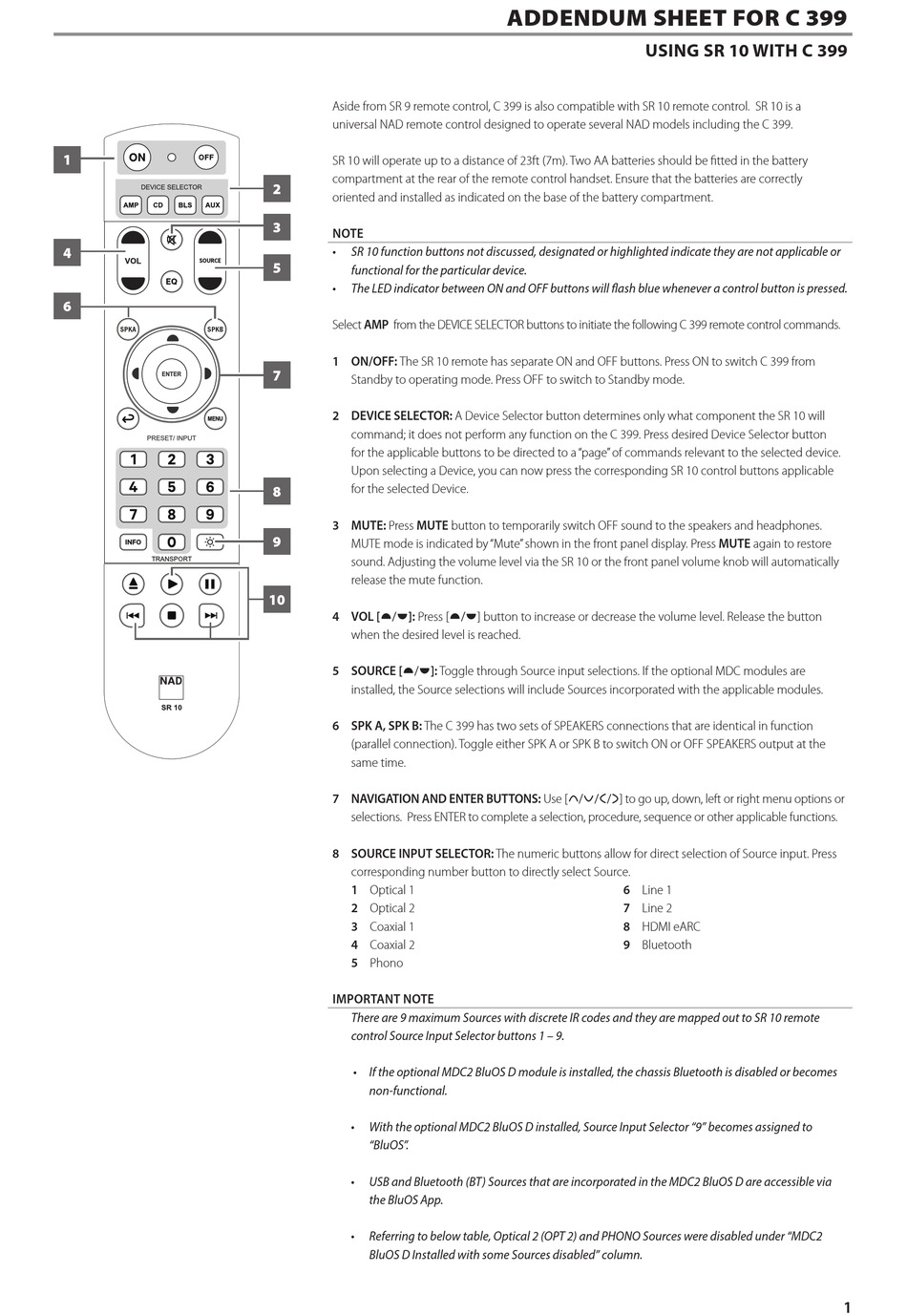

NAD C 399 Addendum Sheet

1
4
6
Aside from SR 9 remote control, C 399 is also compatible with SR 10 remote control. SR 10 is a
universal NAD remote control designed to operate several NAD models including the C 399.
SR 10 will operate up to a distance of 23ft (7m). Two AA batteries should be fitted in the battery
compartment at the rear of the remote control handset. Ensure that the batteries are correctly
2
oriented and installed as indicated on the base of the battery compartment.
3
NOTE
• SR 10 function buttons not discussed, designated or highlighted indicate they are not applicable or
5
functional for the particular device.
• The LED indicator between ON and OFF buttons will flash blue whenever a control button is pressed.
Select AMP from the DEVICE SELECTOR buttons to initiate the following C 399 remote control commands.
1 ON/OFF: The SR 10 remote has separate ON and OFF buttons. Press ON to switch C 399 from
7
Standby to operating mode. Press OFF to switch to Standby mode.
2 DEVICE SELECTOR: A Device Selector button determines only what component the SR 10 will
command; it does not perform any function on the C 399. Press desired Device Selector button
for the applicable buttons to be directed to a "page" of commands relevant to the selected device.
Upon selecting a Device, you can now press the corresponding SR 10 control buttons applicable
for the selected Device.
8
3 MUTE: Press MUTE button to temporarily switch OFF sound to the speakers and headphones.
9
MUTE mode is indicated by "Mute" shown in the front panel display. Press MUTE again to restore
sound. Adjusting the volume level via the SR 10 or the front panel volume knob will automatically
release the mute function.
10
4 VOL [D/F]: Press [D/F] button to increase or decrease the volume level. Release the button
when the desired level is reached.
5 SOURCE [D/F]: Toggle through Source input selections. If the optional MDC modules are
installed, the Source selections will include Sources incorporated with the applicable modules.
6 SPK A, SPK B: The C 399 has two sets of SPEAKERS connections that are identical in function
(parallel connection). Toggle either SPK A or SPK B to switch ON or OFF SPEAKERS output at the
same time.
7 NAVIGATION AND ENTER BUTTONS: Use [d/f/a/s] to go up, down, left or right menu options or
selections. Press ENTER to complete a selection, procedure, sequence or other applicable functions.
8 SOURCE INPUT SELECTOR: The numeric buttons allow for direct selection of Source input. Press
corresponding number button to directly select Source.
1 Optical 1
2 Optical 2
3 Coaxial 1
4 Coaxial 2
5 Phono
IMPORTANT NOTE
There are 9 maximum Sources with discrete IR codes and they are mapped out to SR 10 remote
control Source Input Selector buttons 1 – 9.
• If the optional MDC2 BluOS D module is installed, the chassis Bluetooth is disabled or becomes
non-functional.
• With the optional MDC2 BluOS D installed, Source Input Selector "9" becomes assigned to
"BluOS".
• USB and Bluetooth (BT) Sources that are incorporated in the MDC2 BluOS D are accessible via
the BluOS App.
• Referring to below table, Optical 2 (OPT 2) and PHONO Sources were disabled under "MDC2
BluOS D Installed with some Sources disabled" column.
ADDENDUM SHEET FOR C 399
USING SR 10 WITH C 399
6 Line 1
7 Line 2
8 HDMI eARC
9 Bluetooth
