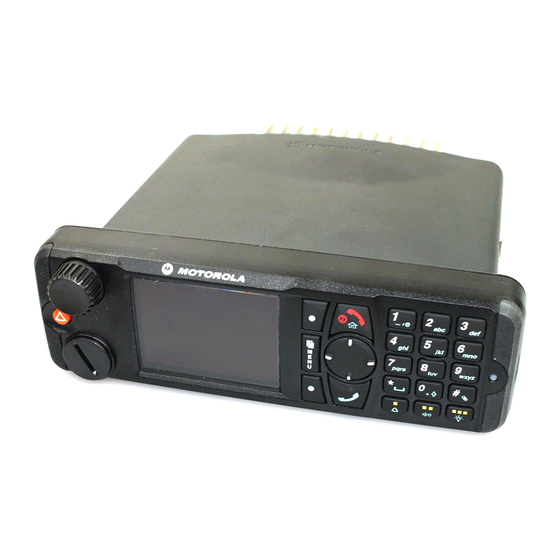

Motorola MTM800 Installation Manual
Enhanced tetra mobile terminal
Hide thumbs
Also See for MTM800:
- Feature user manual (382 pages) ,
- Product information manual (290 pages) ,
- Manual (254 pages)
Related Manuals for Motorola MTM800
Summary of Contents for Motorola MTM800
- Page 1 MTM800 Enhanced TETRA Mobile Terminal Installation Manual Publication Number 6866539D30-L @6866539D30@ When printed by Motorola...
- Page 2 MTM800 Enhanced Mobile Terminal Installation Manual INSTALLATION Remote Mount Installation Remote Mount Cable Transceiver Toroid 10-Pin Connector 10-Pin Connector Flex Remote Head Enhanced Remote Mount Enhanced Control Head Data Expansion Head Enhanced Toroid Figure 11 Remote Mount Installation with Remote Head Enhanced/Data Expansion Head Enhanced...
- Page 3 INSTALLATION MTM800 Enhanced Mobile Terminal Installation Manual Installing the Remote Mount Enhanced Control Head onto the Remote Mount Trunnion Slide the Remote Mount Enhanced Control Head onto the mounting trunnion until it snaps into place. Tighten the screws at both sides of the trunnion. After a few turns, tilt the control head for an optimum view of the display.
