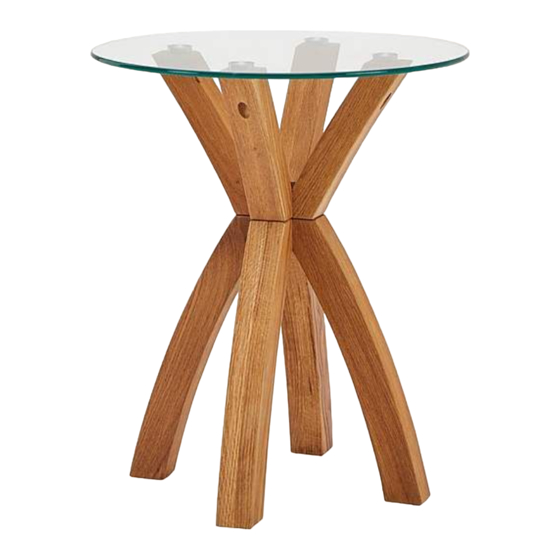

- Page 1 XAVI SIDE TABLE INSTRUCTIONS 50kg 30 MINS 2 PERSON ASSEMBLY MAX LOAD MEDIUM DIFFICULTY www.dunelm.com...
- Page 2 Dear Customer Thank you for purchasing your new piece of furniture from Dunelm. We put a lot of effort in the design and construction of our products to ensure they set the standard for quality, durability and ease of assembly.
- Page 3 Component parts supplied Description Dimensions Visual Bottom Leg 41.5x6.5x5cm Top Leg 25.5x5x5cm Connector 5x5x9.5cm Wood Block 5x5x1cm 50x50x8cm www.dunelm.com...
- Page 4 Parts and fittings Fixtures and fittings supplied (actual size) Description Dimensions Visual Bolt M8x25mm Bolt M6x16mm Fixtures and fittings supplied (not to scale) Description Dimensions Visual Spring washer Flat washer Allen key Allen key Footpad...
- Page 5 Exploded view www.dunelm.com...
- Page 6 Attach footpad(G) to bottom leg(1), Fix bolt(B) to bottom leg(1) and top leg(2) ,Then tighten the bolt with allen key(F) provided to 70% of the thread. Bx16 Step 2: Attach top leg(2) to connector(3) by inserting bolt into groove of connector. www.dunelm.com...
- Page 7 Place top leg(2) upside down(After step2 assembly). Attach top leg(2) to underneath of glass top(5) and align the holes. Fix through hole using bolt(A),spring washer(C), flat washer(D). Then tighten all bolts with allen key(E) (F) provided to 100% of the thread. 100% www.dunelm.com...
- Page 8 Attach bottom leg(1) to connector(3) by inserting bolt into groove of connector. Then tighten all bolts with allen key(F) provided to 100% of the thread. Step 5: Place the table on the ground and put wood block(4) on top of connector. www.dunelm.com...
- Page 9 Assembly instructions 500mm 600mm www.dunelm.com...
- Page 10 If the glass is chipped or broken, stop using the Do not strike the glass with hard or pointed items. product and consult Dunelm. Do not use abrasive cleaners on the glass as these may scratch and damage the glass.
