Sealey SA654 Instructions For Use

Item Part No
Item Part No Description
1 SA654/01 MOTOR HOUSING
20 SA654/20
2 SA654/02 VALVE BUSHING
21 SA654/21
3 SA654/03 LEVER PIN
22 SA654/22
4 SA654/04 VALVE STEM
23 SA654/23
5 SA654/05 O-RING
24 SA654/24
6 SA654/06 O-RING
25 SA654/25
7 SA654/07 SPRING
26 SA654/26
8 SA654/08 REGULATOR
27 SA654/27
9 SA654/09 O-RING
28 SA654/28
10 SA654/10 O-RING
29 SA654/29
11 SA654/11 VALVE SCREW
30 SA654/30
12 SA654/12 THROTTLE LEVER
31 SA654/31
13 SA654/13 STOP ROD
32 SA654/32
14 SA654/14 SPRING
33 SA654/33
15 SA654/15 PIN
34 SA654/34
16 SA654/16 SILENCER
17 SA654/17 DEFLECTOR
18 SA654/18 AIR INLET
19 SA654/19 BALL BEARING
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date. proof of which will be required for any claim. INFORMATION: Call us for a copy of our latest catalogue
and promotions on 01284 757525 and leave your full name and address including your postcode.
Sole UK Distributor, Sealey Group, Bury St. Edmunds, Suffolk.
01284 757500
Description
Original Date: 010700
REAR END PLATE
PIN Issue Date: 010700
CYLINDER
Version No: 0
ROTOR BLADE
Date Modified: N/A
ROTOR
ROTOR SPACER
FRONT END PLATE
BALL BEARING
LOCK NUT
HOUSING CAP
SPINDLE
COLLET
COLLET NUT
SPANNER WRENCH (17mm)
SPANNER WRENCH (13mm)
01284 703534
E-mail: sales@sealey.co.uk

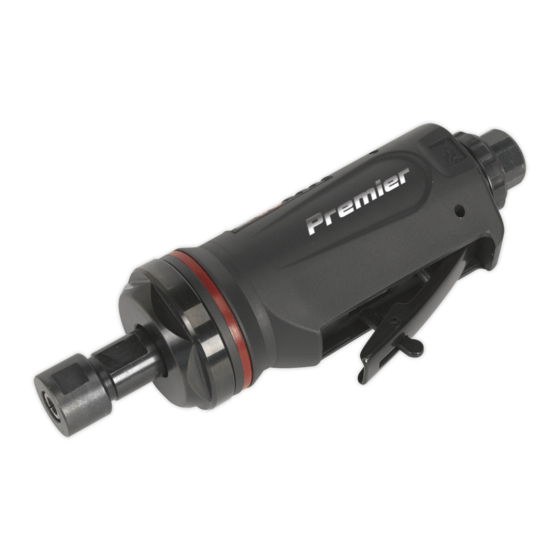

AIR DIE GRINDER
INSTRUCTIONS FOR
Model:
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
3 Follow all workshop health & safety rules, regulations, and conditions when using tool.
p WARNING! Disconnect from air supply before changing grinding bit or servicing.
3 Maintain die grinder in good condition and replace any damaged or worn parts. Use
genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
p WARNING! Check correct air pressure is maintained and not exceeded. We recommended 90psi.
3 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
p WARNING! Before each use check grinding bit is secure, and the bit is not worn or damaged,
if damaged, replace immediately.
3 Ensure replacement grinding bits are not damaged (cracks, deformations or splinters etc).
3 Always use the correct grinding bit suitable for the material being ground. Ensure the maximum
speed specification of the bit is higher than that indicated on the machine data plate.
p WARNING! Always wear approved eye or face protection when operating the
3 Use breathing protection in accordance with COSHH regulations if fumes or dust pose a hazard.
Wear ear defenders and gloves if necessary.
3 Keep hands and body clear of the workpiece when operating the
3 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Secure non stable work piece with a clamp, vice or other adequate holding device.
3 Keep children and non essential persons away from the working area.
3
3 Avoid subjecting grinding bit to excessive strain, always ease grinding bit against workpiece
(a harsh impact may break the bit). Maintain a controlled adequate progression.
DO NOT get the die grinder wet or use in damp or wet locations.
DO NOT hold the workpiece by hand. Use clamps or a vice to secure the workpiece.
8
7 DO NOT use the die grinder for a task it is not designed to perform.
8
p WARNING! DO NOT use die grinder if damaged or faulty. Contact your local service agent.
7 DO NOT use die grinder unless you have been instructed in its use by a qualified person.
7 DO NOT carry the die grinder by the air hose, or yank the hose from the air supply.
7 DO NOT direct air from the air hose at yourself or others.
p WARNING! DO NOT grind any materials containing asbestos.
7 DO NOT turn the die grinder on whilst the
7 DO NOT use die grinder where there are flammable liquids, solids or gases such as paint
solvents, including waste wiping or cleaning rags etc as generated sparks may be dangerous.
7 DO NOT touch the workpiece close to the ground surface as it will be very hot. Allow to cool.
7 DO NOT operate die grinder if you are tired, under the influence of alcohol, drugs or intoxicating medication.
3 When not in use disconnect from air supply and store in a safe, dry, childproof location.
SA654
die grinder.
die grinder.
grinding bit is in contact with the work piece.
SA654 - 0016 - (1) -010700
