Positioning

General Information

• The oven must be installed under an extraction canopy that meets AS 1668.2.
• Have a smooth, level floor which can bear the weight of the appliance at full load
• Have a room temperature above +4°C with a maximum humidity of 70%;
• Comply with the regulations in force in terms of safety in the workplace and the systems;
• Not contain potentially explosive materials or substances;
• Be dedicated to food preparation. In addition, a gas-fired appliance requires, by law, rooms with a surface area and ventilation that are
suitable for the power of the oven and that have a means of externally evacuating flue gases
• Please consult national and local standards to ensure that your unit is positioned and ventilated in accordance with any existing
requirements
• Do not allow cables or other items to rest/hang over the exhaust vents
• Do not install unit under a bench

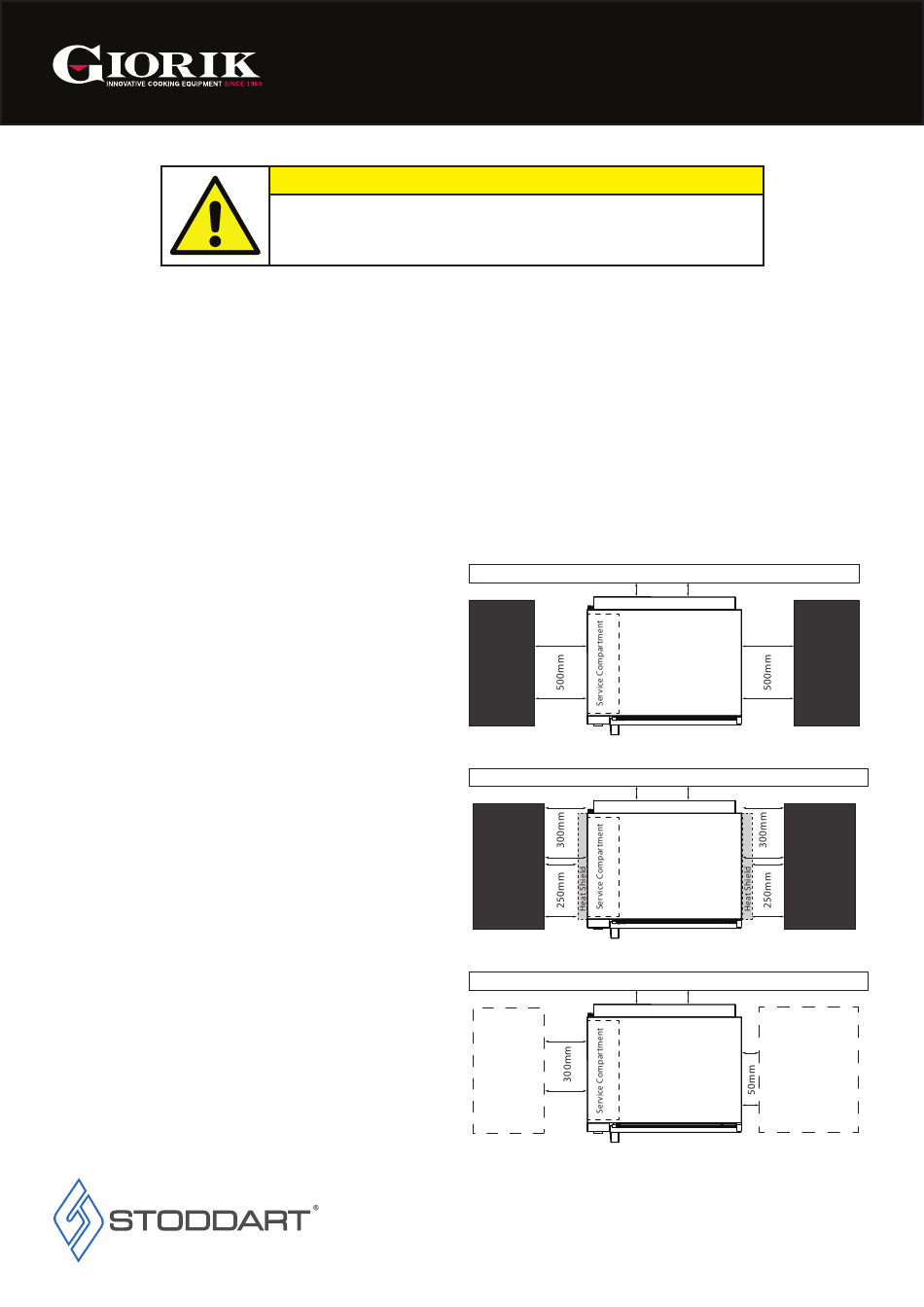

Spacing

The sides of the Combi oven must have the following minimum
clearances:
Heat Source
500mm clearance from another heat source, in order to protect the
oven components.
For distances under 500mm, it is mandatory for Stoddart heat
shields to be fitted (for a minimum distance of 50mm from the
surface of the oven). Failure to adhere to minimum clearances may
void the oven warranty.
Non-Heat Source
50mm clearance from a non-heat source to the surface of the
oven. Failure to adhere to minimum clearances may void the oven
warranty.
Note: The Movair ovens come in both Left and Right configurations.
Left configuration shown.
IMPORTANT
Do not install unit under a bench.
Under bench installation will void warranty
Heat Source
HEAT
SOURCE
Heat Source With Heat Shield
HEAT
SOURCE
Non - Heat Source
NON - HEAT
SOURCE
Page 3
Installation
WALL
50mm
HEAT
OVEN
SOURCE
WALL
50mm
HEAT
OVEN
SOURCE
WALL
50mm
OVEN
