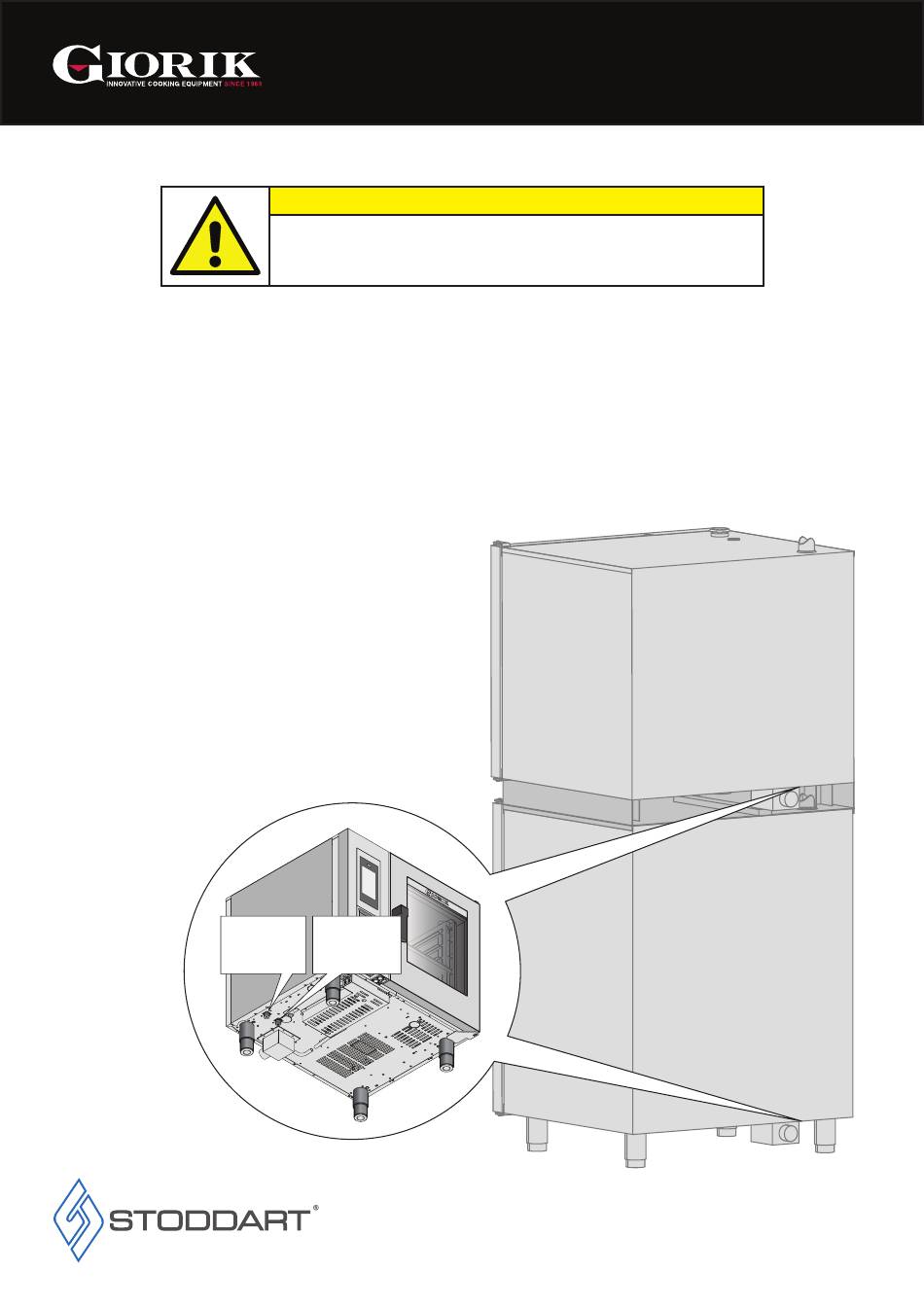

Water Connection

Stoddart Standard Filter

• Water connections are labelled on the oven
• Isolation valve must be installed at the water supply outlet
• Water Temperature:
Cold water connection - Min 10°C, Max 35°C
• Steam Generation:
The Combi oven requires filtered water supplied to its steam generation system. Water pressure must be 300-350 kPa at oven
connection. This is controlled with the supplied PLV
• Wash System:
The Combi oven requires unfiltered water supplied to its wash system.
Water pressure must be 300-350 kPa at oven connection. This is controlled with the supplied PLV
• Refer to the Stoddart Standard Filter user manual for filter setup
Supplied Components
(Plumbing Kit / Water Filter Kit)
A. 1 x BWT Filter
B. 1 x Dual Check Valve
C. 1 x 4 Way Manifold
D. 5 x 3/4" BSP To 3/8" Tube Connector
E. 2 x 1/2" BSP To 3/8" Tube Connector
F. 4 x 3/8" John Guest Stem Elbow
G. 3 x Pressure Limiting Valve
H. 1 x Nipple, 3/4" Male
I. 1 x 3/8 Tube (Water)
J. 21 x John Guest Locking Clip
K. 1 x John Guest T section
This oven must be installed in accordance with AS/NZS 3500.1
The Oven must be installed with the supplied Dual Check Valve,
Water Filter and Pressure Limiting Valves
Kpa
300-350
WASH
STEAM
SYSTEM GENERATION
INLET
INLET
IMPORTANT
Page 9
Installation
Due to continuous product research and development,
the information contained herein is subject to change without notice.
