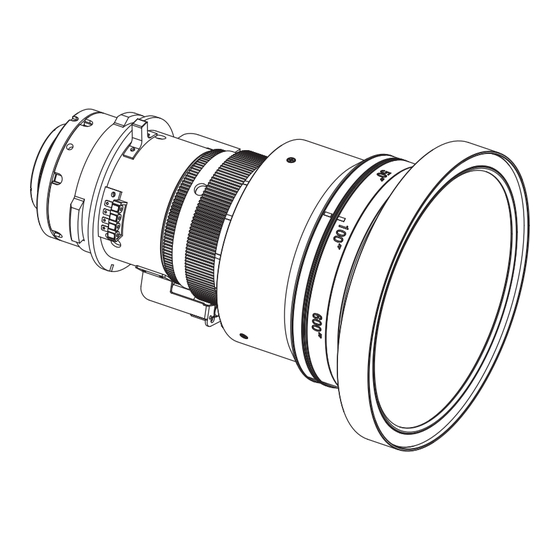

Panasonic ET-DLE105C Operating Instructions Manual

Zoom lens

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Thank you for purchasing this Panasonic product.

■ To ensure correct use of this lens, please read the operating instructions supplied

with the lens and the projector carefully.

■ Before using this product, be sure to read "Read this first!" (

■ Please save this manual for future use.

Operating Instructions

Zoom Lens 　　　　　　　　　

Model No.

Commercial Use

ET-DLE105C

ENGLISH

Page 3).



DPQX1116ZB

Table of Contents

Summary of Contents for Panasonic ET-DLE105C

Page 1 Commercial Use ET-DLE105C Model No. ENGLISH Thank you for purchasing this Panasonic product. ■ To ensure correct use of this lens, please read the operating instructions supplied with the lens and the projector carefully. ■ Before using this product, be sure to read “Read this first!” ( ...
Page 2: Table Of Contents
█ Contents Read this first! ..................3 Before Use.....................4 Attaching the Lens / Detaching the Lens ...........4 Before replacing the projection lens ............4 Attaching the Lens................... 5 Detaching the Lens ................. 6 Focus Adjustment ..................7 Projection relationships...............8 Adjustment range by the lens position shift (optical shift) ....10 Specifications ..................12 Dimensions ..................12 Dimensional relationship ............
Page 3: Read This First
Read this first! Always follow these precautions WARNING: Do not look at or place your skin into the light emitted from the lens while the projector is being used. Doing so can cause burns or loss of sight. z Strong light is emitted from the projector’s lens. Do not look at or place your hands directly into this light.
Page 4: Before Use
Before Use ■ Supported projectors PT-FRZ98C / PT-FRW93C / PT-FRX110C / PT-FRZ78C / PT-FRW73C / PT-FDZ97C / PT-FDW93C / PT-FDX110C / PT-FDZ88C / PT-FDW85C / PT-FDX92C / PT-FD605C / PT-FD601C Note z This manual omits the alphabets at the end of projector model numbers. z Models other than the above may also be supported.
Page 5: Attaching The Lens
Attaching the Lens / Detaching the Lens (continued) Attaching the Lens Attention z Before attaching the Projection Lens, remove the lens hole cover (only lens options models) and the two lens covers attached to the Projection Lens. Turn the lens mount cover counterclockwise to remove Lens Mount Cover Pass the rear of the zoom lens...
Page 6: Detaching The Lens
Attaching the Lens / Detaching the Lens (continued) Slot position Insert the tab on the lens Lens cover tab mount cover through the slot on the projector, and turn clockwise to secure lens mount cover. Detaching the Lens Turn the lens mount cover counterclockwise and remove Press the lens release button.
Page 7: Focus Adjustment
Attaching the Lens / Detaching the Lens (continued) Focus Adjustment The focus balance of the center of the projected image and that of the peripheral areas differs depending on the size of the image. This lens is equipped with a function for adjusting the peripheral focus balance. ■...
Page 8: Projection Relationships
Projection relationships The dimensional relationship between the screen and the projector is shown below. ■ Dimensional relationship diagram Projected image L (LW/LT) Screen L (LW/LT) (Unit: m) Dimension for L1 Projection lens Model No. (approximate value) PT-FRZ98C / PT-FRW93C / PT-FRX110C / PT-FRZ78C / PT-FRW73C / 0.088 PT-FDZ97C / PT-FDW93C / PT-FDX110C PT-FDZ88C / PT-FDW85C / PT-FDX92C / PT-FD605C / PT-FD601C...
Page 9 Projection relationships (continued) ■ Dimensional relationship For details on the projection distance (L), refer to “Projected image size and Projection distance” and “Projection distance formulas” in the Appendix. Note z For details on “Projected image size and Projection distance” for projector models other than the following, refer to “Setting up”...
Page 10: Adjustment Range By The Lens Position Shift (Optical Shift)
Adjustment range by the lens position shift (optical shift) Perform the lens position shift within the adjustment range. The focus may change when the lens position is shifted out of the adjustment range. This is because the movement of the lens is restricted to protect the optical parts. Projection position can be adjusted with the optical axis shift based on the home position in the respective range.
Page 11 Adjustment range by the lens position shift (optical shift) (continued) Projected image width H 0.1 H 0.1 H PT-FDZ97C Standard projection position Projected image width H 0.1 H 0.1 H PT-FDW93C Standard projection position Projected image width H 0.1 H 0.1 H PT-FDX110C Standard projection position...
Page 12: Specifications
Specifications F value 1.85 - 2.35 Focal Length (f) 14.7 mm (19/32") - 19.7 mm (25/32") Width 140 mm (5-1/2") Dimensions Height 140 mm (5-1/2") Depth 210 mm (8-9/32") Net Weight Approx. 1.2 k g (2.6 lb) Dimensions (Unit: mm) 210 (8-9/32") 12-ENGLISH...
Page 13 MEMO ENGLISH-13...
Page 14 GB/T 26572. ×: The amount of hazardous substances included in all homogeneous materials for the relevant part exceeds the limit specified in GB/T 26572. 日本福冈县福冈市博多区美野岛四丁目1番62号 https://panasonic.cn/ 2022 © 松下互联株式会社 2022版权所有 SS0217AM1042 -PS...
Page 15: Dimensional Relationship
附表 / Appendix ■ 投影关系尺寸 ■ Dimensional relationship 屏幕和投影机之间的尺寸关系显示如下。 The dimensional relationship between the screen and the projector is shown below. 投影画面 / Projected image L (LW/LT) 屏幕 / Screen L (LW/LT) 投影距离 / Projection distance 最小距离 / Minimum distance 最大距离...
Page 16 z 投影画面尺寸和投影距离 z Projected image size and Projection distance 提示 z 如果所使用投影机的型号在本说明书中未记载，请参阅投影机使用说明书的“设置”章节。 ☞ ☞ 此外，请务必检查屏幕的对焦尺寸 SD (m)，并使用“投影距离计算方法” （附表，第 6 页）确定投影距离 (L)。 Note z When using projector models other than the following, refer to “Setting up” in the operating instructions of the projector.
Page 17 z PT-FRZ98C / PT-FRZ78C / PT-FDZ97C / PT-FDZ88C （单位 / Unit : m）当屏幕宽高比为 16:10 时（WUXGA : 1920 × 1200）（投射率 : [1.0 - 1.3:1]） When the screen aspect ratio is 16:10 (WUXGA : 1920 × 1200) (Throw ratio : [1.0 - 1.3:1]) （适用于除...
Page 18 z PT-FRW93C / PT-FRW73C / PT-FDW93C / PT-FDW85C （单位 / U : m）当屏幕宽高比为 16:10 时（WXGA : 1280 × 800）（投射率 : [1.0 - 1.4:1]） When the screen aspect ratio is 16:10 (WXGA : 1280 × 800) (Throw ratio : [1.0 - 1.4:1]) （适用于除...
Page 19 z PT-FRX110C / PT-FDX110C / PT-FDX92C / PT-FD605C / PT-FD601C （单位 / U : m）当屏幕宽高比为 4:3 时（XGA ： 1024 × 768）（投射率 : [1.0 - 1.4:1]） When the screen aspect ratio is 4:3 (XGA : 1024 × 768) (Throw ratio : [1.0 - 1.4:1]) （适用于除...
Page 20 未列在上表中的安装尺寸，请使用下面的公式进行计算。请检查投影画面尺寸 SD (m)，使用下面的公式确定投影距离 (L)。 Setting-up dimensions which are not given in the above table can be calculated using the formulas below. Check the projected image size SD (m) and use the following formula to determine projection distance (L). z 投影距离计算方法 z Projection distance formulas 下表中的尺寸可能略有误差。...
